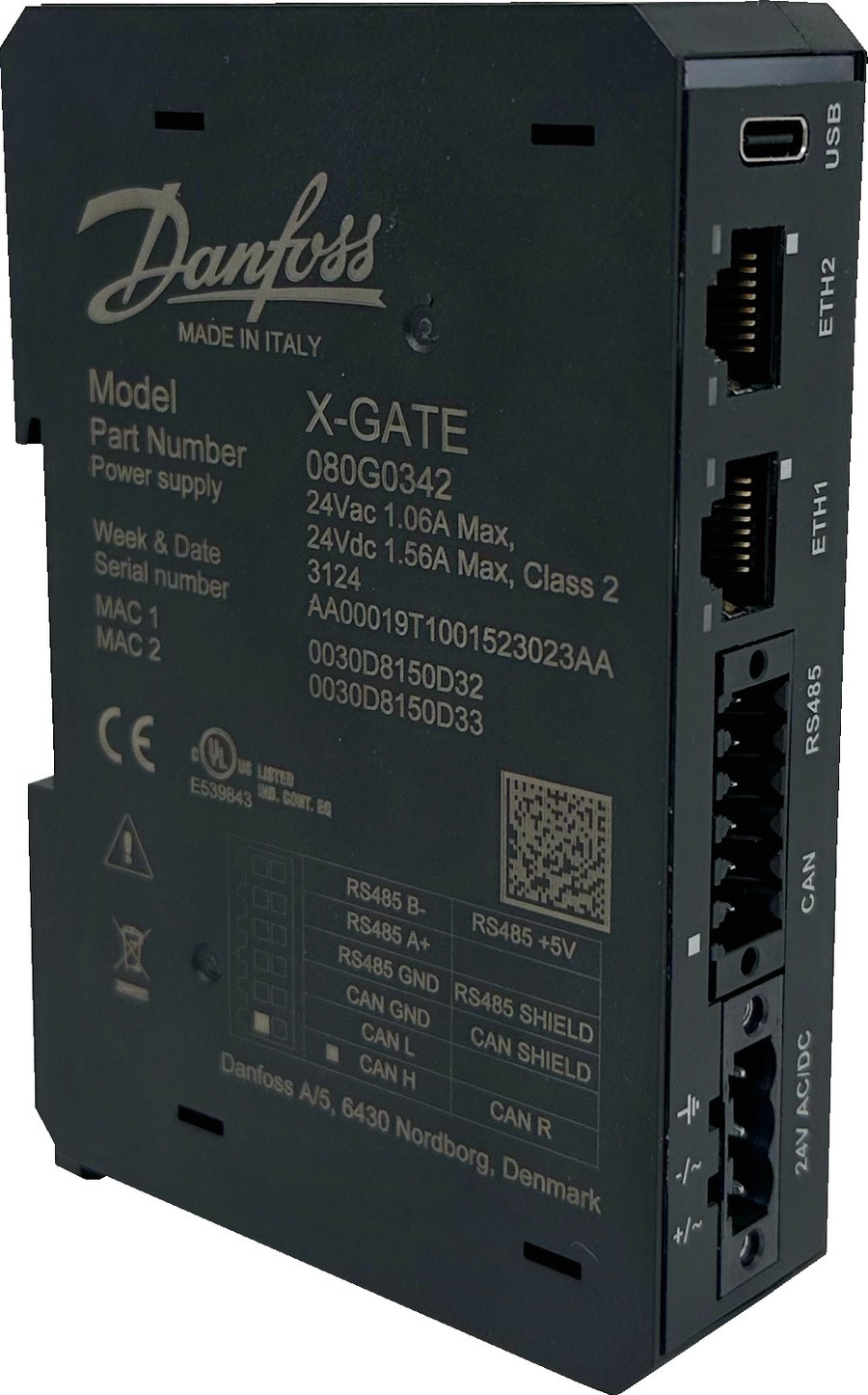

Danfoss X-Gate multi-protocol gateway (BACnet / Modbus / CANbus)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss X-Gate supervisory gateway for air-conditioning and refrigeration control networks: an advanced Linux-based device that reads data over one protocol and makes it available over another, so equipment already present in an installation can be integrated at field level. This code is the X-Gate main board, carrying two independent Ethernet cards, one RS-485 port and one CAN bus port; the separate 080G0343 RS-485 extension board adds a further RS-485 port. Bridges BACnet IP, BACnet MS/TP, Modbus RTU, Modbus TCP/IP and CANbus. Full system configuration is via a web interface with account and password access control. DIN-rail mount. EAN 5715162866238. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Type
- X-Gate gateway (ACCGTW)
- Function
- Supervisory / protocol gateway
- Product group
- Supervisory solutions
- Design
- Linux-based protocol gateway
- Board
- X-Gate main board
- Interfaces (main board)
- 2 x independent Ethernet cards; 1 x RS-485 port; 1 x CAN bus port
- Communication
- BACnet IP; BACnet MS/TP; CANbus; Modbus RTU; Modbus TCP/IP
- Configuration
- Web interface with account/password access control
- Expansion
- 080G0343 RS-485 extension board adds 1 x RS-485 port
- Application
- Air conditioning; Refrigeration
- Mounting
- DIN rail
- Packing
- Single pack, 1 pc
- Net weight
- 0.14 kg
- Approvals
- CE, C UL US Listed
- EU RoHS compliance
- Yes with exemptions
- Danfoss code
- 080G0342
- EAN
- 5715162866238
- Application area
- Air Conditioning
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 8.1
- Communication type
- BACnet IP
- EU RoHS exemption clause
- 7(a)
- Further information
- 080G0343 RS485 ext. board
- In scope of WEEE
- No
- Mounting method
- DIN rail
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Type designation
- ACCGTW
Standards & Compliance
- Classification / Approval
- CE, C UL US Listed
- HS Code
- 8517.62
Compatibility & Fitment
Multi-protocol supervisory gateway for Danfoss air-conditioning and refrigeration networks; this code is the X-Gate main board. The RS-485 port-extension board is 080G0343. The single-protocol BACnet MCX gateway is 080G0269. Confirm the required field-bus and BMS protocol, and the number of RS-485 segments, before ordering.
