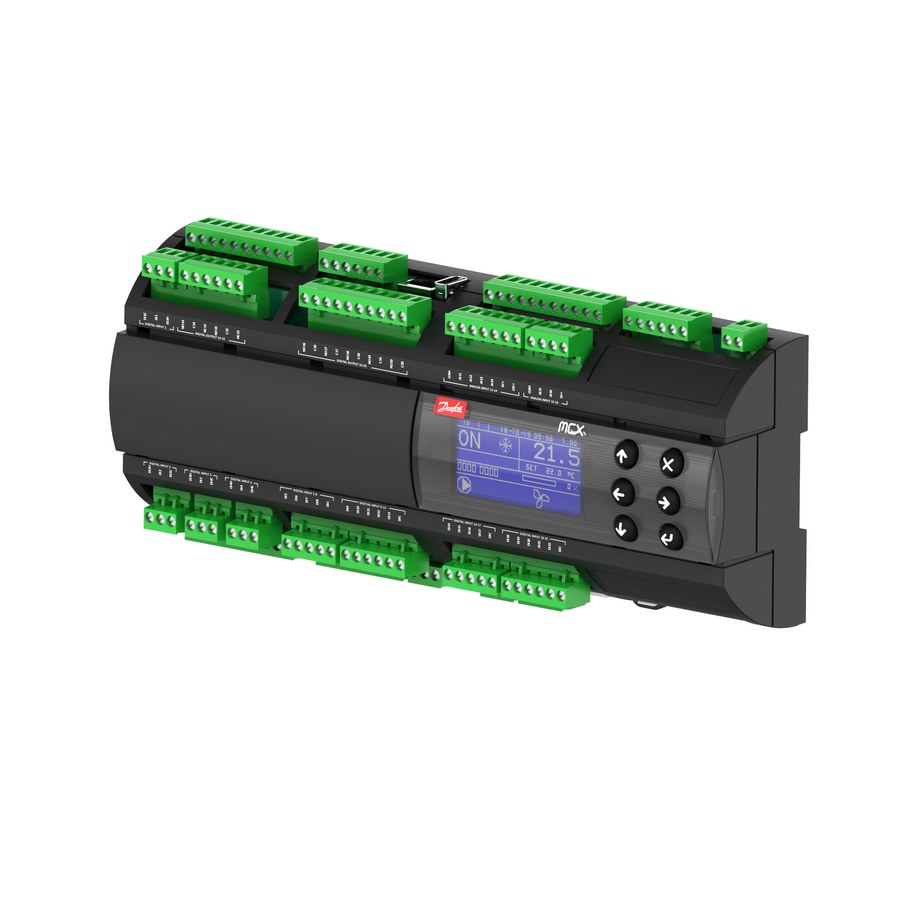

Danfoss MCX20B2 programmable controller, 20 relays, wide voltage, LCD
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MCX20B2 programmable refrigeration controller with 20 relay outputs, wide-range 24-230 V AC / 40-230 V DC supply and LCD display, for OEM refrigeration and HVAC applications on the MCX platform. Dual RS485 Modbus, CANbus, Ethernet and USB communication, real-time clock. DIN-rail, IP40. EAN 5715162496282.
Technical Specifications
- Type
- MCX20B2 programmable controller
- Function
- Programmable controller, 20 relays
- Supply voltage
- 24-230 V AC / 40-230 V DC
- Frequency
- 50/60 Hz
- Digital inputs (DI)
- 22 pc
- Digital outputs (DO)
- 20 pc
- Analog inputs (AI)
- 16 pc
- Analog outputs (AO)
- 6 pc
- Communication
- 2x RS485 Modbus; CANbus; Ethernet; USB
- Display
- LCD
- Real-time clock
- Yes
- Enclosure rating
- IP40
- Mounting
- DIN rail
- Power consumption
- 15 W
- Packing
- Single pack
- Net weight
- 0.69 kg
- Approvals
- CE, EAC, UA, UL Recognized
- Danfoss code
- 080G0330
- EAN
- 5715162496282
- Product group
- Programmable controllers
- Analog inputs (AI) [pc]
- 16 pc
- Analog outputs (AO) [pc]
- 6 pc
- Approval
- CE
- Buzzer
- No
- CE mark
- Yes
- China RoHS compliance
- Yes
- Communication type
- 2xRS485 MODBUS
- Connector kit Code No.
- 080G0182
- Connector kit included
- Yes
- Digital inputs (DI) [pc]
- 22 pc
- Digital outputs (DO) [pc]
- 20 pc
- Display type
- LCD
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Enclosure rating IP
- IP40
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Frequency [Hz]
- 50/60 Hz
- Identical product
- 080G0331
- In scope of WEEE
- Yes
- Mounting method
- DIN rail
- Power consumption [W]
- 15 W
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Supply voltage [V] AC [max]
- 230 V
- Supply voltage [V] AC [min]
- 24 V
- Supply voltage [V] DC [max]
- 230 V
- Supply voltage [V] DC [min]
- 40 V
- Type designation
- MCX20B2
- UL mark
- Yes
Standards & Compliance
- IP Rating
- IP40
- Classification / Approval
- CE, EAC, UA, UL Recognized
- HS Code
- 9032.89
Compatibility & Fitment
Freely programmable OEM controller on the Danfoss MCX platform (B2 generation, 20 relays, dual RS485 + Ethernet), wide-range supply, with LCD. The no-display industrial-pack build is 080G0329. The 15-relay B2 builds are 080G0327 (no display) and 080G0328 (LCD). Requires MCX Shape / Design programming tools.
