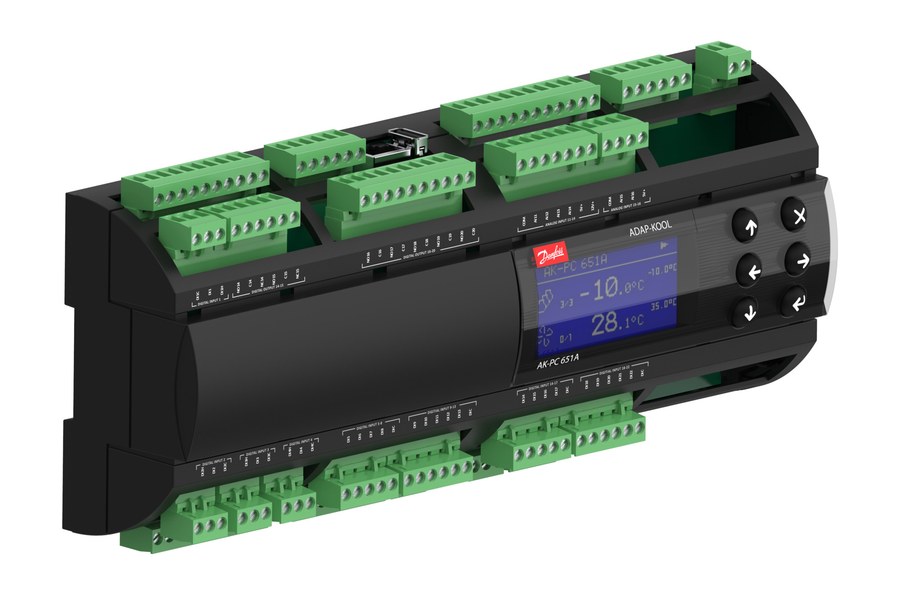

Danfoss AK-PC 651A pack controller, 1 suction + 1 condenser
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AK-PC 651A capacity pack controller for one suction group and one condenser, with wide-range 24-230 V AC / 40-230 V DC supply and built-in LCD. Sequences compressors with Step / Speed / PWM capacity control. 22 digital inputs, 20 digital outputs, 16 analog inputs and 6 analog outputs; Modbus, DIN-rail mount, IP40. EAN 5715162508541.
Technical Specifications
- Type
- AK-PC 651A pack controller
- Function
- 1 Suction and 1 Condenser
- Application
- Capacity control
- Supply voltage
- 24-230 V AC / 40-230 V DC
- Frequency
- 50/60 Hz
- Power consumption
- 15 W
- Compressor capacity mode
- Step / Speed / PWM
- Digital inputs (DI)
- 22 pc
- Digital outputs (DO)
- 20 pc
- Analog inputs (AI)
- 16 pc
- Analog outputs (AO)
- 6 pc
- Communication
- Modbus
- Display
- LCD
- Enclosure rating
- IP40
- Mounting
- DIN rail
- Packing
- Multi pack, 8 pc
- Net weight
- 0.8 kg
- Approvals
- CE, EAC, UA, UL Recognized
- Danfoss code
- 080G0336
- EAN
- 5715162508541
Standards & Compliance
- IP Rating
- IP40
- Classification / Approval
- CE, EAC, UA, UL Recognized
- HS Code
- 9032.89
Compatibility & Fitment
AK-PC 651A capacity pack controller for one suction group on one condenser (larger I/O count than the AK-PC 351/551). The two-suction AK-PC 551 builds are 080G0281/0282/0283/0288; the transcritical CO2 AK-PC 572 is 080G0320. The external display option is the MMIGRS2 (080G0295 / 080G0299).
Product Documentation
More from Danfoss
Danfoss
Danfoss MMIGRS2 graphic control panel / remote display, IP65
080G0299
Danfoss
Danfoss ACCGTW BACnet gateway, MCX series
080G0269
Danfoss
Danfoss X-Gate multi-protocol gateway (BACnet / Modbus / CANbus)
080G0342
Danfoss
Danfoss X-Gate RS-485 extension board
080G0343
Danfoss
Danfoss ACCCNX connector kit for MCX/EXC06D, MCX series
080G0179
Danfoss
Danfoss ACCCNX connector kit for MCX-08M, MCX series
080G0180
Danfoss
Danfoss BE100CS solenoid valve coil 100V AC 50/60Hz clip-on terminal box IP67
018F6729
Danfoss
Danfoss BG024CS solenoid valve coil 24V AC 50/60Hz clip-on terminal box IP67
018F6827
Technical guides
- Cross-Referencing Danfoss Refrigeration Components by IMPA and OEM Code
- Danfoss Product Code Decoder — 003Z, 013G, 017B, 023U, 027L, 032F, 060G, 060H, 065B, 065Z, 068Z, 084H, 132F, 148B Series (Complete Reference)
- Danfoss Maneurop MTZ Reciprocating Compressors — Model Range, Voltage Codes and Replacement Guide
Catalogue entry last verified: 2026-08-24. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
