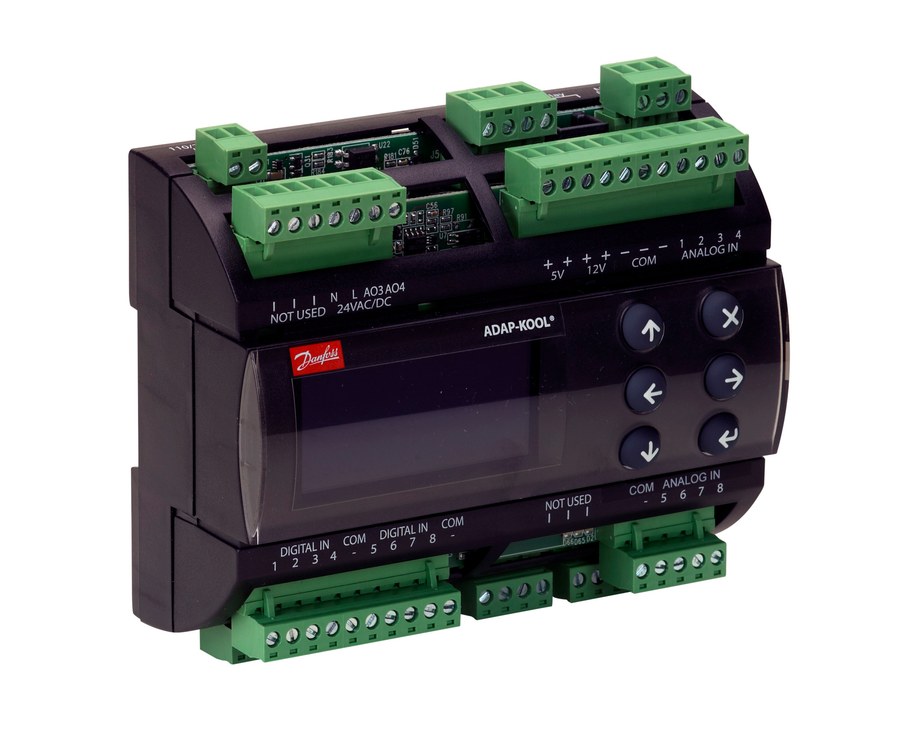

Danfoss AK-PC 551 pack controller, 2 suction + common condenser, 24 V, front display
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AK-PC 551 pack controller for two suction groups and a common condenser, 24 V AC/DC supply with built-in front display (option: MMIGRS2 remote). Sequences up to eight compressors with Step / Speed / PWM capacity control and pressure/temperature condenser control. Modbus, DIN-rail mount. EAN 5702428843065.
Technical Specifications
- Type
- AK-PC 551 pack controller
- Function
- 2 Suction and common Condenser
- Supply voltage
- 24 V AC / 24 V DC
- Frequency
- 50/60 Hz
- Power consumption
- 10 W
- Compressor capacity mode
- Step / Speed / PWM
- Number of compressors (max)
- 8 pc
- Condenser control
- Pressure / Temperature
- Digital inputs (DI)
- 8 pc
- Digital outputs (DO)
- 8 pc
- Analog inputs (AI)
- 8 pc
- Analog outputs (AO)
- 2 pc
- Communication
- Modbus
- Display
- Built-in front (option: MMIGRS2 remote)
- Mounting
- DIN rail
- Battery
- Lithium coin cell CR1620
- Packing
- Multi pack, 12 pc
- Net weight
- 0.55 kg
- Approvals
- CE, CMIM, EAC, cURus, UL
- Danfoss code
- 080G0283
- EAN
- 5702428843065
Standards & Compliance
- Classification / Approval
- CE, CMIM, EAC, cURus, UL
- HS Code
- 9032.89
Compatibility & Fitment
AK-PC 551 pack controller (two suction groups, common condenser) in the 24 V AC/DC supply build with built-in front display. The 110-230 V AC front-display build is 080G0281; the 24 V build without front display (incl. external MMIGRS2) is 080G0288. The external display option is the MMIGRS2 (080G0295 IP40 / 080G0299 IP65).
