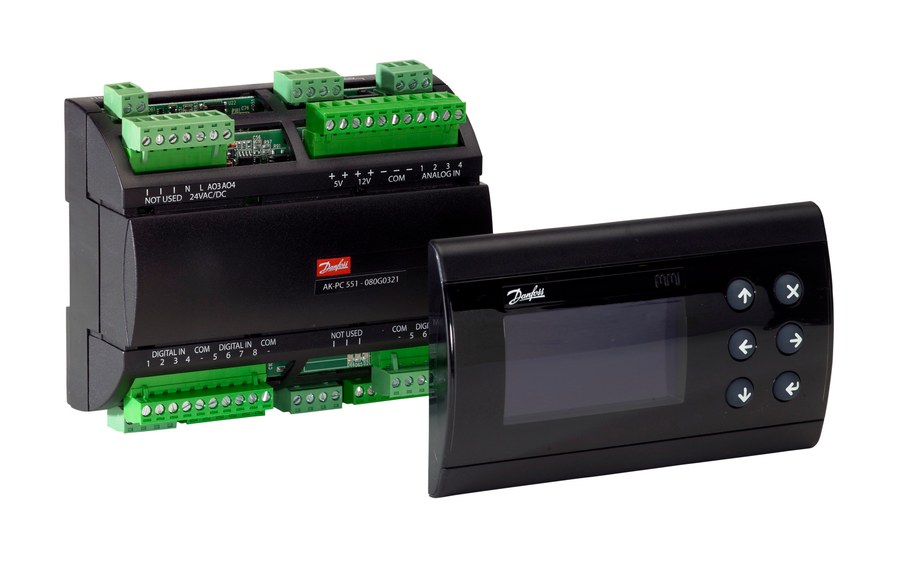

Danfoss AK-PC 551 pack controller, 2 suction + common condenser, 24 V, incl. MMIGRS2 display
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AK-PC 551 pack controller for two suction groups and a common condenser, 24 V AC/DC supply, without front display and supplied with an external MMIGRS2 remote display. Sequences up to eight compressors with Step / Speed / PWM capacity control. Modbus, DIN-rail mount. EAN 5702428843072.
Technical Specifications
- Type
- AK-PC 551 pack controller
- Function
- 2 Suction and common Condenser
- Supply voltage
- 24 V AC / 24 V DC
- Frequency
- 50/60 Hz
- Power consumption
- 10 W
- Compressor capacity mode
- Step / Speed / PWM
- Number of compressors (max)
- 8 pc
- Condenser control
- Pressure / Temperature
- Fan capacity control
- Step / Speed
- Digital inputs (DI)
- 8 pc
- Digital outputs (DO)
- 8 pc
- Analog inputs (AI)
- 8 pc
- Analog outputs (AO)
- 2 pc
- Communication
- Modbus
- Display
- No front display; incl. external MMIGRS2 display
- Mounting
- DIN rail
- Battery
- Lithium coin cell CR1620
- Packing
- Multi pack, 12 pc
- Net weight
- 0.86 kg
- Approvals
- CE, CMIM, EAC, cURus, UL
- Danfoss code
- 080G0288
- EAN
- 5702428843072
Standards & Compliance
- Classification / Approval
- CE, CMIM, EAC, cURus, UL
- HS Code
- 9032.89
Compatibility & Fitment
AK-PC 551 pack controller (two suction groups, common condenser) in the 24 V AC/DC supply build, no front display, supplied with the external MMIGRS2 display. The 110-230 V AC equivalent (incl. MMIGRS2) is 080G0282; the 24 V build with built-in front display is 080G0283.
Product Documentation
More from Danfoss
Danfoss
Danfoss AK-PC 651A pack controller, 1 suction + 1 condenser
080G0336
Danfoss
Danfoss MMIGRS2 graphic control panel / remote display, IP65
080G0299
Danfoss
Danfoss ACCGTW BACnet gateway, MCX series
080G0269
Danfoss
Danfoss X-Gate multi-protocol gateway (BACnet / Modbus / CANbus)
080G0342
Danfoss
Danfoss X-Gate RS-485 extension board
080G0343
Danfoss
Danfoss ACCCNX connector kit for MCX/EXC06D, MCX series
080G0179
Danfoss
Danfoss ACCCNX connector kit for MCX-08M, MCX series
080G0180
Danfoss
Danfoss BE100CS solenoid valve coil 100V AC 50/60Hz clip-on terminal box IP67
018F6729
Technical guides
- Cross-Referencing Danfoss Refrigeration Components by IMPA and OEM Code
- Danfoss Product Code Decoder — 003Z, 013G, 017B, 023U, 027L, 032F, 060G, 060H, 065B, 065Z, 068Z, 084H, 132F, 148B Series (Complete Reference)
- Danfoss Maneurop MTZ Reciprocating Compressors — Model Range, Voltage Codes and Replacement Guide
Catalogue entry last verified: 2026-08-24. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 080G0288?
- 080G0288 can be ordered from cballast.com as a Danfoss catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Danfoss product?
- The manufacturer part number is 080G0288.
- What is the HS code for 080G0288?
- The customs tariff (HS) code for 080G0288 is 9032.89.
- Who manufactures 080G0288?
- 080G0288 is a Danfoss product in the Control & Automation range.
- Is a datasheet available for 080G0288?
- Yes — the 080G0288 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 080G0288?
- The minimum order quantity is 1.
- Is 080G0288 available?
- Yes — 080G0288 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
