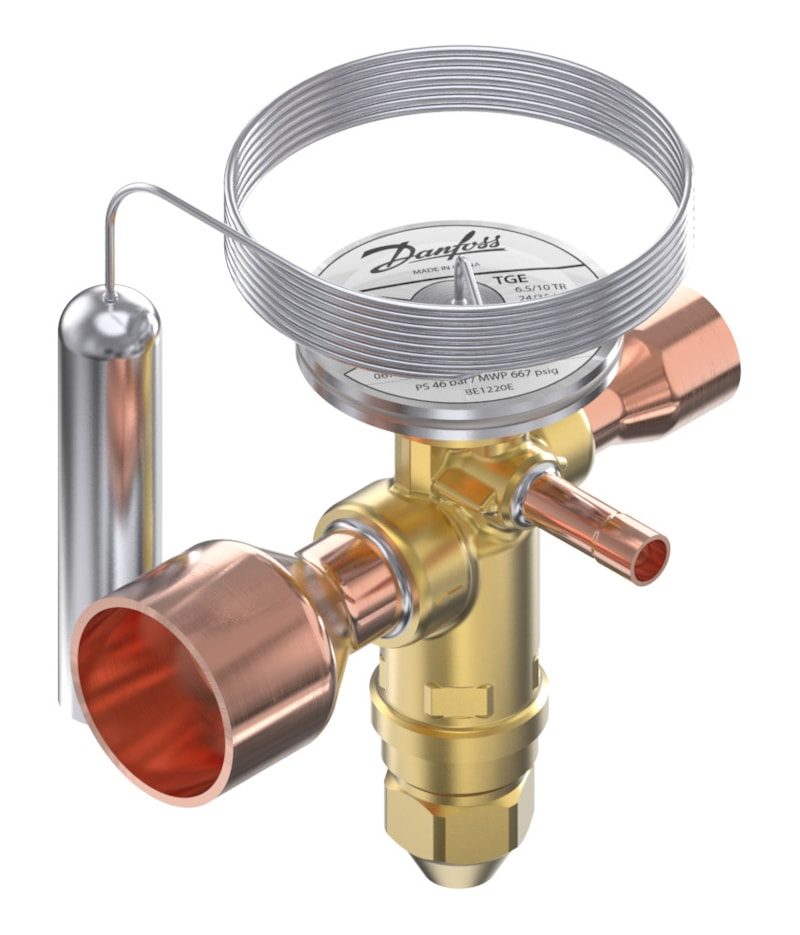

Danfoss 067N6005 TGE thermostatic expansion valve, R404A/R507A, 5/8 in x 1 1/8 in solder odf
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss TGE thermostatic expansion valve, OEM P/N 067N6005. Externally equalized, balanced-port, bi-flow (straightway) design with adjustable superheat. Refrigerant R404A/R507A. Orifice assembly size 11. Nominal capacity 26 kW (7.5 TR) at the standard rating condition. Evaporating temperature range -25 to 10 °C. Inlet 5/8 in, outlet 1 1/8 in, external equalizer 1/4 in, all Solder ODF. Static superheat 4 °C (adjustable). MOP 105 psig at 10 °C. Max working pressure 49 bar (711 psig). Brass body, copper connections; 1500 mm capillary tube with bulb strap. PED Art. 4 par. 3. EAN 5702428143332.
Specifications
- Part number
- 067N6005
- HS code
- 8481.80
- Material
- Brass body, copper connections
- Pressure rating
- 49 bar (711 psig) max working pressure
- Temperature range
- -25 to 10 °C (evaporating)
- Standard size
- 5/8 in x 1 1/8 in
Compatibility
Rated for R404A/R507A. Select orifice/capacity to the evaporator load and rating condition per the TGE data sheet before ordering.
Approvals
