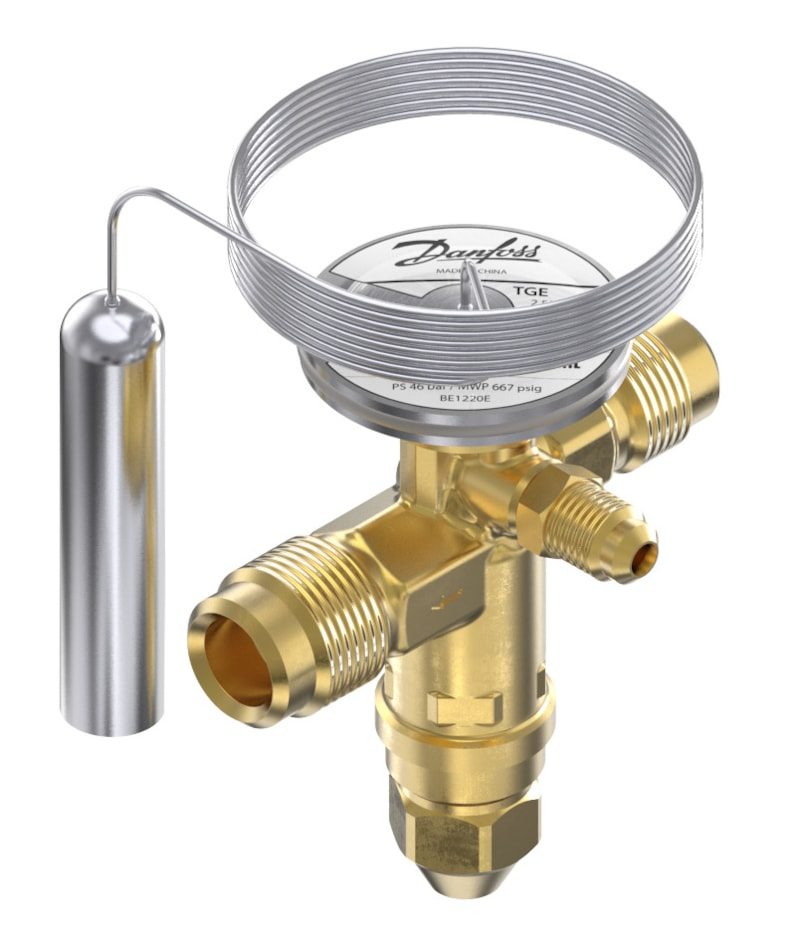

Danfoss 067N7007 TGE thermostatic expansion valve, R134a/R513A, 3/8 in x 1/2 in flare
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss TGE thermostatic expansion valve, OEM P/N 067N7007. Externally equalized, balanced-port, bi-flow (straightway) design with adjustable superheat. Refrigerant R134a/R513A. Orifice assembly size 8. Nominal capacity 17 kW (4.5 TR) at the standard rating condition. Evaporating temperature range -25 to 10 °C. Inlet 3/8 in, outlet 1/2 in, external equalizer 1/4 in, all Flare. Static superheat 4 °C (adjustable). MOP 55 psig at 15 °C. Max working pressure 49 bar (711 psig). Brass body, copper connections; 1500 mm capillary tube with bulb strap. PED Art. 4 par. 3. EAN 5702428143110.
Specifications
- Part number
- 067N7007
- HS code
- 8481.80
- Material
- Brass body, copper connections
- Pressure rating
- 49 bar (711 psig) max working pressure
- Temperature range
- -25 to 10 °C (evaporating)
- Standard size
- 3/8 in x 1/2 in
Compatibility
Rated for R134a/R513A. Select orifice/capacity to the evaporator load and rating condition per the TGE data sheet before ordering.
Approvals
