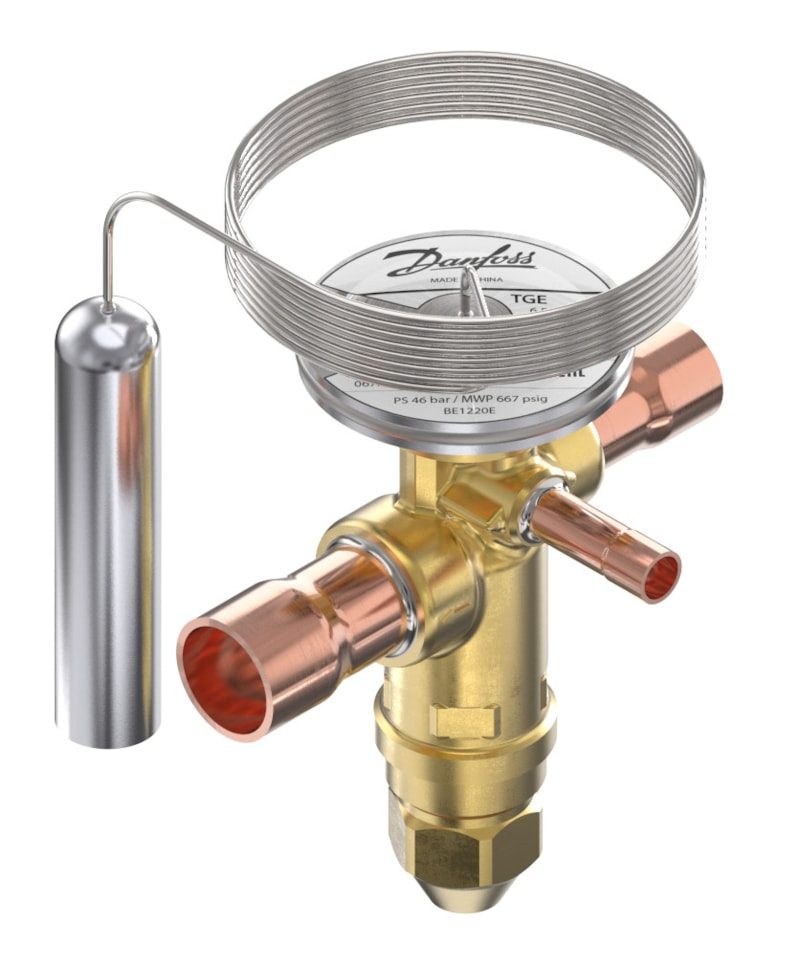

Danfoss TGE thermostatic expansion valve, R407C, 1/2 in x 5/8 in solder odf 067N4021

Danfoss TGE thermostatic expansion valve, OEM P/N 067N4021. Externally equalized, balanced-port, bi-flow (straightway) design with adjustable superheat. Refrigerant R407C. Orifice assembly size 3. Nominal capacity 9 kW (2.5 TR) at the standard rating condition. Evaporating temperature range -25 to 10 °C. Inlet 1/2 in, outlet 5/8 in, external equalizer 1/4 in, all Solder ODF. Static superheat 4 °C (adjustable). MOP 95 psig at 15 °C. Max working pressure 49 bar (711 psig). Brass body, copper connections; 1500 mm capillary tube with bulb strap. PED Art. 4 par. 3. EAN 5702428167147.

Brand

Danfoss

Part number

067N4021

Type

TGE (externally equalized, balanced port, bi-flow)

Category

Expansion valves — thermostatic

Refrigerant

R407C

Nominal capacity

9 kW (2.5 TR)

Orifice size

3

Pressure equalization

Externally equalized

Inlet connection

1/2 in, Solder ODF

Outlet connection

5/8 in, Solder ODF

External equalizer connection

1/4 in, Solder ODF

Static superheat

4 °C, adjustable

MOP 95 psig at 15 °C

Evaporating temperature range

-25 to 10 °C

Max working pressure

49 bar (711 psig)

Body material

Brass

Connection material

Copper

Capillary tube

1500 mm with bulb strap

PED category

Art. 4, par. 3

EAN

5702428167147

Approvals

UL (C UL US), EAC

Size / Series

1/2 in x 5/8 in

Material

Brass body, copper connections

Pressure Rating

49 bar (711 psig) max working pressure

Temperature Range

-25 to 10 °C (evaporating)

Classification / Approval

UL (C UL US), EAC

HS Code

8481.80
