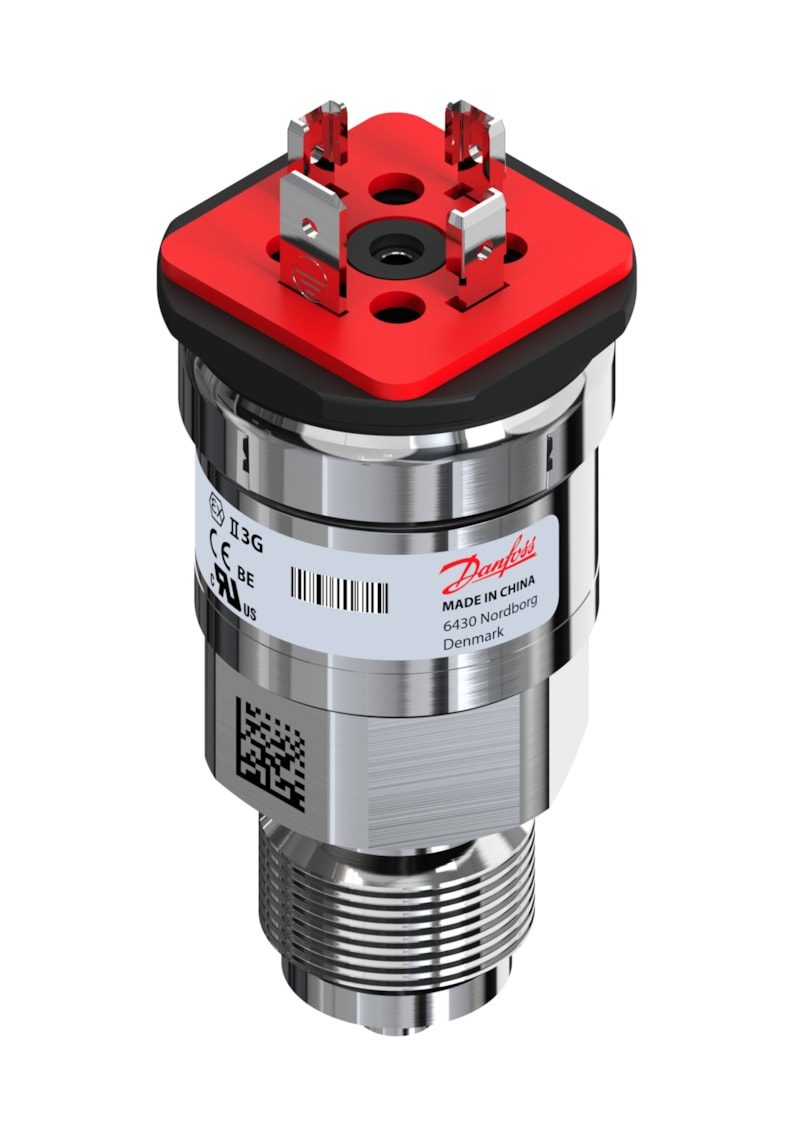

Danfoss MBS 3000 Pressure Transmitter 0-4 bar Absolute G 1/2 male (060G6654)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3000 pressure transmitter, genuine OEM code 060G6654. Measuring range 0 to 4 bar (0 to 58 psi), 0-10 V (voltage) output, AISI 316L stainless steel wetted parts. G 1/2 male pressure connection; Angular connector, 4-pin. Reference absolute, enclosure IP65. CE; UL Recognized; C UL US. P/N 060G6654; EAN 5702428005289.
Specifications
- Part number
- 060G6654
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 4 bar (0 to 58 psi)
- Temperature range
- -40 to +125 C (medium)
- IP rating
- IP65
- Thread standard
- G 1/2 male
Compatibility
MBS 3000 0-4 bar absolute, G1/2 port with 4-pin angular connector, 0-10 V output.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
