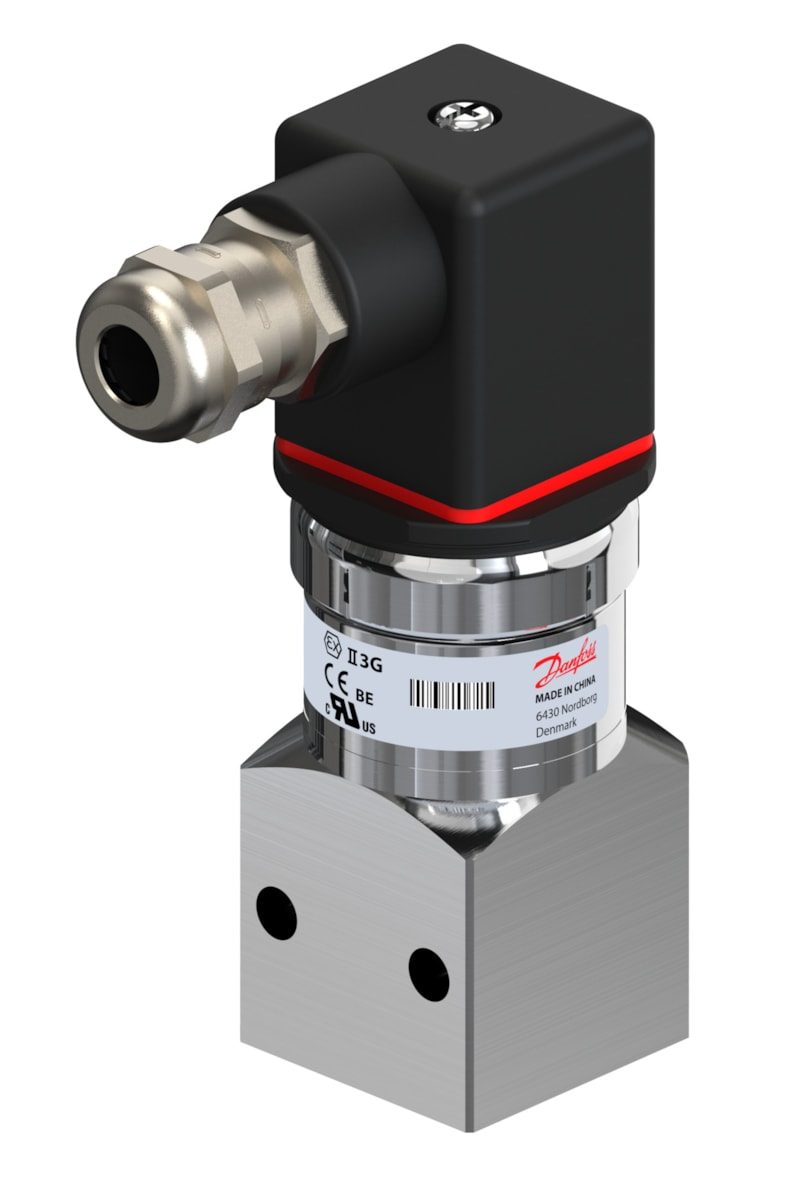

Danfoss MBS 3300 Pressure Transmitter 0-40 bar Flange Angular (060G6272)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3300 pressure transmitter, genuine OEM code 060G6272. Measuring range 0 to 40 bar (0 to 580 psi), 4-20 mA (2-wire) output, AISI 316L stainless steel wetted parts. Flange, port O2.5 (block adapter with flange) pressure connection; Angular connector Pg 9 (EN 175301-803-A). Reference sealed gauge, enclosure IP65. CE / UL / C UL US / EAC (GOST) / RoHS; EAN 5702428842068. P/N 060G6272.
Specifications
- Part number
- 060G6272
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 40 bar (0 to 580 psi)
- Temperature range
- -40 to +125 C (medium)
- IP rating
- IP65
- Thread standard
- Flange, port O2.5 (block adapter with flange)
Compatibility
MBS 3300 transmitter, 0 to 40 bar sealed gauge, Flange port with Angular connection.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
