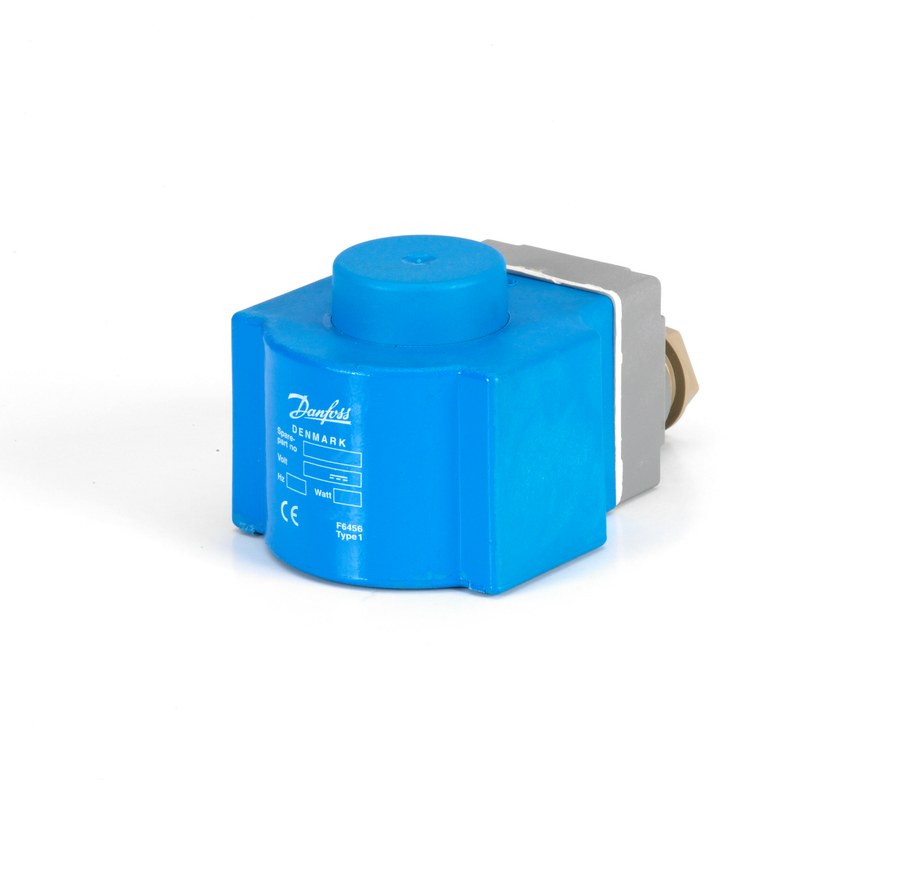

Danfoss BG036DS solenoid valve coil 36V DC clip-on terminal box IP67 018F6955
Danfoss · HVAC & Refrigeration · Solenoid Valves
Danfoss BG036DS clip-on solenoid coil, 36 V DC, terminal box (screwed cable entry, pg 13.5), IP67, Class H insulation. Encapsulated coil with 13.5 mm clip-on actuator for the EV-series valve range. OEM P/N 018F6955. Valve body ordered separately.
Specifications
- Part number
- 018F6955
- HS code
- 8505.90
- Material
- Encapsulated coil, Class H insulation
- Temperature range
- -40 to +50 °C
- IP rating
- IP67
Compatibility
Clip-on coil — mounts on the EV-series valve actuator (13.5 mm) without tools. Terminal box (screwed cable entry, Pg 13.5). Verify valve series, supply voltage and connection type before ordering. Valve body ordered separately.
Standards
- IEC 60085 (Class H insulation)
- VDE 0580
- EN 60730-1
- LVD 2014/35/EU
Approvals
