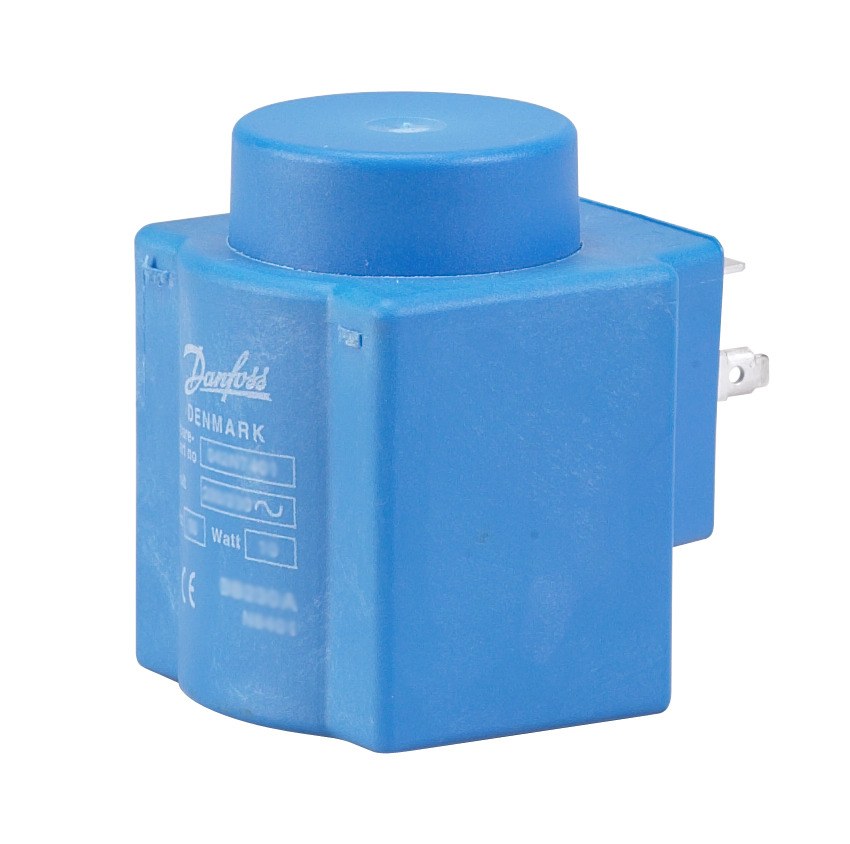

Danfoss BB048DS solenoid valve coil 48V DC clip-on DIN-spade
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss BB048DS clip-on solenoid coil, 48 V DC, din-spade, 3 x 6.3 mm x 0.8 mm (en 175301-803), IP00, Class H insulation. Encapsulated coil with 13.5 mm clip-on actuator for the EV-series valve range. OEM P/N 018F7389. Valve body ordered separately.
Technical Specifications
- Type
- BB048DS clip-on solenoid coil
- Supply
- 48 V DC
- Power
- 16 W (DC)
- Connection
- DIN-spade, 3 x 6.3 mm x 0.8 mm (EN 175301-803)
- Enclosure
- IP00
- Insulation
- Class H to IEC 60085
- Ambient
- -40 to +50 °C
- Actuator size
- 13.5 mm, clip-on
- Duty
- continuous
- Design standard
- VDE 0580
- Packing
- multi-pack (50 pc)
- EAN
- 5715255112464
- Fits EV210B / EV212B / EV220B / EV222B / EV224B / EV227B / EV250B / EV251B-series solenoid valve bodies — verify valve series on the datasheet
- Voltage
- 48 V
Standards & Compliance
- Material
- Encapsulated coil, Class H insulation
- Temperature Range
- -40 to +50 °C
- IP Rating
- IP00
- HS Code
- 8505.90
Compatibility & Fitment
Clip-on coil — mounts on the EV-series valve actuator (13.5 mm) without tools. DIN-spade, 3 x 6.3 mm x 0.8 mm (EN 175301-803). Verify valve series, supply voltage and connection type before ordering. Valve body ordered separately.
