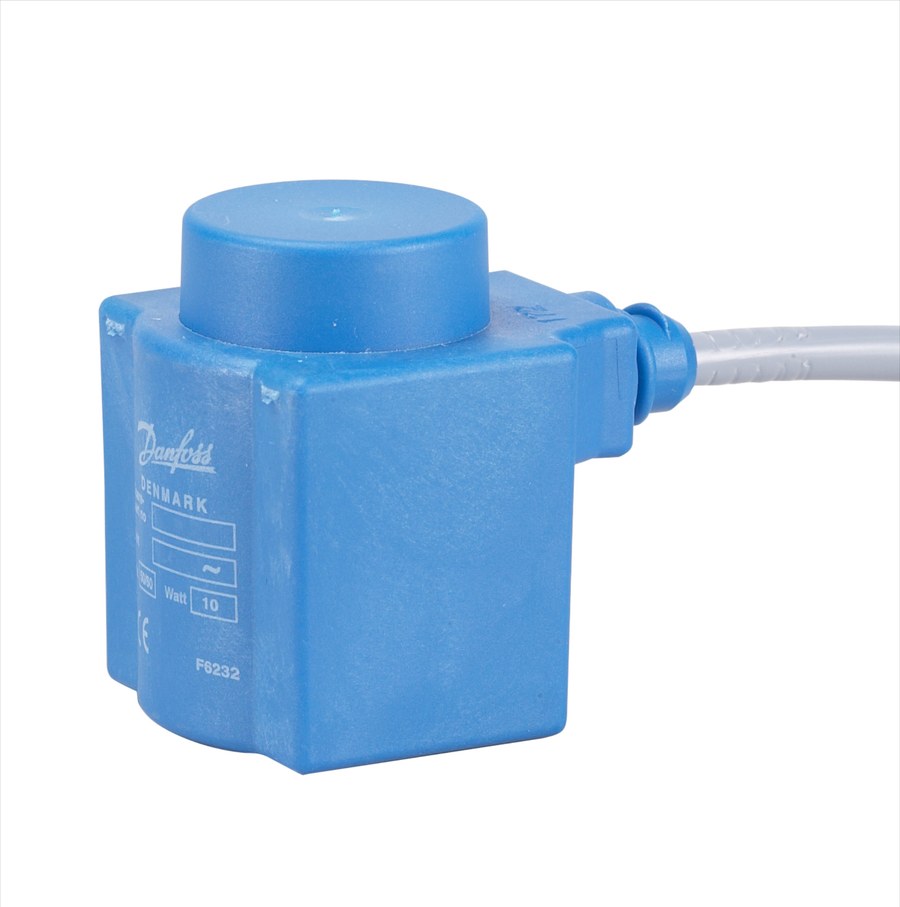

Danfoss BF440AS solenoid valve coil 380-440V AC 50/60Hz clip-on cable 1 m IP67 018F6253
Danfoss · HVAC & Refrigeration · Solenoid Valves
Danfoss BF440AS clip-on solenoid coil, 380-440 V AC, 50/60 Hz, cable 1 m (3-core, 3 x 0.75 mm², ø6.6 mm), IP67, Class H insulation. Encapsulated coil with 13.5 mm clip-on actuator for the EV-series valve range. OEM P/N 018F6253. Valve body ordered separately.
Specifications
- Part number
- 018F6253
- HS code
- 8505.90
- Material
- Encapsulated coil, Class H insulation
- Temperature range
- -40 to +80 °C
- IP rating
- IP67
Compatibility
Clip-on coil — mounts on the EV-series valve actuator (13.5 mm) without tools. Cable 1 m (3-core, 3 x 0.75 mm², Ø6.6 mm). Verify valve series, supply voltage and connection type before ordering. Valve body ordered separately.
Standards
- IEC 60085 (Class H insulation)
- VDE 0580
- EN 60730-1
- LVD 2014/35/EU
Approvals
