Danfoss BF024CS solenoid valve coil 24 V AC 50/60 Hz clip-on cable IP67
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss BF024CS clip-on solenoid coil, 24 V AC, 50/60 Hz, Cable (3 x 0.75 mm2), 1 m lead, IP67, Class H insulation. Encapsulated coil with 13.5 mm clip-on actuator for the EV-series valve range. OEM P/N 018F6277. Valve body ordered separately.
Technical Specifications
- Type
- BF024CS clip-on solenoid coil
- Supply
- 24 V AC, 50/60 Hz
- Power
- 13 W / 25 VA (50 Hz), 11 W / 20 VA (60 Hz)
- Connection
- Cable (3 x 0.75 mm2), 1 m lead
- Enclosure
- IP67
- Insulation
- Class H to IEC 60085
- Ambient
- -40 to +50 °C
- Actuator size
- 13.5 mm, clip-on
- Duty
- continuous
- Design standard
- VDE 0580
- Packing
- multi-pack (24 pc)
- EAN
- 5702428024983
- Fits EV210B / EV212B / EV220B / EV222B / EV224B / EV227B / EV250B / EV251B-series solenoid valve bodies — verify valve series on the datasheet
- Voltage
- 24 V
Standards & Compliance
- Material
- Encapsulated coil, Class H insulation
- Temperature Range
- -40 to +50 °C
- IP Rating
- IP67
- HS Code
- 8505.90
Compatibility & Fitment
Clip-on coil — mounts on the EV-series valve actuator (13.5 mm) without tools. Cable (3 x 0.75 mm2), 1 m lead. Verify valve series, supply voltage and connection type before ordering. Valve body ordered separately.
Product Documentation
More from Danfoss
Danfoss
Danfoss BF230CS solenoid valve coil 220-230 V AC 50/60 Hz clip-on cable IP67
018F6282
Danfoss
Danfoss BN027DS solenoid valve coil 27 V DC clip-on terminal box IP67
018F6957
Danfoss
Danfoss BN072DS solenoid valve coil 72 V DC clip-on terminal box IP67
018F6959
Danfoss
Danfoss BH230CS hum-free solenoid valve coil 230 V AC clip-on terminal box with rectifier IP67
018F7301
Danfoss
Danfoss EVM pilot valve, thread connection, 65 bar, NC — solenoid pilot for servo-operated refrigeration valves
032F3054
Danfoss

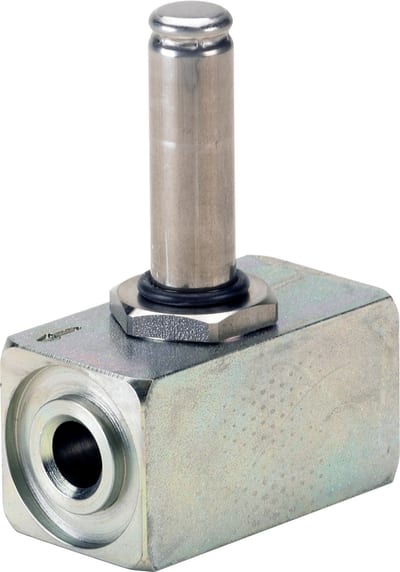

Danfoss EVRA 3.5 solenoid valve, G 1/4 thread ISO 228-1, steel body, 28 bar, NC
