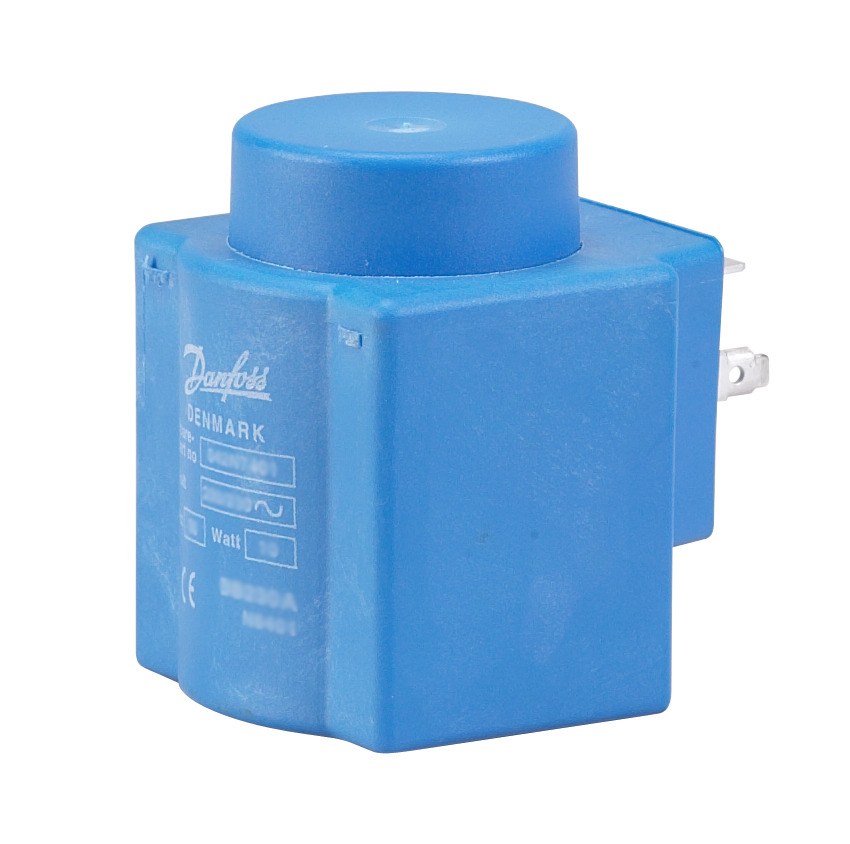

Danfoss BB440CS solenoid valve coil 380-440V AC 50/60Hz clip-on DIN-spade 018F7353
Danfoss · HVAC & Refrigeration · Solenoid Valves
Danfoss BB440CS clip-on solenoid coil, 380-440 V AC, 50/60 Hz, din-spade, 3 x 6.3 mm x 0.8 mm (en 175301-803), IP00, Class H insulation. Encapsulated coil with 13.5 mm clip-on actuator for the EV-series valve range. OEM P/N 018F7353. Valve body ordered separately.
Specifications
- Part number
- 018F7353
- HS code
- 8505.90
- Material
- Encapsulated coil, Class H insulation
- Temperature range
- -40 to +80 °C
- IP rating
- IP00
Compatibility
Clip-on coil — mounts on the EV-series valve actuator (13.5 mm) without tools. DIN-spade, 3 x 6.3 mm x 0.8 mm (EN 175301-803). Verify valve series, supply voltage and connection type before ordering. Valve body ordered separately.
Standards
- IEC 60085 (Class H insulation)
- VDE 0580
- EN 60730-1
- LVD 2014/35/EU
- EN 175301-803 (spade terminals)
Approvals
HVAC & Refrigeration · More Danfoss · Printable datasheet
