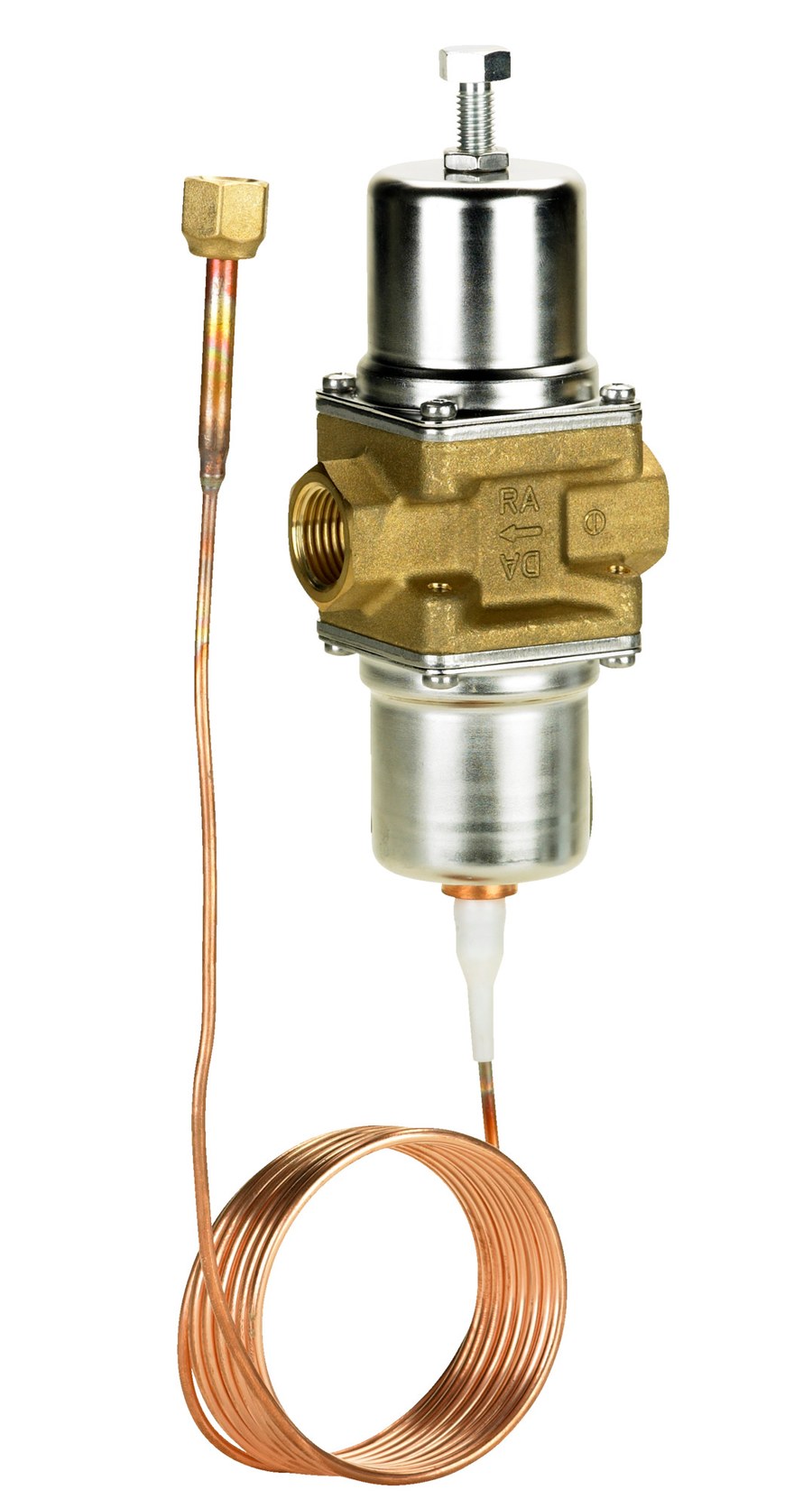

Danfoss WVO 20 Water Regulating Valve G 3/4 in 16 – 20 003N6232
Danfoss · HVAC & Refrigeration · Water Regulating Valves
Danfoss WVO 20 pressure-operated water valve, OEM P/N 003N6232. Regulates the flow of cooling water to a water-cooled condenser from the condensing (refrigerant) pressure and shuts the water off when the plant stops. Opens on rising condensing pressure; narrow control-pressure band set on the adjustment spring. Brass body, ISO 228-1 water connection. Water connection G 3/4 in; refrigerant sensing connection 1/4 in / 6 mm SAE flare. Control pressure range 16 – 20 bar; Kv 3.4 m³/h. Body brass. Max working pressure 16 bar (232 psig). Media: Fresh water, neutral brine. Verify the setting range and refrigerant against the datasheet before ordering.
Specifications
- Part number
- 003N6232
- HS code
- 8481.80
- Material
- Valve housing hot-pressed brass; regulating seat and bellows stainless steel; adjustment spring steel
- Pressure rating
- 16 bar (232 psig) water side max working pressure
- Temperature range
- -25 °C to 130 °C
- Standard size
- WVO 20
- Thread standard
- ISO 228-1
Compatibility
Fit in the cooling-water line to the condenser with the flow arrow in the direction of flow; the refrigerant sensing flare connects to the condenser/receiver. Set the closing pressure on the adjustment spring to the required condensing pressure. Direct-acting (opens on rising pressure). Confirm code, water connection and setting range before ordering.
Standards
Approvals
