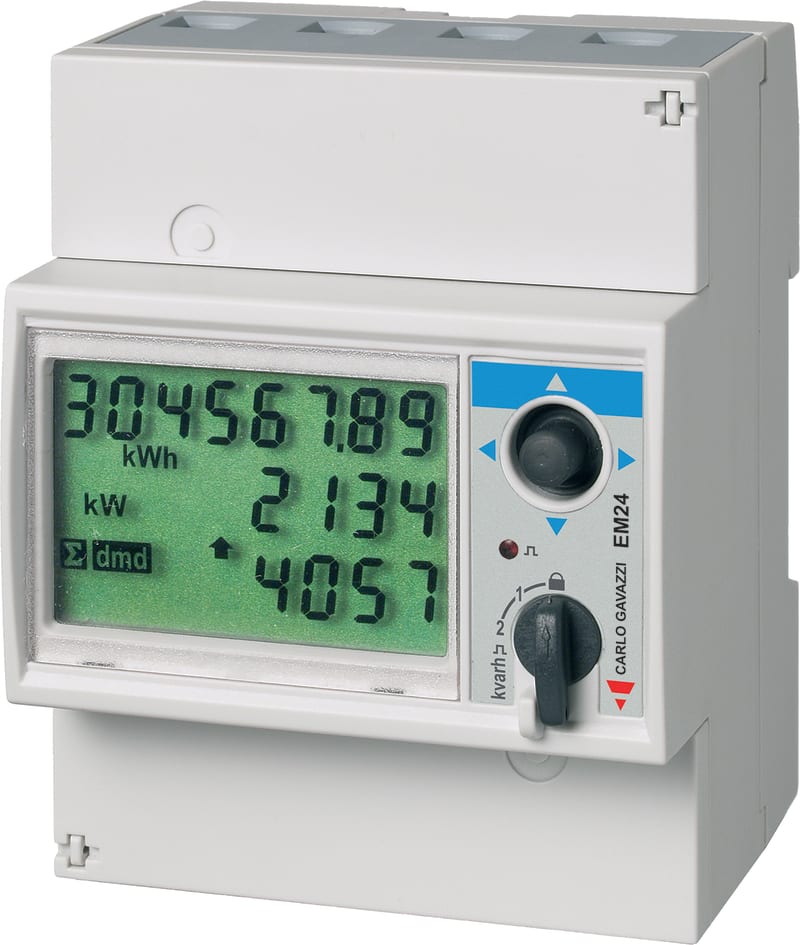

Meter 1-/3 Phase RS485 (EM24DINAV53XE1X)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi EM24DINAV53XE1X Manufacturer description: Three-phase Energy analyzer, 120 to 277 V L-N, 208 to 480 V L-L, 5 (10) A, Modbus TCP/IP (Ethernet). Energy meter EM24DINAV53XE1X.
Technical Specifications
- Manufacturer part number (MPN)
- EM24DINAV53XE1X
- EAN / GTIN
- 8030956085228
- Sales unit
- pcs
- Voltage inputs
- 3-phase (4-wire), 230/400 V
- Frequency
- 50Hz; 60Hz
- Current inputs
- 5 A current transformers
- Energy metering
- Consumption and generation
- Communication port and protocol
- Ethernet (Modbus TCP/IP)
- Power supply
- Self power supply
- Approvals, marks, declarations
- CE (Europe); cULus (North America); UKCA (UK)
- E-number (NO)
- 8200705
- E-number (SE)
- 0902413
- Mounting method
- DRA (DIN-rail adaptor)
- Model
- Measurement transformer
- Suitable for
- Purchase/supply
- Type of indication
- Digital
- Max. current (Imax)
- 10 A
- Width in number of modular spacings
- 4
- Number of positions total (counter)
- 8
- Type of meter
- Electronic
- Degree of protection (IP)
- IP50
- Type of interface
- Modbus
- Energy type
- Effective power and reactive power
- Tariff type
- Multi-tariff
- Tariff control
- External
- Escapement mechanism
- No
- Calibrated
- Yes
- Approval
- Domestic
- Pulse output
- None
- Accuracy class
- B
- Pole type
- Three conductor/four conductor
- Measurement type load profile
- No
- EEC40 signature
- No
- With lock code
- Yes
- Nominal voltage (Un) N-L
- 120–277 V
- Nominal voltage (Un) L-L
- 208–480 V
- Nominal current (In)
- 5 A
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 8030956085228
- SAP 1200454060
- Code 82515030
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Power Supply 60W 15VDC 4A
SPMA15601
Carlo Gavazzi
3-Phase kWh meter pulse
EM21072DAV53XOXX
Carlo Gavazzi
Magnet Switch M12,NO (FSMA2)
Carlo Gavazzi
Power supply 30W 12VDC 2.5A
SPDL12301
Carlo Gavazzi
Level Relay 1 level DIN 24VAC/DC
CLD1EA1CM24
Carlo Gavazzi
3-Phase Soft Starter 16A 230-400V (RSGT4016E0V10)
Carlo Gavazzi
Split-core Current Transformer (CTV4X200A333MV)
Carlo Gavazzi
Carlo Gavazzi Multifunction Time Relay 2 Change-Over Outputs
DMB71CM24
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy EM24DINAV53XE1X?
- EM24DINAV53XE1X can be ordered from cballast.com as a Carlo Gavazzi catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Carlo Gavazzi product?
- The manufacturer part number is EM24DINAV53XE1X.
- What is the HS code for EM24DINAV53XE1X?
- The customs tariff (HS) code for EM24DINAV53XE1X is 9030.90.
- Who manufactures EM24DINAV53XE1X?
- EM24DINAV53XE1X is a Carlo Gavazzi product in the Sensors & Instrumentation range.
- Is a datasheet available for EM24DINAV53XE1X?
- Yes — the EM24DINAV53XE1X datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for EM24DINAV53XE1X?
- The minimum order quantity is 1.
- Is EM24DINAV53XE1X available?
- Yes — EM24DINAV53XE1X is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
