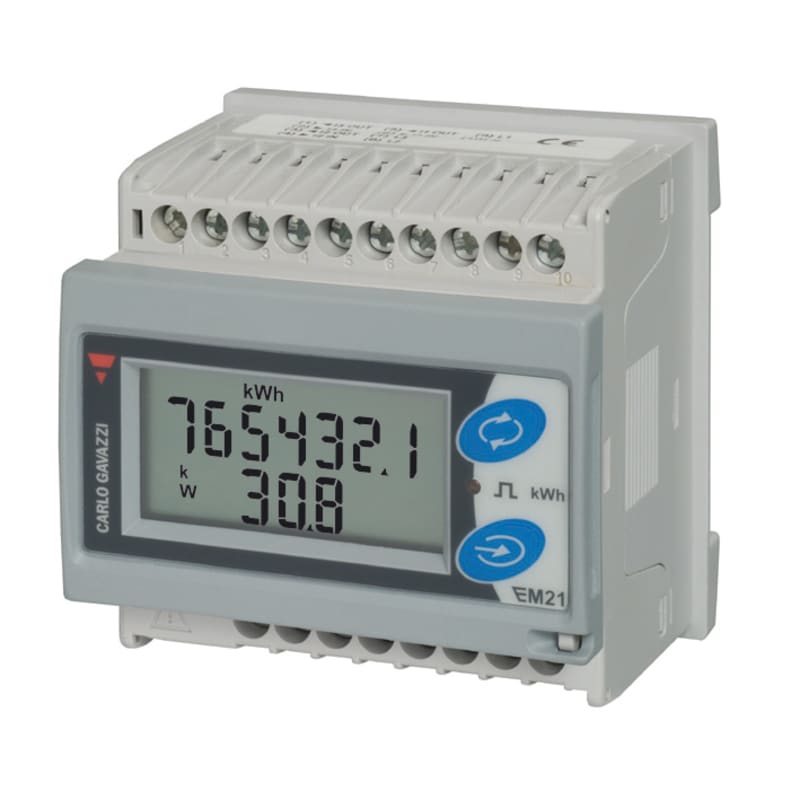

3-Phase kWh meter pulse

Carlo Gavazzi EM21072DAV53XOXX Manufacturer description: Three-phase Energy analyzer, 160 to 240 V L-N, 277 to 415 V L-L, 5 (6) A, Pulse output. EM21072DAV53XOXX 3-phase meter.

Manufacturer part number (MPN)

EM21072DAV53XOXX

Sales unit

pcs

El-nummer (NO)

8200677

ETIM class

SC001506

Voltage inputs

1-phase (2-wire), 220 V L-N; 1-phase (2-wire), 230 V L-N; 1-phase (2-wire), 240 V L-N; 3-phase (4-wire), 220/380 V; 3-phase (4-wire), 230/400 V; 3-phase ( 4-wire), 240/415 V; 3-phase (3-wire), 380 V L-L; 3-phase (3-wire), 400 V L-L; 3-phase (3-wire), 415 V L-L

Frequency

50Hz; 60Hz

Current inputs

5 A current transformers

Energy metering

Consumption and generation

Power supply

Self power supply

Approvals, marks, declarations

CE (Europe); cULus (North America); UKCA (UK)

E-number (NO)

8200677

E-number (SE)

0921002

Mounting method

DRA (DIN-rail adaptor)

Model

Measurement transformer

Type of indication

Digital

Max. current (Imax)

6 A

Width in number of modular spacings

4

Number of positions total (counter)

7

Type of meter

Electronic

Degree of protection (IP)

IP40

Type of interface

None

Energy type

Effective power and reactive power

Tariff type

Two-tariff

Tariff control

External

Pulse output

Electrical

Accuracy class

B

Pole type

Three conductor/four conductor

Nominal current (In)

5 A

Country of origin

Italy

HS Code

9031.80
