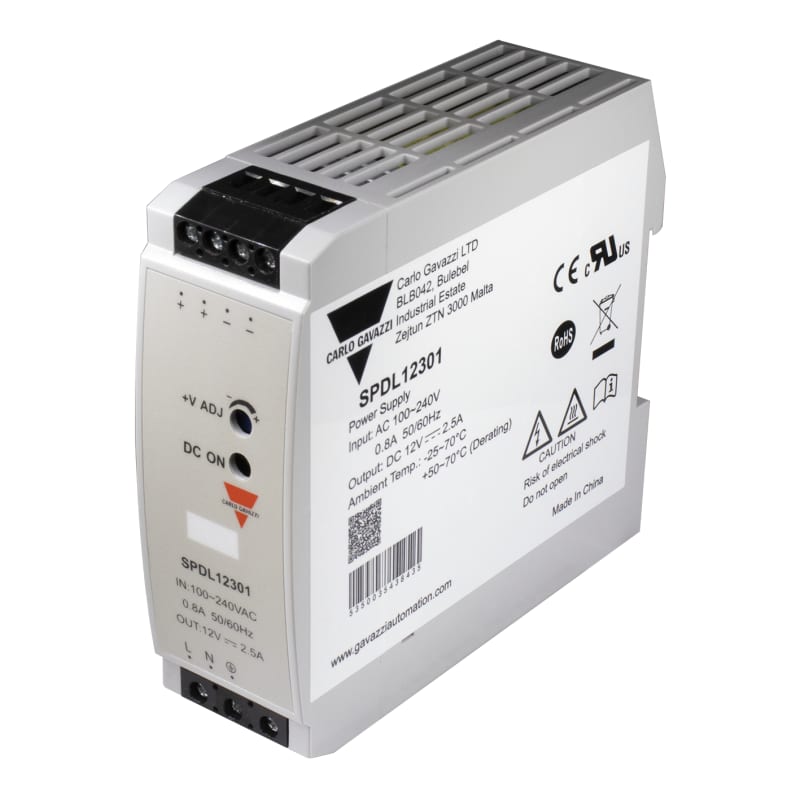

Power supply 30W 12VDC 2.5A
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi SPDL12301 Manufacturer description: Switching Power Supply, AC/DC, 30W, 12V, Screw Terminals, IP20, DIN-Rail Mounting, Over-load, Over-voltage and Short-circuit Protections, plastic housing. Power supply 30W 12VDC 2,5A. For DIN-rail mounting and screw connection.
Technical Specifications
- Manufacturer part number (MPN)
- SPDL12301
- EAN / GTIN
- 5350035438435
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Rated output voltage DC
- 12 V
- Power output
- 30 W
- Max. output current DC
- 2.5 A
- Terminal type
- Screw connection
- Rail mounting possible
- Yes
- Wall mounting possible
- No
- Degree of protection (IP)
- IP20
- Width
- 32 mm
- Height
- 97.6 mm
- Depth
- 103.7 mm
- E-number (NO)
- 6620930
- E-number (SE)
- 5213762
- Voltage type (supply voltage)
- AC
- Max. output current 1
- 2.5 A
- Max. output current 2
- 2.5 A
- Max. output current 3
- 2.5 A
- Nominal value output voltage 1
- 12 V
- Nominal value output voltage 2
- 12 V
- Nominal value output voltage 3
- 12 V
- Nominal value output current 1
- 2.5 A
- Nominal value output current 2
- 2.5 A
- Nominal value output current 3
- 2.5 A
- Power consumption
- 0.9 VA
- Type of electric connection
- Screw connection
- Width in number of modular spacings
- 2
- Built-in width
- 32 mm
- Built-in height
- 130 mm
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 5350035438435
- SAP 1200833864
- Code 84020615
Product Documentation
