Level Relay 1 level DIN 24VAC/DC
Pricing
Request a quote
We reply within 24 hours
Product Description

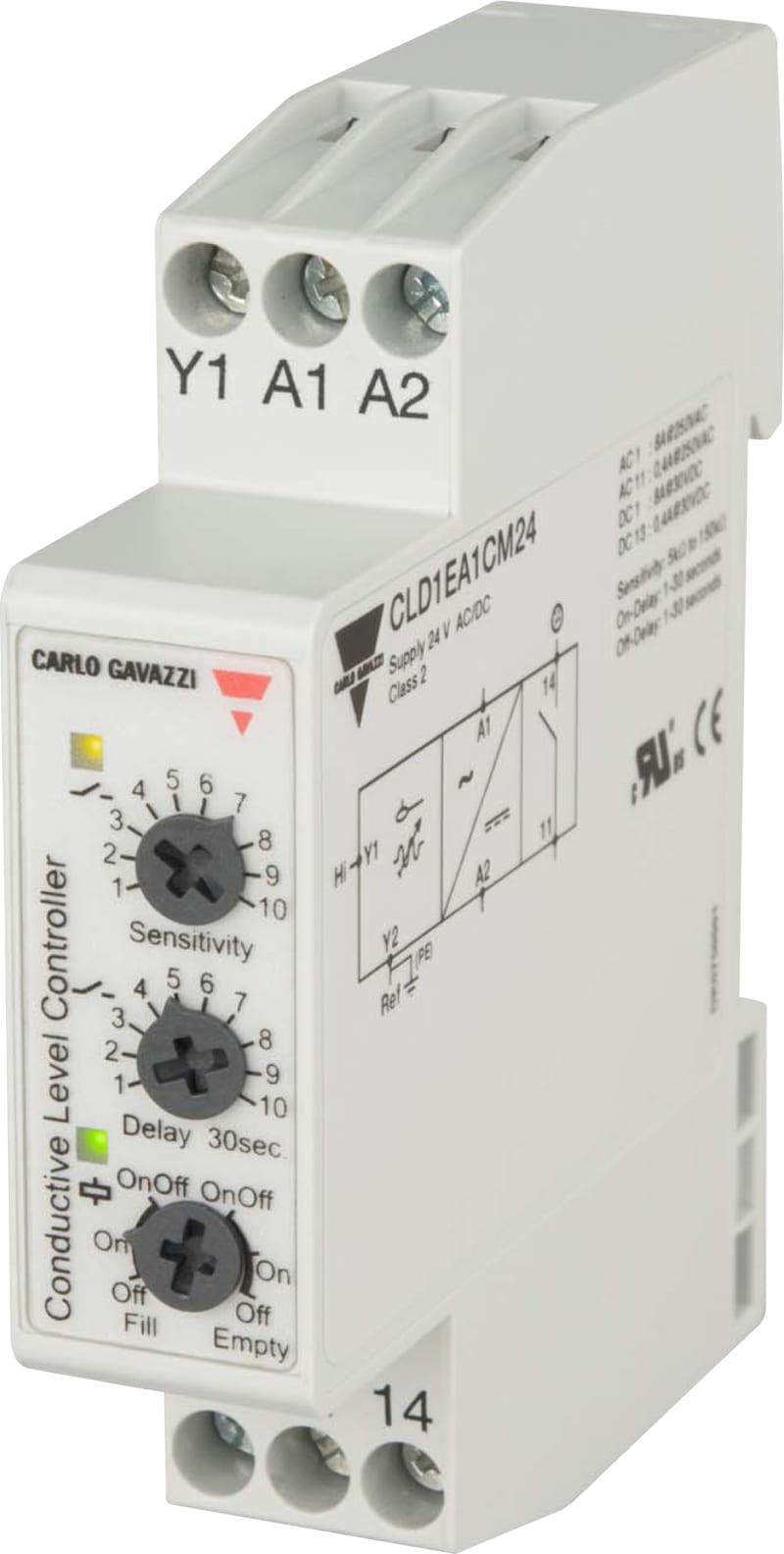

Carlo Gavazzi CLD1EA1CM24 Manufacturer description: Conductive 1-point level controller, DIN rail mount, Filling-emptying function, Sensitivity 5-150 K ohm, 1 SPST relay output, Supply voltage 24V AC/DC, 17,5x81x60,2mm housing, IP20. CLD1EA1CM24 Level Relay.
Technical Specifications
- Manufacturer part number (MPN)
- CLD1EA1CM24
- EAN / GTIN
- 5709870381299
- Sales unit
- pcs
- Number of input probes
- 2
- Adjustable sensitivity
- Yes
- Number of relay outputs
- 1
- Min on-delay time
- 1 s
- Max on-delay time
- 30 s
- Min off-delay time
- 1 s
- Max off-delay time
- 30 s
- Rated operating voltage
- 19.2 V ... 28.8 V
- Connection type
- Screw terminals
- Product width
- 17.5 mm
- E-number (NO)
- 4367577
- E-number (SE)
- 3864374
- Operating voltage AC 50 Hz
- 0–5 V
- Operating voltage AC 60 Hz
- 0–5 V
- Supply voltage AC 50 Hz
- 19.2–28.8 V
- Supply voltage AC 60 Hz
- 19.2–28.8 V
- Supply voltage DC
- 19.2–28.8 V
- Rated switch current
- 8 A
- Voltage type (operating voltage)
- AC
- Type of electric connection
- Screw connection
- Rated control supply voltage AC 50 Hz
- 24 V
- Rated control supply voltage AC 60 Hz
- 24 V
- Rated control supply voltage DC
- 24 V
- Voltage type for actuating
- AC/DC
- Number of inputs for electrodes
- 1
- Min. adjustable operate delay time
- 1 s
- Max. permitted operate delay time
- 30 s
- Min. adjustable off-delay time
- 1 s
- Max. permitted off-delay time
- 30 s
- Number of contacts as normally open contact
- 1
- Physical measurement principle
- Conductive
- Width
- 17.5 mm
- Height
- 81 mm
- Depth
- 60.2 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870381299
- SAP 1000250088
- Code 8208208
Product Documentation
