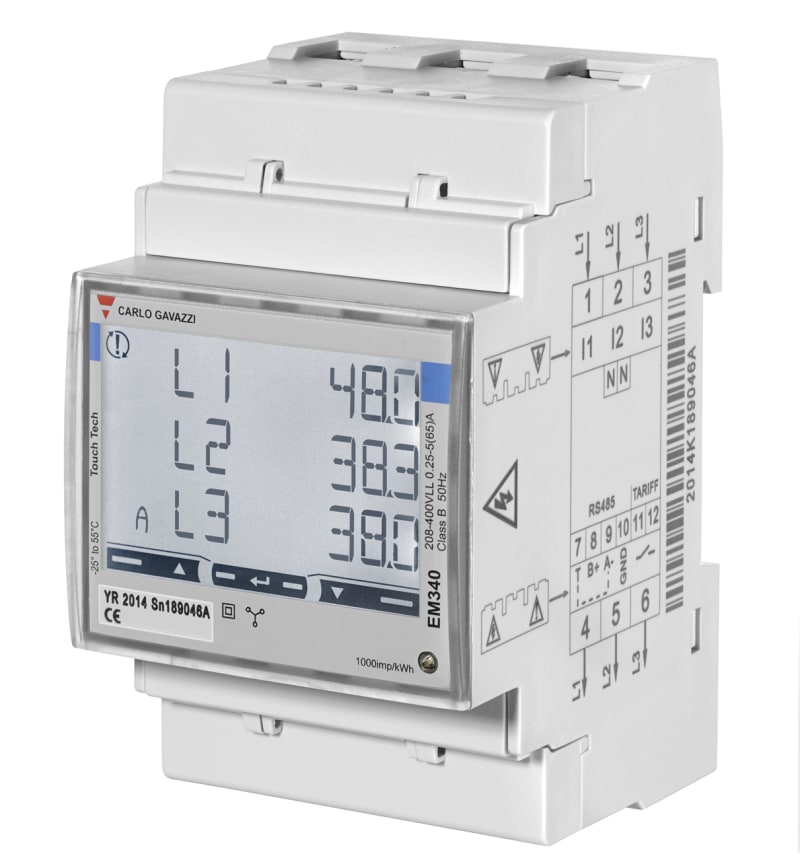

Carlo Gavazzi EM340DINAV23XS1PFA 3-Phase MID Energy Meter 5(65) A RS485 Modbus
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi EM340 three-phase MID-certified energy analyser for 120-230 V L-N / 208-400 V L-L systems with a 5(65) A direct current input and RS485 Modbus RTU communication. Class B accuracy, DIN-rail mounted (3 modules) with IP51 protection, digital display and optical pulse output. Suitable for fiscal sub-metering, tenant billing and consumption monitoring.
Technical Specifications
- Manufacturer part number (MPN)
- EM340DINAV23XS1PFA
- EAN / GTIN
- 8030956070194
- Sales unit
- pcs
- Voltage inputs
- 2-phase (3-wire), 120/240 V; 3-phase (4-wire), 120/208 V; 3-phase (4-wire), 127/220 V; 3-phase (4-wire), 220/380 V; 3-phase (4-wire), 230/400 V; 3-phase (3-wire), 240 V L-L; 3-phase (3-wire), 380 V L-L; 3-phase (3-wire), 400 V L-L
- Frequency
- 50Hz
- Energy metering
- Consumption
- Communication port and protocol
- RS485 (Modbus RTU)
- Power supply
- Self power supply
- Approvals, marks, declarations
- CE (Europe); MID (Europe, fiscal metering); UKCA (UK)
- E-number (NO)
- 8200404
- E-number (SE)
- 0934007
- Mounting method
- DRA (DIN-rail adaptor)
- Model
- Direct measurement
- Suitable for
- Purchase
- Type of indication
- Digital
- Max. current (Imax)
- 65 A
- Width in number of modular spacings
- 3
- Number of positions total (counter)
- 8
- Type of meter
- Electronic
- Degree of protection (IP)
- IP51
- Type of interface
- Modbus
- Energy type
- Effective power and reactive power
- Tariff type
- Two-tariff
- Tariff control
- External
- Approval
- Measuring Instruments Directive
- Pulse output
- Optical
- Accuracy class
- B
- Pole type
- Three conductor/four conductor
- Nominal current (In)
- 5 A
- Country of origin
- China
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 8030956070194
- SAP 1200453990
- Code 82514049
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
SMB sensor RGB temp CO2
SHSUCOTL
Carlo Gavazzi
Level Probe Conductive Isolated 3 Electrodes (VNYI3)
Carlo Gavazzi
3-Phase nettvakt with undervoltage 400V
DPA53CM48
Carlo Gavazzi
Photoelectric Sensor IO link pole 6M cable
PD30CTPR60BPA2IO
Carlo Gavazzi
Carlo Gavazzi RGC1A60A25KKE 1-Pole DIN-Rail Solid-State Relay 600 V AC 25 A Zero-Cross
Carlo Gavazzi
Phase Sequence and Phase Loss Relay (DPA01DM48)
Carlo Gavazzi
3 pole 16A, enclosed IP54 (SDS316)
Carlo Gavazzi
Level Probe Conductive Isolated 4 Electrodes (VNI4)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy EM340DINAV23XS1PFA?
- EM340DINAV23XS1PFA can be ordered from cballast.com as a Carlo Gavazzi catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Carlo Gavazzi product?
- The manufacturer part number is EM340DINAV23XS1PFA.
- What is the HS code for EM340DINAV23XS1PFA?
- The customs tariff (HS) code for EM340DINAV23XS1PFA is 9030.90.
- Who manufactures EM340DINAV23XS1PFA?
- EM340DINAV23XS1PFA is a Carlo Gavazzi product in the Sensors & Instrumentation range.
- Is a datasheet available for EM340DINAV23XS1PFA?
- Yes — the EM340DINAV23XS1PFA datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for EM340DINAV23XS1PFA?
- The minimum order quantity is 1.
- Is EM340DINAV23XS1PFA available?
- Yes — EM340DINAV23XS1PFA is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
