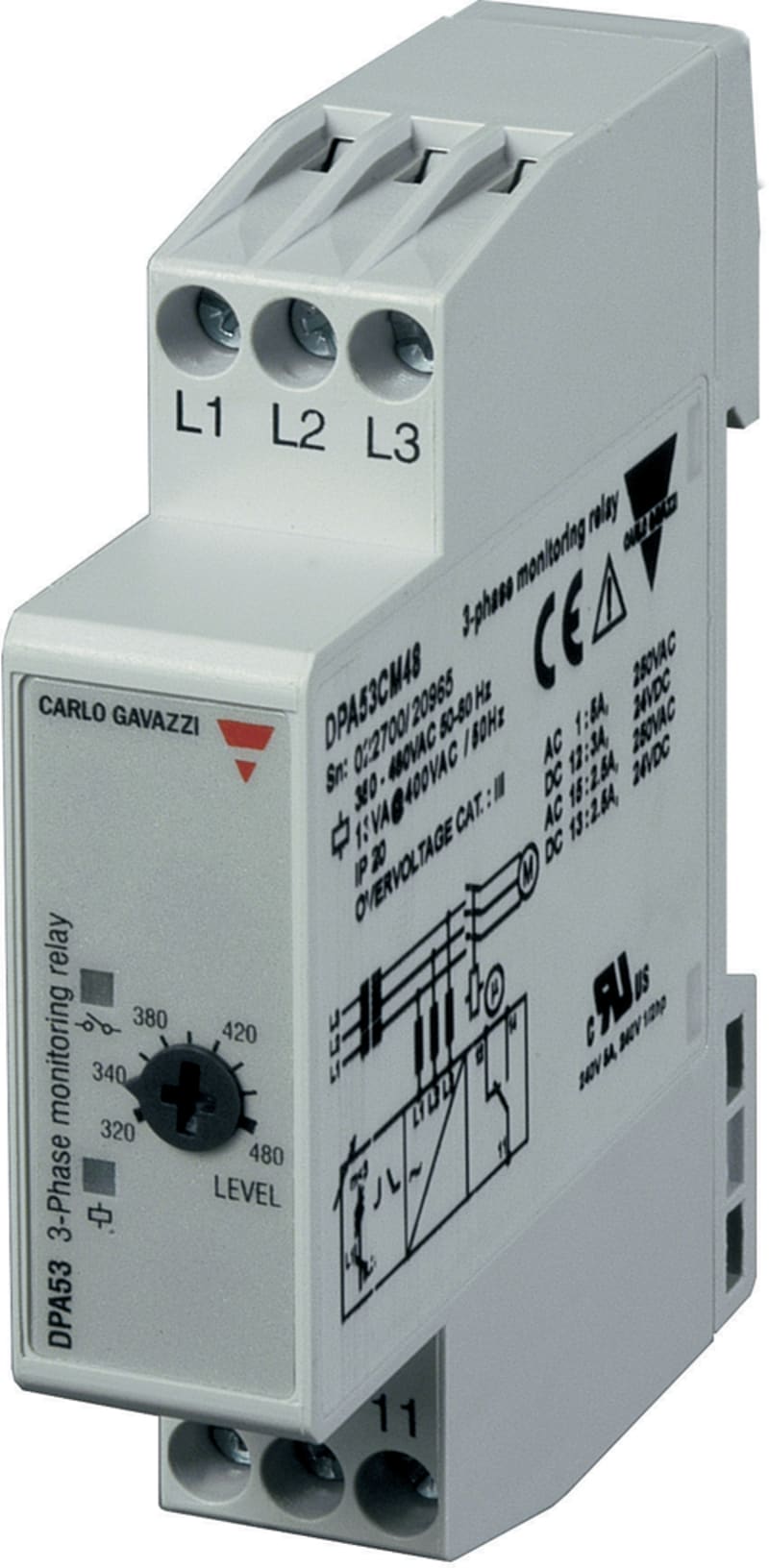

3-Phase nettvakt with undervoltage 400V

Carlo Gavazzi DPA53CM48 Manufacturer description: 3-phase monitoring relay for phase loss, sequence, undervoltage, nominal range 380-480 V AC, SPDT relay output, regenerated voltage detection, 17.5 mm DIN-rail housing. DPA53CM48 Phase monitoring relay.

Manufacturer part number (MPN)

DPA53CM48

EAN / GTIN

8030956005431

Sales unit

pcs

Mounting

Mini DIN-rail

Function

Phase sequence; Phase loss; Undervoltage

3-phase voltage range

380-480 Vac; 440-480 Vac

Frequency range

50-60 Hz

Output

1 relay

Time delay

No delay adjustment

Approvals, marks, declarations

for Europe; for North America; for China; for Australia

Setting method through NFC

No

E-number (NO)

4134831

E-number (SE)

3864707

Type of electric connection

Screw connection

Rated control supply voltage AC 50 Hz

380–480 V

Rated control supply voltage AC 60 Hz

380–480 V

Voltage type for actuating

AC

Min. adjustable delay-on energization time

0 s

Min. adjustable off-delay time

0 s

Number of contacts as change-over contact

1

Width

17.5 mm

Height

81 mm

Depth

67.2 mm

Country of origin

China

HS Code

9030.90

• EAN 8030956005431
• SAP 1000140504
• Code 8645064
