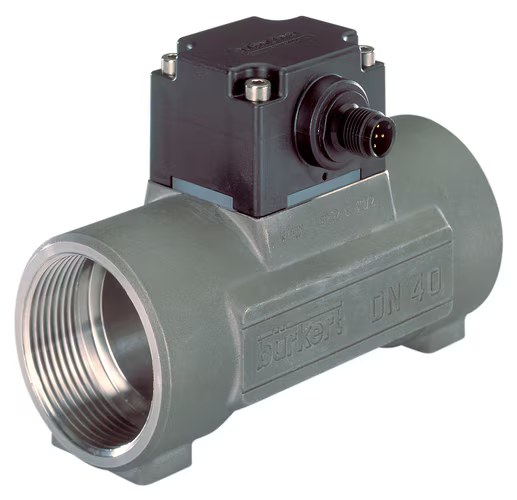

Bürkert Flowmeter with Paddle Wheel for Continuous Flow Measurement

The flowmeter with paddle wheel is available as a magnetic or an optical variant. The flowmeter in its magnetic variant is specially designed for use with neutral or mildly aggressive, particle-free liquids. The optical variant is only intended for use with infrared-transmissive liquids. Type 8012 consists of a fitting (Type S012) and an electronic module (Type SE12) that are screwed together. Bürkert’s proprietary fitting system ensures simple installation into all pipelines from DN 06…DN 65. Type 8012 can also be integrated in customer-specific block systems. Depending on the particular electronic module variant, Type 8012 is either supplied with one pulse output or with a pulse output and a 4…20 mA current output signal. The pulse output, which can be transmitted and processed by a Bürkert Remote Transmitter/Controller, generates a configurable frequency proportional to the volume flow rate, or can be used as a switching output.

Housing

PPS

Screw

Stainless steel A4

Seal

EPDM

Fixed connector

PA

Cable gland

Cable gland in PA with 1 m connected cable in PVC (on request)

Axis and bearing

Ceramics (Al2O3)

Paddle wheel

PVDF (blue)

Holder

PVDF

Fitting body

Brass, stainless steel 1.4404/316L, PVC or PP

Compatibility

Electronic module Type SE12 compatible with Bürkert fitting Type S012

Pipe diameter

DN 06…DN 50 (DN 65 on request)

Measuring element

Optical, infra-red (or magnetic paddle wheel, on request)

Measuring range

Flow rate: 0.5…1000 l/min (0.13…265 gpm)

Measurement deviation

Teach-in : ± 1 % of the measured value at teach-in flow rate value

Linearity

± 0.5 % of full scale

HS Code

9026.10
