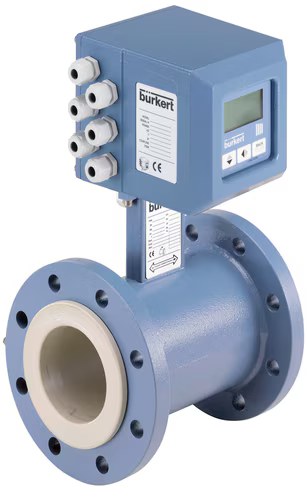

Bürkert Electro-magnetic Flowmeter with a Flange

The flowmeter Type 8055, which consists of a sensor Type S055 (compact or remote variant) connected to the electronics assembly Type SE56 (without a display in the compact variant or with a display in the compact or remote variant), is designed for liquids with a minimum conductivity of 5 μS/cm. Combined with a dosing valve, the flowmeter Type 8055 can also be used for high-precision filling and dosing procedures.

Standard compact version

Standard remote version with Basic compact version with Compact version without Sensor housing: Carbon steel painted (stainless steel 304 or 316 on request) Electrode: Stainless steel 316L (Alloy C, Titanium, Tantalum, Platinum-rhodium on request) Lining: PP or ebonite (hard rubber) (PTFE on request) Seal: FKM (EPDM on request) with PP lining Pipe diameter: DN 25…DN 200 (upper DN on request) Measuring range: 0…0.72 m3/h to 0…1130 m3/h Measurement deviation: If used with SE56 transmitter Repeatability: If used with SE56 transmitter Vacuum resistance: 200 mbar (2.9 PSI) absolute at 100 °C (212 °F) Fluid pressure: PN 16 (232 PSI) with PP lining minimum conductivity: 5 µS/cm (or 20 µS/cm with demineralised water) Process connection: Flange EN1092‑1, ANSI B16‑5, (JIS on request) Electrical connection: 2 cable glands PG9 (for remote version of the sensor) Degree of protection according to ­IEC/: If use with SE56 transmitter:

HS Code

9026.10
