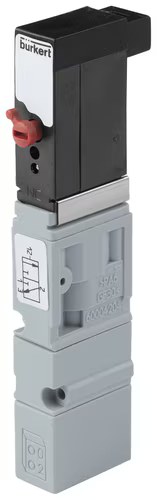

Bürkert 3/2-WAY or 2 X 3/2-WAY Solenoid Valve for Pneumatic Applications

Type 6524 consists of a pilot flipper solenoid valve Type 6144 and a pneumatic seat valve. The flipper action system allows the switching of high pressures combined with low power consumption and short switching times. All the valves are equipped with manual override as standard. The 2 x 3/2-way valve variant is a combination of two pilot flipper solenoid valves Type 6144 and one pneumatic seat valve. The valve is also available with a second connection (press-fit cable), which makes a safe shut-off function possible.

Product properties

3/2-way valve 2 × 3/2-way valve

Seal

FKM, NBR, PUR

Body

PPS, polyamide

Weight

20 g 40 g

Orifice

DN 4.0

Duty cycle

100 % continuous operation

Switching frequency

Approx. 1000 c.p.m.

Switching time

Opening: < 10 ms

Operating voltage

24 V DC

Nominal power

0.8 W 2 × 0.8 W

Voltage tolerance

± 10 %

Operating medium

Lubricated or oil-free compressed dry air, neutral gases (5 μm filter recommended)

Medium temperature

- 10 °C…+ 50 °C

Electrical connection

Rectangular plug with 2 pins, raster 5.08 mm Rectangular plug with 3, pins raster 2.54 mm

Degree of protection

IP40 with rectangular cable plug

HS Code

8481.80
