Product Description

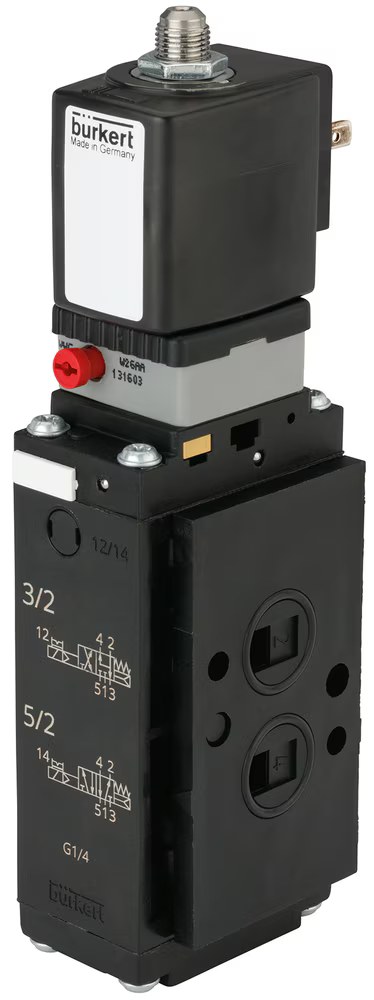

Type 6518 is a pilot-operated 3/2-way valve and Type 6519 is a 3/2, 5/2 or 5/3-way valve. Together they form a series. The valves can be used individually or on blocks. They operate without continuous air consumption and are used to control single- or double-acting actuators. The use of high-quality materials allows the valves to be used even in outdoor and chemically aggressive environments. The series includes devices with Ex approval and NAMUR flange design. With the monostable valve circuit functions C, D, and H, a safety level of SIL2 can be achieved in accordance with IEC 61508, depending on the architecture of the safety system.
Technical Specifications
- Seal
- NBR and PUR (5/2-way), NBR (5/3-way)
- Body
- Pilot valve: Polyamide, reinforced glass-fibre
- Threaded bushing
- Brass (stainless steel on request)
- Orifice
- DN 8…DN 9
- Circuit function
- C, H, L, N, W and Z
- Thermal insulation class of
- Polyamide coil class B
- Compressed air quality
- ISO 8573‑1:2010, class 7.4.4
- Duty cycle
- 100 % continuous operation
- Opening
- Pressure build-up 0…10 %
- Closing
- Pressure reduction 100…90 %
- Electrical connection
- Plug contacts according to DIN EN 175301 - 803 form A for cable plug Type 2518
- Supply connection 1, 3, 5
- Threaded G ¼, NPT ¼, flange-mountable
- Working port 2, 4
- Threaded G ¼, NPT ¼
- Auxiliary pilot air port
- M5
- Degree of protection
- IP65 with cable plug
Standards & Compliance
- HS Code
- 8481.80
Cross References
- Burkert 6519
- Buerkert 6519
- Bürkert 6519
- Type 6519
- Burkert Type 6519
