Abiko KRF 300-20 Copper Tube Cable Lug 300 mm² M20
Pricing
Request a quote
We reply within 24 hours
Product Description

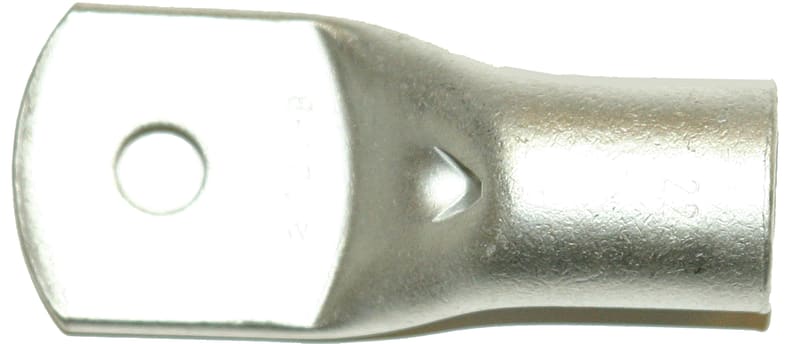

Abiko KRF 300-20 — compression (crimp) copper tube cable lug for terminating a 300 mm² conductor onto an M20 stud. The barrel is formed from 99.95% electrolytic copper, tin-plated (Cu/Sn), with a ring tongue and a cable inspection hole for correct conductor insertion. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors; crimped with matching Abiko/Elpress dies to a gas-tight, low-resistance connection whose crimp performance is verified to IEC 61238-1. Applied in low-voltage power distribution, switchboards, motor terminations and marine and offshore installations.
Technical Specifications
- Type
- Compression (crimp) copper tube cable lug (ring tongue)
- Conductor cross-section
- 300 mm²
- Stud / bolt hole
- M20
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5) copper
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole
- Series
- KRF
- Crimp system
- Crimp connection, performance verified to IEC 61238-1
- Manufacturer part number (MPN)
- KRF 300-20
- EAN / GTIN
- 7070920007741
- Sales unit
- pcs
- Package quantity
- 25 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920007741
- SAP 1000072665
- Code 8737702
Product Documentation
More from Abiko
Abiko
Abiko A 1507 FLFH Fully-Insulated Flag Piggyback Flat-Tab 1.5 mm² (Red)
Abiko
Abiko 50-12 Copper Tube Cable Lug 50 mm² M12, 90° Angled Palm
50-12 90 GR
Abiko
HELKRYMPISOL. FLASTSIFTHYL.2,5 (ads 2507 Flfc)
ADS 2507 FLFC
Abiko
Abiko B 409 H Uninsulated Flat Tab 0.75–1.5 mm², 6.3 × 0.8 mm
Abiko
Abiko A 4604 FL Insulated Flat Receptacle, 4.8 × 0.8 mm
Abiko

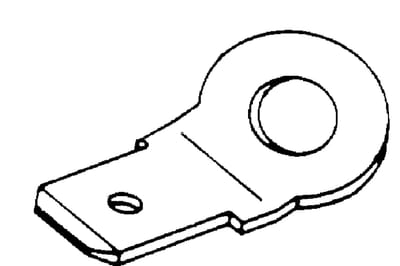

Abiko B 1457 H 6 Uninsulated Flat-Tab Screw Terminal M6
Abiko

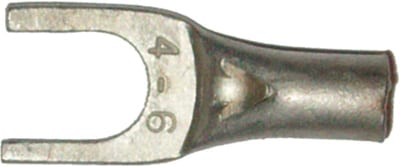

Abiko KR 4-4 Copper Tube Cable Lug 4 mm² M4 (Fork Tongue)
