Abiko KR 4-4 Copper Tube Cable Lug 4 mm² M4 (Fork Tongue)
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko KR 4-4 G — compression (crimp) copper tube cable lug for terminating a 4 mm² conductor onto an M4 stud. The barrel is formed from 99.95% electrolytic copper, tin-plated (Cu/Sn), with a fork/spade tongue and a cable inspection hole for correct conductor insertion. The tongue is an open fork (spade) that slides under a partly-loosened nut without full removal. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors; crimped with matching Abiko/Elpress dies to a gas-tight, low-resistance connection whose crimp performance is verified to IEC 61238-1. Applied in low-voltage power distribution, switchboards, motor terminations and marine and offshore installations.
Technical Specifications
- Type
- Compression (crimp) copper tube cable lug (fork/spade tongue)
- Conductor cross-section
- 4 mm²
- Stud / bolt hole
- M4
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5) copper
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole
- Series
- KR
- Crimp system
- Crimp connection, performance verified to IEC 61238-1
- Manufacturer part number (MPN)
- KR 4-4 G
- EAN / GTIN
- 7070920016675
- Sales unit
- pcs
- Package quantity
- 100 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920016675
- SAP 1200071933
- Code 81923796
Product Documentation
More from Abiko
Abiko

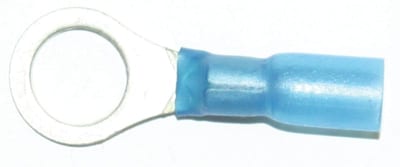

Krympinsulated Ring Terminal 2,5Q-5,3
A 2553 RC
Abiko

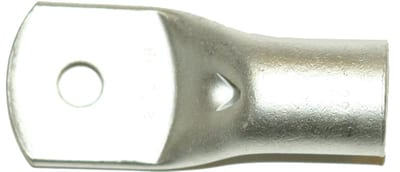

Abiko KRF 300-16 Copper Tube Cable Lug 300 mm² M16
Abiko
Abiko KR 6-5 Copper Tube Cable Lug 6 mm² M5 (Fork Tongue)
KR 6-5 G
Abiko

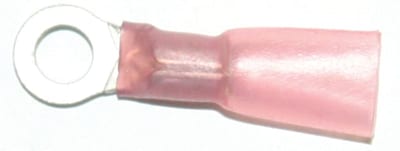

Krympinsulated Ring Terminal 1,5Q-3,7
A 1537 RC
Abiko
Krympinsulated Ring Terminal 1,5Q-5,3
A 1553 RC
Abiko

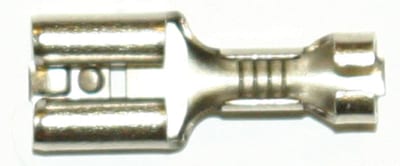

Abiko B 1507 FL Uninsulated Flat Receptacle, 6.3 × 0.8 mm
Abiko

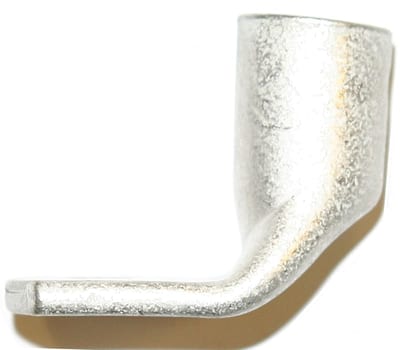

Abiko KRF 25-8 Copper Tube Cable Lug 25 mm² M8, 90° Angled Palm
