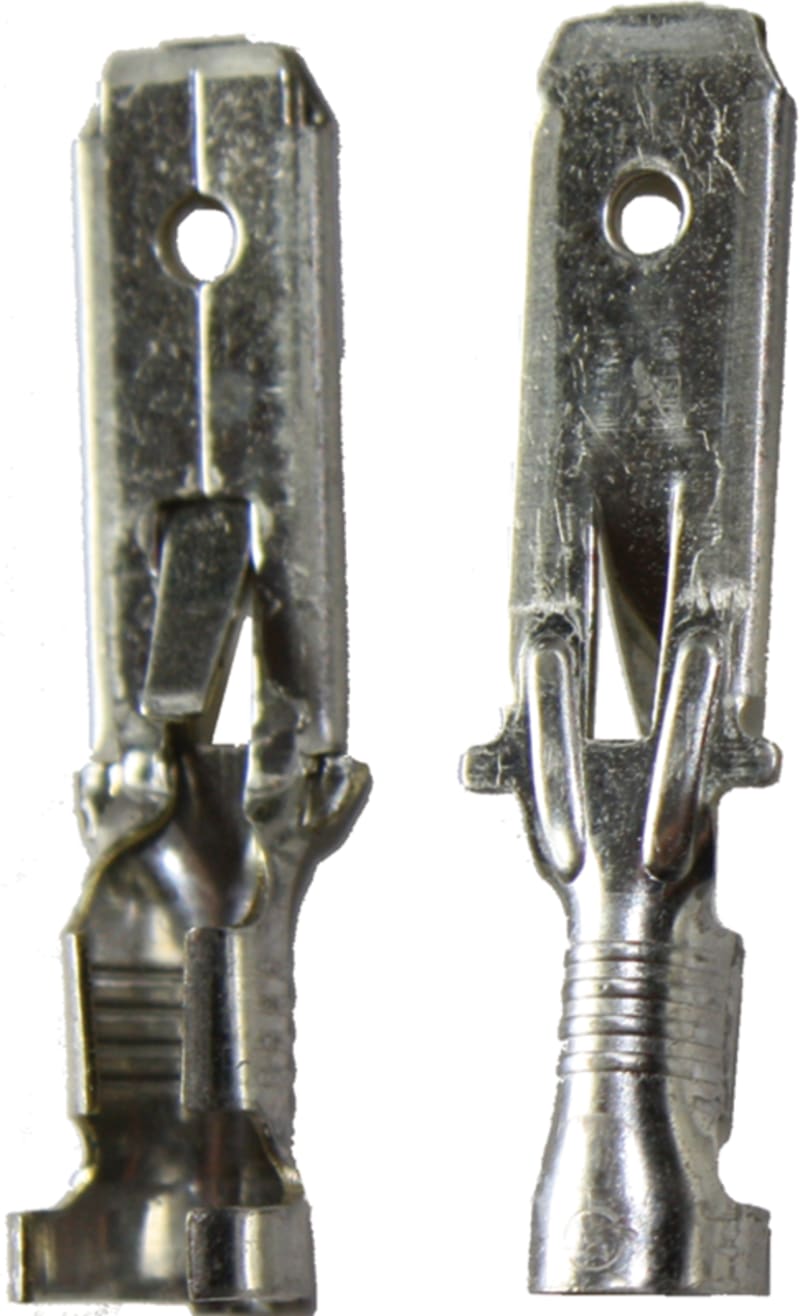

Abiko B 409 H Uninsulated Flat Tab 0.75–1.5 mm², 6.3 × 0.8 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko B 409 H — uninsulated flat tab (male push-on blade) for a 6.3 × 0.8 mm flat push-on connection terminating a 0.75–1.5 mm² conductor. Tin-plated brass contact to DIN 46247. Crimped to stranded or flexible copper conductors (IEC 60228) with matching Abiko/Elpress dies. Applied in control panels, switchboards, appliance wiring and marine installations.
Technical Specifications
- Type
- Uninsulated flat tab (male push-on blade) per DIN 46247
- Conductor cross-section
- 0.75–1.5 mm²
- Tab dimension
- 6.3 × 0.8 mm
- Feature
- Retention barb (locks onto the mating tab)
- Material
- Brass, tin-plated
- Conductor
- Stranded / flexible copper (IEC 60228)
- Standard
- DIN 46247
- Series
- Abiko B (uninsulated)
- Manufacturer part number (MPN)
- B 409 H
- EAN / GTIN
- 7070920006195
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920006195
- SAP 1200071904
- Code 81924005
Product Documentation
