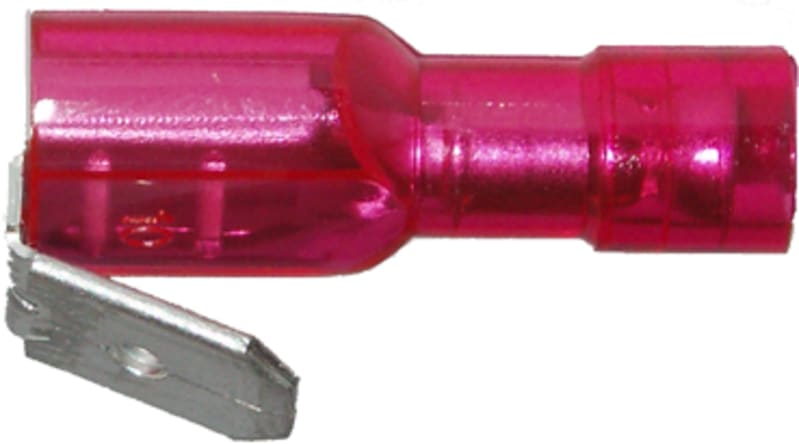

Abiko A 1507 FLFH Fully-Insulated Flag Piggyback Flat-Tab 1.5 mm² (Red)
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko A 1507 FLFH — fully-insulated flag (angled) flat push-on tab terminating a 1.5 mm² conductor on a 6.3 × 0.8 mm blade, with an integral piggyback tap tab for daisy-chaining a second connection. Tin-plated brass contact and tin-plated copper crimp barrel in a full-body halogen-free Nylon (PA) easy-entry sleeve, colour-coded red for the conductor range; operating temperature -20 °C to +105 °C, insulation UL-approved. Crimped to stranded or flexible copper conductors (IEC 60228) with matching Abiko/Elpress dies for control-panel, switchboard, appliance and marine wiring.
Technical Specifications
- Type
- Fully-Insulated flag piggyback flat push-on tab per DIN 46247
- Conductor cross-section
- 1.5 mm²
- Tab dimension
- 6.3 × 0.8 mm
- Orientation
- Flag (angled entry)
- Feature
- Integral piggyback tap tab for daisy-chaining
- Insulation colour code
- Red
- Insulation
- Nylon (PA), halogen-free, easy-entry (full-body sleeve)
- Material
- Brass contact, tin-plated; copper crimp barrel, tin-plated
- Conductor
- Stranded / flexible copper (IEC 60228)
- Operating temperature
- -20 °C to +105 °C
- Approvals
- Insulation UL-approved
- Standard
- DIN 46247
- Series
- Abiko A (pre-insulated)
- Manufacturer part number (MPN)
- A 1507 FLFH
- EAN / GTIN
- 7070920011328
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920011328
- SAP 1200072102
- Code 81921787
Product Documentation
More from Abiko
Abiko
Abiko 50-12 Copper Tube Cable Lug 50 mm² M12, 90° Angled Palm
50-12 90 GR
Abiko
HELKRYMPISOL. FLASTSIFTHYL.2,5 (ads 2507 Flfc)
ADS 2507 FLFC
Abiko
Abiko B 409 H Uninsulated Flat Tab 0.75–1.5 mm², 6.3 × 0.8 mm
Abiko
Abiko A 4604 FL Insulated Flat Receptacle, 4.8 × 0.8 mm
Abiko
Abiko B 1457 H 6 Uninsulated Flat-Tab Screw Terminal M6
Abiko
Abiko KR 4-4 Copper Tube Cable Lug 4 mm² M4 (Fork Tongue)
KR 4-4 G
Abiko
Krympinsulated Ring Terminal 2,5Q-5,3
A 2553 RC
Abiko
Abiko KRF 300-16 Copper Tube Cable Lug 300 mm² M16
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy A 1507 FLFH?
- A 1507 FLFH can be ordered from cballast.com as a Abiko catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Abiko product?
- The manufacturer part number is A 1507 FLFH.
- What is the HS code for A 1507 FLFH?
- The customs tariff (HS) code for A 1507 FLFH is 8536.90.
- Who manufactures A 1507 FLFH?
- A 1507 FLFH is a Abiko product in the Electrical Components range.
- Is a datasheet available for A 1507 FLFH?
- Yes — the A 1507 FLFH datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for A 1507 FLFH?
- The minimum order quantity is 1.
- Is A 1507 FLFH available?
- Yes — A 1507 FLFH is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
