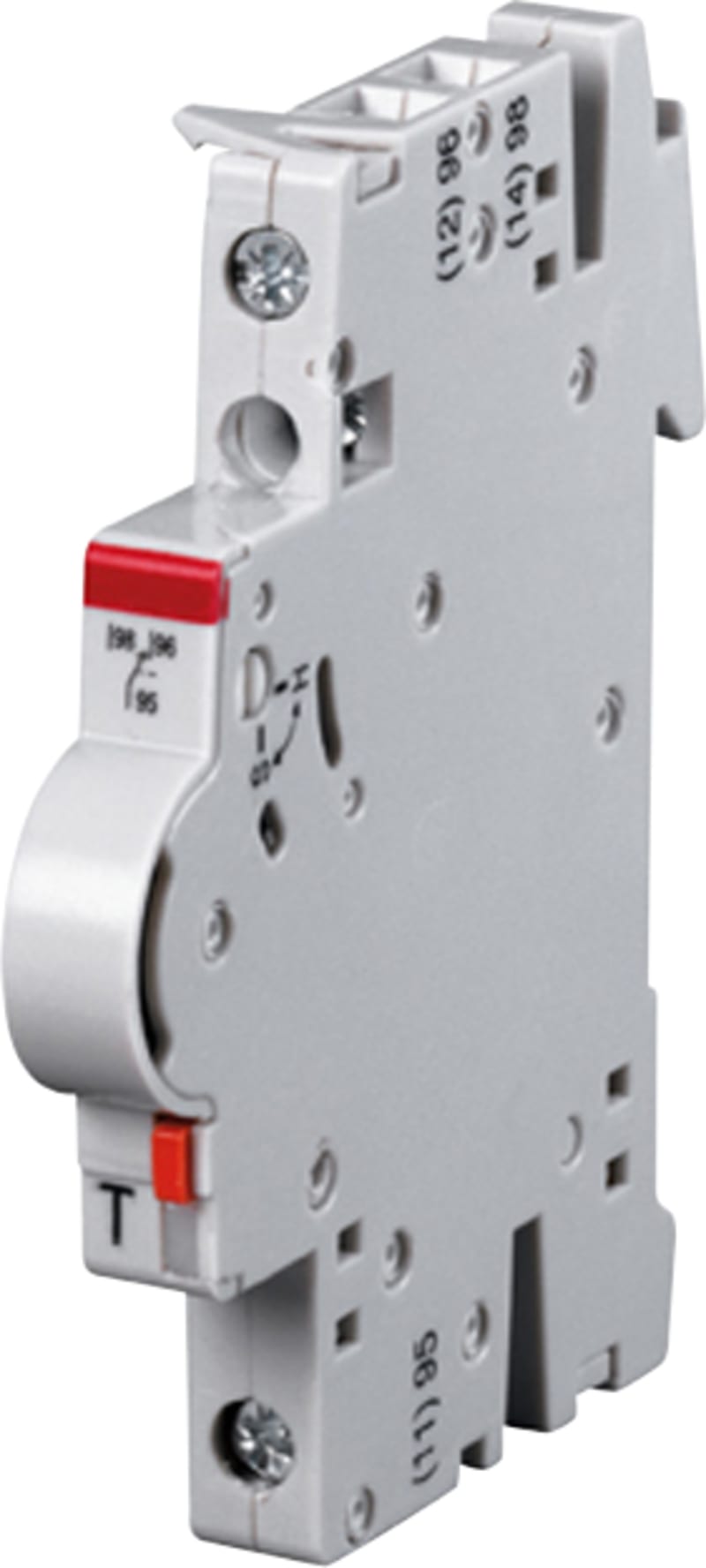

SIGNAL/Auxiliary contact S2C-SH6R
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB S2C-S/H6R — Choice through a selector between indication of the position of the device’s contacts and signalling of a fault (overcurrent/short-circuit for MCBs and RCBOs, earth fault for RCCBs and RCBOs). Suitable for MCBs S 200 series, S300P, SN 201 series, RCCBs F 200 series, RCBOs DS201, DS202C, DS 200 series, SD200.
Technical Specifications
- Manufacturer part number (MPN)
- S2C-S/H6R
- EAN / GTIN
- 4016779563819
- Sales unit
- pcs
- Country of Origin
- Czechia
- Lead Time
- 0 day
- Product Sales Status
- Active
- Configuration Only
- No
- Criticality
- No
- Note
- No
- Product Availability Class
- From stock if available, otherwise Target delivery time is
- Storage Location
- 4001
- Technical Information
- +häl
- Recyclability Rate of the Product acc. to EN45555
- Design for Closing Resource Loops - Standard EN45555 - 78.6 %
- ABB Site Meeting Group Waste To Landfill Target
- No non-hazardous waste is sent to a landfill
- Offered with Takeback Services
- Take Back for Recycling
- End Of Life Disassembling Instructions
- 9AKK108472A0312
- Environmental Product Declaration - EPD
- 9AKK108468A8787
- Function
- Signal / Auxiliary Contact
- Suitable For
- S200; S200M; S200MT; S300P; F200; DS201; SD200; DS200; S-ARC1; DS-ARC1; S200C + SCC-IH6R; S200TC + SCC-IH6R; DS202CR + DSCC-IH6R; DS203NC + SCC-IH6R
- Suitable for Product Class
- Miniature Circuit Breaker; Residual Current Device
- Number of Auxiliary Contacts NC
- 0
- Number of Auxiliary Contacts NO
- 0
- Power Loss
- 0.5 W; Maximum 0.5 W
- Number of Auxiliary Contacts CO (SPDT)
- 1
- Product Net Width
- 8.8 mm
- Product Net Height
- 85 mm
- Product Net Depth / Length
- 69 mm
- EPLAN Data
- 9AAC179079_EPLAN
- Declaration of Conformity - CE
- 9AKK108468A4564
- Instructions and Manuals
- GHS2007063P0019
- Mounting Position
- right
- ETIM 9
- EC001286 - Auxiliary device for distribution board devices
- UNSPSC
- 39121522
- eClass
- V11.0 : 27143502
- IDEA Granular Category Code (IGCC)
- 4743 >> Auxiliary contact block
- Object Classification Code
- Q
- Standards
- CSA 22.2 No. 235; GB/T 14048.5; IEC/EN 60947-5-1; UL 1077
- Rated voltage
- 230 V
- Installed at the factory
- No
- Width in number of modular spacings
- 0.75
- Device fitting
- Miniature circuit breaker (MCB)
- Additional equipment
- Auxiliary switch
- Voltage type for actuating
- AC/DC
- Number of contacts as change-over contact
- 1
- With auto test for earth leakage function
- No
- Suitable for max. current main contact unit
- 45 A
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4016779563819
- SAP 1000018820
- Code 8155897
Product Documentation
