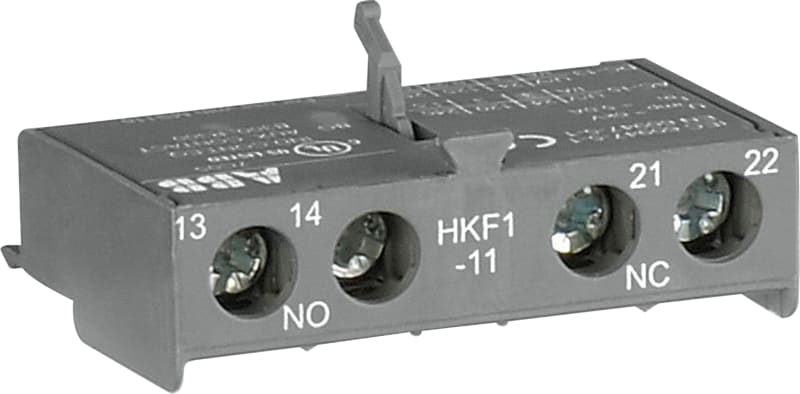

Auxiliary contact HKF1-11 F.MS116
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB HKF1-11 — Auxiliary contacts HKF1 with screw terminals change position with the main contacts of the manual motor starter. They are mounted on the front side of manual motor starters MS116, MS132 or MS165. Auxiliary contacts HKF1 are available as normally open or normally closed contacts.
Technical Specifications
- Manufacturer part number (MPN)
- HKF1-11
- EAN / GTIN
- 4013614320354
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Configuration Only
- No
- Country of Origin
- Germany
- Criticality
- No
- Lead Time
- 999 day
- Note
- No
- Product Availability Class
- Replaced
- Product Sales Status
- Active
- Replacement Part ID
- 64693026
- Storage Location
- 4001
- Product Net Width
- 45 mm
- Product Net Height
- 12.5 mm
- Product Net Depth / Length
- 26.5 mm
- Rated Operational Voltage
- 250 V
- Rated Frequency (f)
- Auxiliary Circuit DC; Auxiliary Circuit 50 Hz; Auxiliary Circuit 60 Hz
- Rated Impulse Withstand Voltage (U imp )
- Auxiliary Circuit 6 kV
- Rated Insulation Voltage (U i )
- 250 V
- Number of Auxiliary Contacts NC
- 1
- Number of Auxiliary Contacts NO
- 1
- Degree of Protection
- IP20
- Electrical Durability
- 100000 cycle
- Mechanical Durability
- Nr. Operations 100000 cycle
- Terminal Type
- Screw Terminals
- Connecting Capacity Auxiliary Circuit
- Flexible with Ferrule 1/2x 0.75 ... 1.5 mm²; Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm²; Flexible 1/2x 0.75 ... 1.5 mm²; Rigid 1/2x 1.0 ... 2.5 mm²
- Tightening Torque
- Auxiliary Circuit 0.8 ... 1.2 N·m
- Wire Stripping Length
- Auxiliary Circuit 8 mm
- Recommended Screw Driver
- M3; Pozidriv 2
- Mounting Position
- 1 ... 6
- Maximum Operating Voltage UL/CSA
- Main Circuit 250 V AC
- Connecting Capacity Auxiliary Circuit UL/CSA
- Flexible 1/2x 16-14 AWG; Stranded 1/2x 16-14 AWG
- Tightening Torque UL/CSA
- Auxiliary Circuit 7 in·lb
- Contact Rating UL/CSA
- B300; R300
- Ambient Air Temperature
- Operation -25 ... +60 °C; Storage -50 ... +80 °C
- Resistance to Shock acc. to IEC 60068-2-27
- 11 ms Pulse 25g
- Resistance to Vibrations
- 5g 3 ... 150 Hz
- A2L Certificate – IEC
- 1SAA963000-4601
- ABS Certificate
- 1SAA963001-0101
- BV Certificate
- 1SAA963002-0201
- CB Certificate
- 1SAA963003-2002
- CCC Certificate
- 2024010305656672
- CQC Certificate
- CQC2017010304032779
- cUL Certificate
- cUL_E137861
- Declaration of Conformity - CCC
- 2020980304001251
- Declaration of Conformity - CE
- 1SAD101100-3410
- Declaration of Conformity - UKCA
- 1SAD201100-3410
- DNV GL Certificate
- 1SAA963001-0304
- EAC Certificate
- 1SAA963000-2701
- LR Certificate
- 1SAA963001-0501; 1SAA963001-0502; 1SAA963000-0505
- RINA Certificate
- 1SAA963002-0802
- UL Certificate
- UL_E137861
- Object Classification Code
- Q
- ETIM 9
- EC000041 - Auxiliary contact block
- eClass
- V11.0 : 27371302
- UNSPSC
- 39121522
- IDEA Granular Category Code (IGCC)
- 4743 >> Auxiliary contact block
- E-Number (Finland)
- 3706015
- E-Number (Norway)
- 4364278
- E-Number (Sweden)
- 3112001
- EAN
- 4013614481413
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4013614320354
- SAP 1000222624
- Code 81118690
Product Documentation
