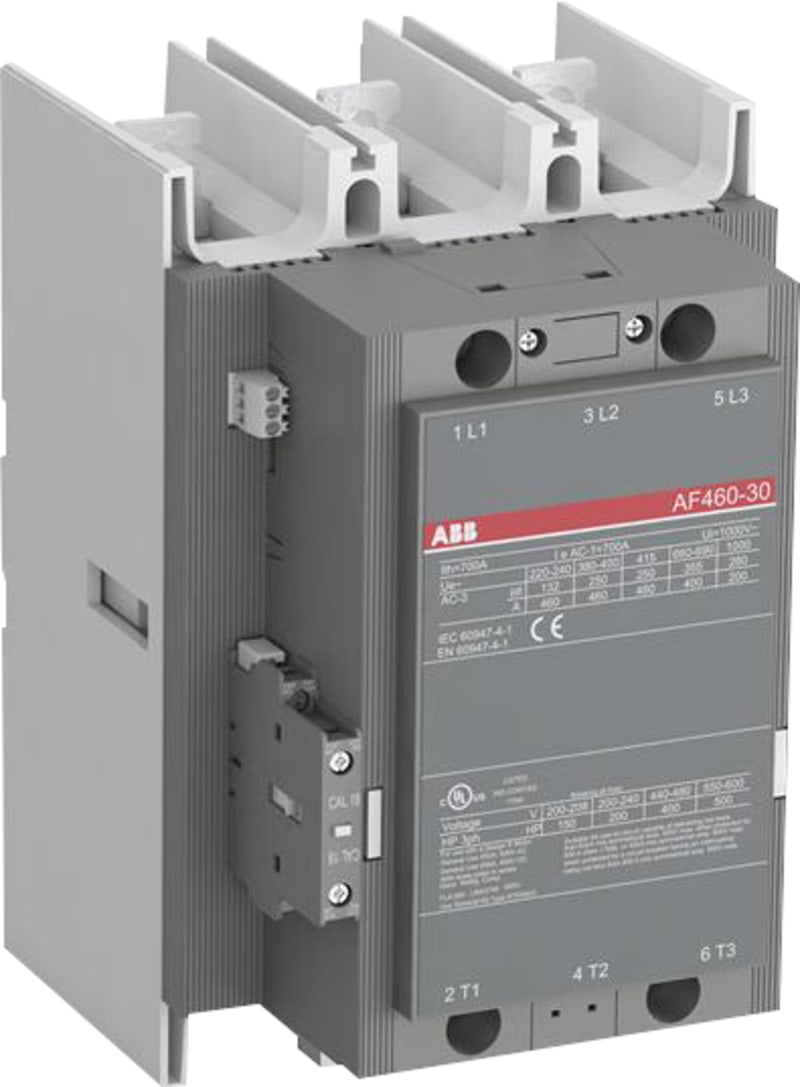

Contactor AF460-30-11 100-250V (AF460-30-11-70 (100-250V 50-60Hz / Dc))
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB Automasjon AF460-30-11-70 (100-250V 50-60HZ / DC) 3-pole contactor with AC/DC control voltage.
Technical Specifications
- Manufacturer part number (MPN)
- AF460-30-11-70 (100-250V 50-60HZ / DC)
- EAN / GTIN
- 7320500217658
- HS code
- 8536.90
- Sales unit
- pcs
- Frequency
- 50/60 Hz
- Width
- 186 mm
- Height
- 278 mm
- Depth
- 216 mm
- Suitable for distribution board
- No
- Rated operation power at AC-3, 400 V
- 250 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 460 A
- Rated operation current Ie at AC-1, 400 V
- 700 A
- Rated control supply voltage AC 50 Hz
- 100–250 V
- Rated control supply voltage AC 60 Hz
- 100–250 V
- Rated control supply voltage DC
- 100–250 V
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 1000 V
- Operating voltage AC 60 Hz
- 1000 V
- Voltage type for actuating
- AC/DC
- Rated operation power NEMA
- 149.14 kW
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7320500217658
- SAP 1000083344
- Code 8833707
