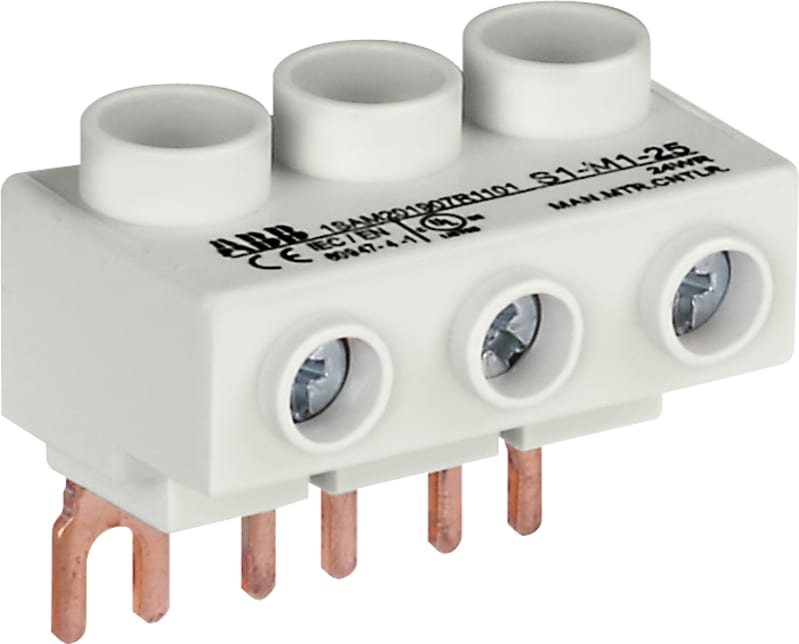

Feed Block S1-M1-25
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB S1-M1-25 — three phase feeder terminals allow the connection of bigger cable cross sections up to 25mm². They are usable with MS116 and MS132 manual motor starters and have a flat mounting form. The rated current is 65 A.
Technical Specifications
- Manufacturer part number (MPN)
- S1-M1-25
- EAN / GTIN
- 4013614400803
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Configuration Only
- No
- Country of Origin
- Finland
- Criticality
- No
- Lead Time
- 999 day
- Note
- No
- Product Availability Class
- Replaced
- Product Sales Status
- Active
- Replacement Part ID
- 68253349
- Storage Location
- 4001
- Product Net Width
- 44 mm
- Product Net Height
- 38 mm
- Product Net Depth / Length
- 25.5 mm
- Rated Operational Voltage
- 690 V AC; 250 V DC
- Rated Operational Current (I e )
- 65 A
- Number of Poles
- 3P
- Degree of Protection
- IP20
- Terminal Type
- Screw Terminals
- Connecting Capacity Main Circuit
- Flexible with Ferrule 1x 2.5 ... 16 mm²; Flexible with Insulated Ferrule 1x 2.5 ... 16 mm²; Flexible 1x 2.5 ... 16 mm²; Rigid 1x 2.5 ... 25 mm²
- Tightening Torque
- Main Circuit 2.5 N·m
- Wire Stripping Length
- Main Circuit 10 mm
- Recommended Screw Driver
- M3.5; Pozidriv 2
- Standards
- IEC/EN 60947-1; IEC/EN 60947-4-1; UL 60947-1; UL 60947-4-1
- Remarks
- Flat
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V AC
- Connecting Capacity Main Circuit UL/CSA
- Flexible 1x 14-6 AWG; Stranded 1x 14-4 AWG
- Tightening Torque UL/CSA
- Main Circuit 22 in·lb
- Ambient Air Temperature
- Operation -25 ... +70 °C; Storage -50 ... +80 °C
- Declaration of Conformity - CE
- 1SAD101100-3411
- Declaration of Conformity - UKCA
- 1SAD201100-3411
- UL Certificate
- E121190-20000619
- Object Classification Code
- X
- ETIM 9
- EC000275 - Main line branch terminal
- eClass
- V11.0 : 27400603
- UNSPSC
- 39121117
- IDEA Granular Category Code (IGCC)
- 4378 >> Phase buss bar
- E-Number (Finland)
- 3705939
- E-Number (Norway)
- 4364012
- E-Number (Sweden)
- 3111687
- EAN
- 4013614488184
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4013614400803
- SAP 1000225438
- Code 81139038
