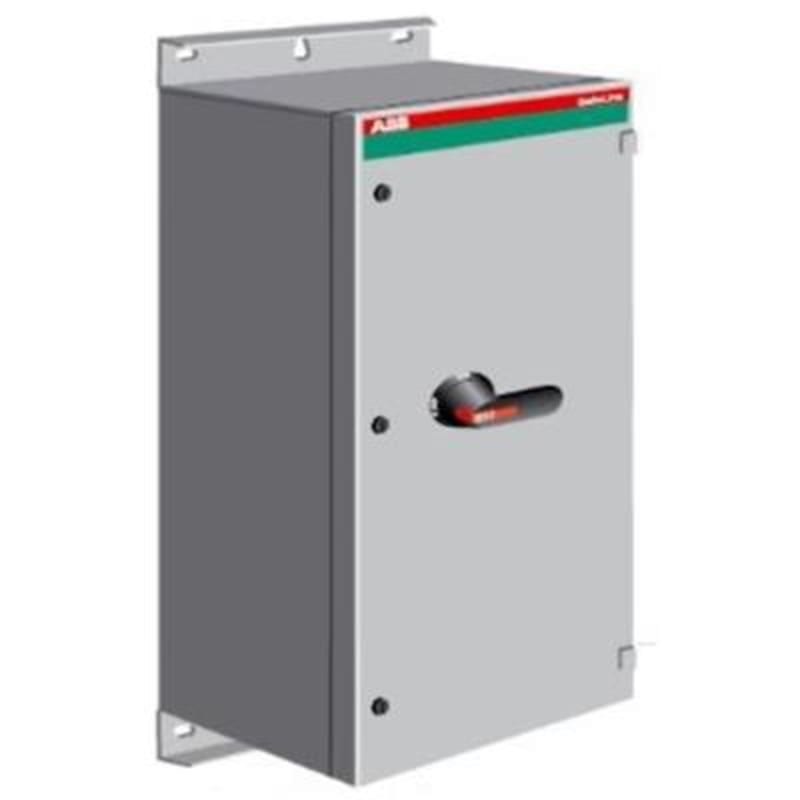

ABB OT400DUUR3TZ — EMC safety switch, 3-p. 415V AC23 400A, 220kW. Mounted auxiliary contact: 2NO1NC. Steel sheet enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosed switch is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallell cables. Cable entry types can be blank, ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is padlockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.

Manufacturer part number (MPN)

OT400DUUR3TZ

EAN / GTIN

6417019168326

Sales unit

pcs

IP rating

IP65

Degree of Protection

acc. to IEC 60529 IP65

Pollution Degree

3

Product Net Width

400 mm

Product Net Height

800 mm

Product Net Depth / Length

230 mm

Cable Entry Position

Bottom/Bottom

Cable Outlets Per Side

Blank / 4xring-flange, Knock-outs: 3x10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm

Color

RAL7032

Connecting Capacity Main Circuit

Hole Diameter 10 mm; Screw Clamp / PE Terminal 4pc 25 ... 120 mm²

Conventional Thermal Current (I the )

Fully Enclosed 400 A

Enclosure Material

Steel sheet

Handle Color

Black

Handle Type

Pistol

Impact Resistance Rating

Housing IK09

Maximum Mounted Auxiliary Contacts

2 NO, 2 NC

Mounted Auxiliary Contacts

2 NO, 1 NC

Neutral Type

No Neutral Terminal

Number of Auxiliary Contacts NC

1

Number of Auxiliary Contacts NO

2

Number of Poles

3P

Power Loss

at Rated Operating Conditions per Pole 10 W; Total 30 W

Rated Conditional Short-Circuit Current (I nc )

61.5 kA

Rated Insulation Voltage (U i )

750 V

Rated Operational Current AC-21A (I e )

(400 V) 400 A; (500 V) 400 A; (690 V) 400 A

Rated Operational Current AC-22A (I e )

(380 ... 415 V) 400 A; (500 V) 400 A; (690 V) 400 A

Rated Operational Current AC-23A (I e )

(380 ... 415 V) 400 A; (500 V) 400 A; (690 V) 400 A

Rated Operational Power AC-23A (P e )

(380 ... 415 V) 220 kW; (500 V) 280 kW; (690 V) 355 kW

Rated Operational Voltage

Main Circuit 1000 V

Rated Short-Circuit Making Capacity (I cm )

(1000 V AC) 65 kA

Rated Short-time Withstand Current Low Voltage (I cw )

for 1 s 15 kA; for 0.2 s 15 kA

Recommended Screw Driver

Main Circuit M10

Special Functions

EMC

Standards

IEC 60947-1, -3

Terminal Type

Bolt

Tightening Torque

Main Circuit 44 N·m

Declaration of Conformity - CE

1SCC340025D2704

Object Classification Code

Q

ETIM 9

EC000216 - Switch disconnector (low voltage)

ETIM 10

EC000216 - Switch disconnector (AC)

UNSPSC

39122205

IDEA Granular Category Code (IGCC)

5166 >> Safety switch

eClass

V11.1 : 27371403

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm)

E-Number (Finland)

3601780

E-Number (Norway)

1429461

E-Number (Sweden)

3141236

HS Code

8536.30
