ABB SACE Tmax XT3S 250 Moulded-Case Circuit Breaker — In=2500 A, 4-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT3S 250 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 2500 A, 4-pole, F/F (front, fixed) terminals. Breaking-capacity class S; rated ultimate short-circuit breaking capacity Icu = 50 kA at 415 V AC; rated operational voltage Ue 690 V AC; neutral pole rated 100% of In. Conforms to IEC/EN 60947-2. EAN 8015644021382, ABB/SAP material 1000669192, catalogue code 8366301.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT3 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT3S 250TMD 250-2500 4p FF InN=100%
- EAN / GTIN
- 8015644021382
- ABB / SAP material no.
- 1000669192
- Frame
- XT3 (250 A frame)
- Breaking-capacity class
- S
- Rated ultimate breaking capacity Icu (415 V AC)
- 50 kA
- Rated uninterrupted current In
- 2500 A
- Poles
- 4
- Neutral pole rating
- 100% of In
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8015644021382
- SAP 1000669192
- Code 8366301
Product Documentation
More from ABB
ABB
ABB OHBS2PJ Selector Handle
ABB
ABB OT16F4C 16A Manual Change-Over Switch, Handle and shaft need to be ordered separately, Open transition
ABB
MBK306 Terminal block module
2CPX041681R9999
ABB
Sumcurrentstrafo TR5 210mm
2CSG210100R1211
ABB

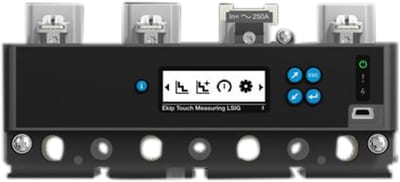

Ekip Touch LSI In=250A XT4 4P
