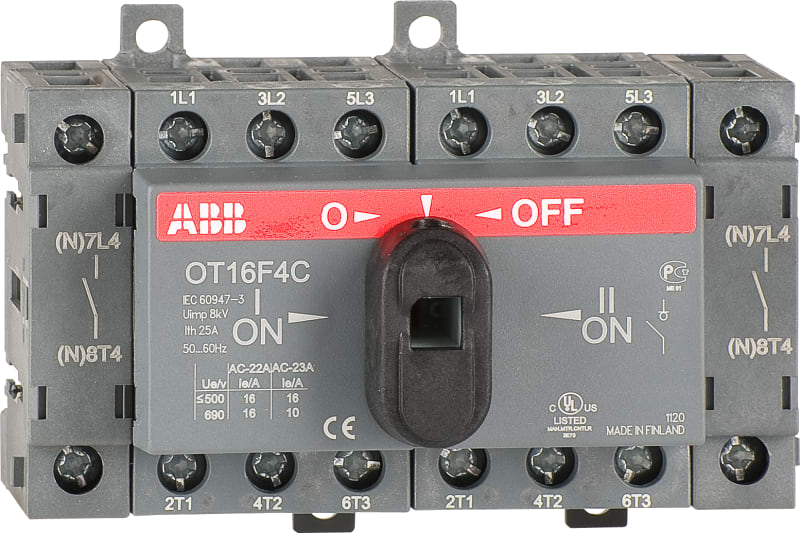

ABB OT16F4C 16A Manual Change-Over Switch, Handle and shaft need to be ordered separately, Open transition
Pricing
Request a quote
We reply within 24 hours
Overview
ABB OT16F4C 16A Manual Change-Over Switch, Handle and shaft need to be ordered separately, Open transition is listed under Switchgear & Protection / Disconnect Switches. Sales unit: pcs; Degree of Protection: Front IP20; Pollution Degree: 3; Product Net Width: 96 mm; 3.78 in; Product Net Height: 68 mm; 2.68 in; Product Net Depth / Length: 68 mm; 2.68 in.
Technical Specifications
- Manufacturer part number (MPN)
- OT16F4C
- EAN / GTIN
- 6417019389752
- Sales unit
- pcs
- Environmental Product Declaration - EPD
- 1SCC301272D0201
- Degree of Protection
- Front IP20
- Pollution Degree
- 3
- Product Net Width
- 96 mm; 3.78 in
- Product Net Height
- 68 mm; 2.68 in
- Product Net Depth / Length
- 68 mm; 2.68 in
- Cable Cross-Section
- 0.75 ... 10 mm²
- Conventional Free-air Thermal Current (I th )
- Θ = 40 °C 25 A
- Conventional Thermal Current (I the )
- Fully Enclosed 25 A
- Distance Between Phases
- Standard
- Fourth Pole Position
- Right Side
- Fourth Pole Type
- Switched - Simultaneous Function
- Handle Color
- Black
- Mounting Type
- Base mounting
- Number of Poles
- 4P
- Operating Mode
- Front
- Position of Line Terminals
- Top In - Bottom Out, Bottom In - Top Out
- Power Loss
- at Rated Operating Conditions per Pole 0.3 W
- Rated Impulse Withstand Voltage (U imp )
- 8 kV
- Rated Insulation Voltage (U i )
- 750 V
- Rated Operational Current AC-21A (I e )
- (380 ... 415 V) 16 A; (500 V) 16 A; (690 V) 16 A
- Rated Operational Current AC-22A (I e )
- (380 ... 415 V) 16 A; (500 V) 16 A; (690 V) 16 A
- Rated Operational Current AC-23A (I e )
- (380 ... 415 V) 16 A; (500 V) 16 A; (690 V) 10 A
- Rated Operational Power AC-23A (P e )
- (380 ... 415 V) 7.5 kW; (500 V) 7.5 kW; (690 V) 7.5 kW
- Rated Operational Voltage
- Main Circuit 750 V
- Rated Short-time Withstand Current Low Voltage (I cw )
- for 1 s 0.5 kiloampere rms
- Standards
- UL 98 / IEC60947-3
- Switches Operating Mechanism
- Mechanism on Top of the Switch
- Terminal Type
- Screw Terminals
- Tightening Torque
- acc. IEC 60947-1 0.8 N·m
- Transition Type
- Open
- Horsepower Rating UL/CSA
- (acc. to UL 200 V) 3 Hp; (acc. to UL 208 V) 3 Hp; (acc. to UL 240 V) 5 Hp; (acc. to UL 480 V) 10 Hp; (acc. to UL 600 V) 10 Hp
- Declaration of Conformity - CE
- 1SCC303019D2702
- DNV Certificate
- 1SCC303138D0201
- Object Classification Code
- Q
- ETIM 9
- EC000216 - Switch disconnector (low voltage)
- ETIM 10
- EC000216 - Switch disconnector (AC)
- UNSPSC
- 39122233
- IDEA Granular Category Code (IGCC)
- 5290 >> Disconnect switch
- eClass
- V11.1 : 27371403
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- E-Number (Finland)
- 3601423
- E-Number (Norway)
- 4363549
