Sumcurrentstrafo TR5 210mm
Pricing
Request a quote
We reply within 24 hours
Product Description

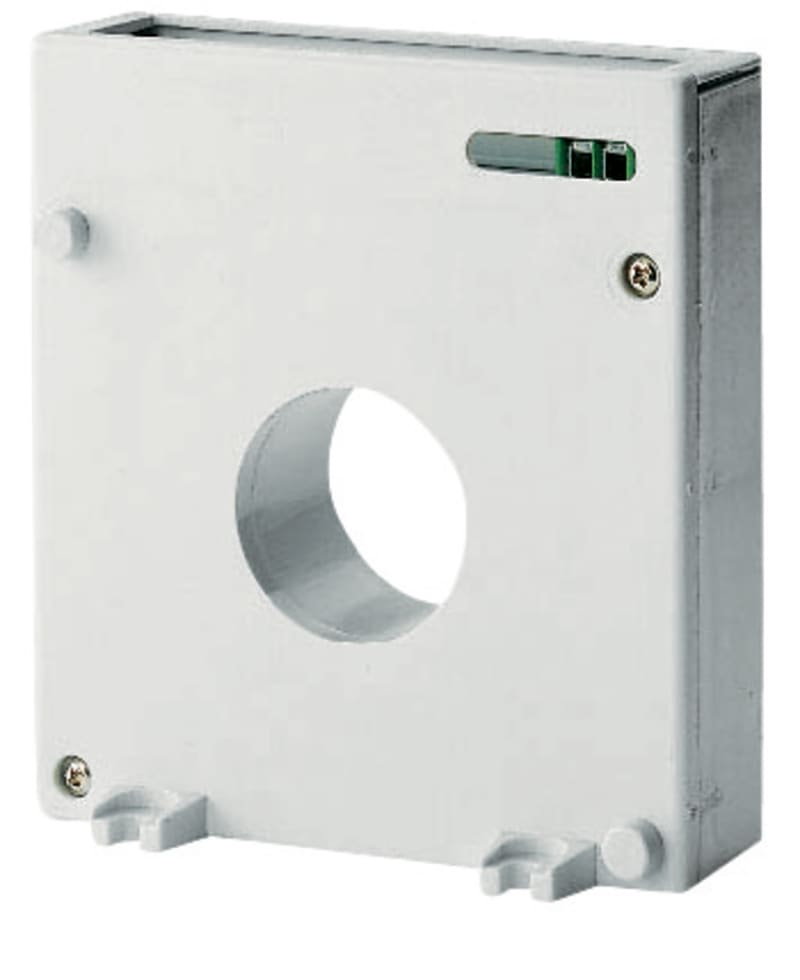

ABB 2CSG210100R1211 — Residual current monitors (RCMs) with external transformer can detect leakage currents. Through minidip you can set sensitivity and intervention time. According to the same diameter, transformers are made in a single version for all relay sensitivity values.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSG210100R1211
- EAN / GTIN
- 8012542024804
- Sales unit
- pcs
- Current Limit Function
- FS 5
- Apparent Power Output
- 200 V·A
- Secondary Output Connection
- Screw connection
- Model Number
- Through-feed current converter
- Number of Inputs
- Primary 1
- Product Net Width
- 0.290 m
- Product Net Height
- 0.310 m
- Product Net Depth / Length
- 0.055 m
- Inside Diameter
- 210 mm
- Declaration of Conformity - CE
- 9AKK106713A5628
- ETIM 9
- EC002048 - Current transformer
- UNSPSC
- 39121032
- eClass
- V11.0 : 27210902
- Object Classification Code
- F
- Model
- Through-feed current converter
- Rated primary current
- 16 A
- Rated secondary current
- 8 A
- Rated secondary apparent power
- 200 VA
- Accuracy class
- 0.5
- Overcurrent limiting factor
- FS 5
- Calibrated
- Yes
- With contact protection
- Yes
- Height opening
- 290 mm
- Width opening
- 290 mm
- Snap mounting
- No
- With copper rail
- No
- Number of primary inputs
- 1
- Secondary connection
- Screw connection
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 8012542024804
- SAP 1200640943
- Code 83055832
Product Documentation
