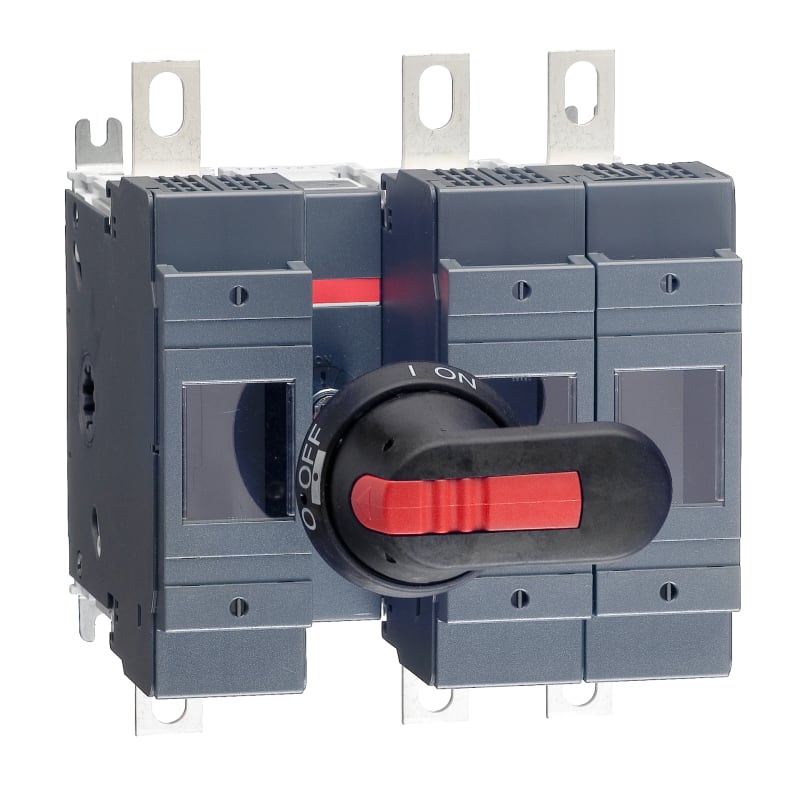

ABB Switch-disconnector fuse, 160A (200A with solid links), 3-Pole, DIN 00, front operated, handle and shaft included. 1SCA022820R9150

ABB 1SCA022820R9150 — Switch-disconnector fuse, 160A (200A with solid links), 3-pole, DIN 00, front operated, handle and shaft included.

Manufacturer part number (MPN)

1SCA022820R9150

EAN / GTIN

6417019280615

HS code

8536.90

Sales unit

pcs

ABB Site Meeting Group Waste To Landfill Target

UL 2799 Zero Waste To Landfill Validation available

End Of Life Disassembling Instructions

1SCC311049M0201

Environmental Product Declaration - EPD

1SCC311197D0201

Degree of Protection

acc. to IEC 60529 IP20

Pollution Degree

3

Product Net Width

219 mm

Product Net Height

182 mm

Product Net Depth / Length

198 mm

Conventional Free-air Thermal Current (I th )

Θ = 40 °C 200 A

Conventional Thermal Current (I the )

Fully Enclosed 200 A

Fuse Size

NH00

Fuse System

DIN

Handle Type

Pistol

Mounting Type

Base mounting

Number of Poles

3P

Operating Mode

Front

Position of Line Terminals

Top In - Bottom Out; Bottom In - Top Out

Power Loss

at Rated Operating Conditions per Pole 8 W; Total 24 W

Rated Conditional Short-Circuit Current (I nc )

(500 V) 100 kA; (690 V) 80 kA

Rated Current (I n )

Main Circuit 200 A

Rated Impulse Withstand Voltage (U imp )

12 kV

Rated Insulation Voltage (U i )

1000 V

Rated Operational Current AC-21A (I e )

(500 V) 200 A; (690 V) 200 A

Rated Operational Current AC-22A (I e )

(380 ... 415 V) 200 A; (500 V) 200 A; (690 V) 200 A

Rated Operational Current AC-23A (I e )

(380 ... 415 V) 200 A; (500 V) 200 A; (690 V) 200 A

Rated Operational Power AC-23A (P e )

(220 ... 240 V) 60 kW; (400 V) 110 kW; (415 V) 110 kW; (500 V) 132 kW; (690 V) 200 kW

Rated Operational Voltage

Main Circuit 690 V AC

Rated Short-time Withstand Current Low Voltage (I cw )

for 1 s 8 kiloampere rms

Standards

IEC 60947-3

Switches Operating Mechanism

12 (Between the Poles)

Terminal Type

Lug terminals

Terminal Width

20 mm

Tightening Torque

15 ... 22 N·m

A2L Certificate – IEC

1SCC311209D0201

ATEX Certificate

No certification needed

CCC Certificate

CCC OS200-250 2016

Declaration of Conformity - CE

1SCC311091D2704

DNV GL Certificate

1SCC311123D0203

UL Certificate

No certification needed

Object Classification Code

Q

ETIM 9

EC001040 - Fuse switch disconnector

UNSPSC

39122233

IDEA Granular Category Code (IGCC)

5291 >> Fuse switch disconnector

eClass

V11.1 : 27371401

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

E-Number (Norway)

1682604

HS Code

8536.90

• EAN 6417019280615
• SAP 1200640392
• Code 83057505
