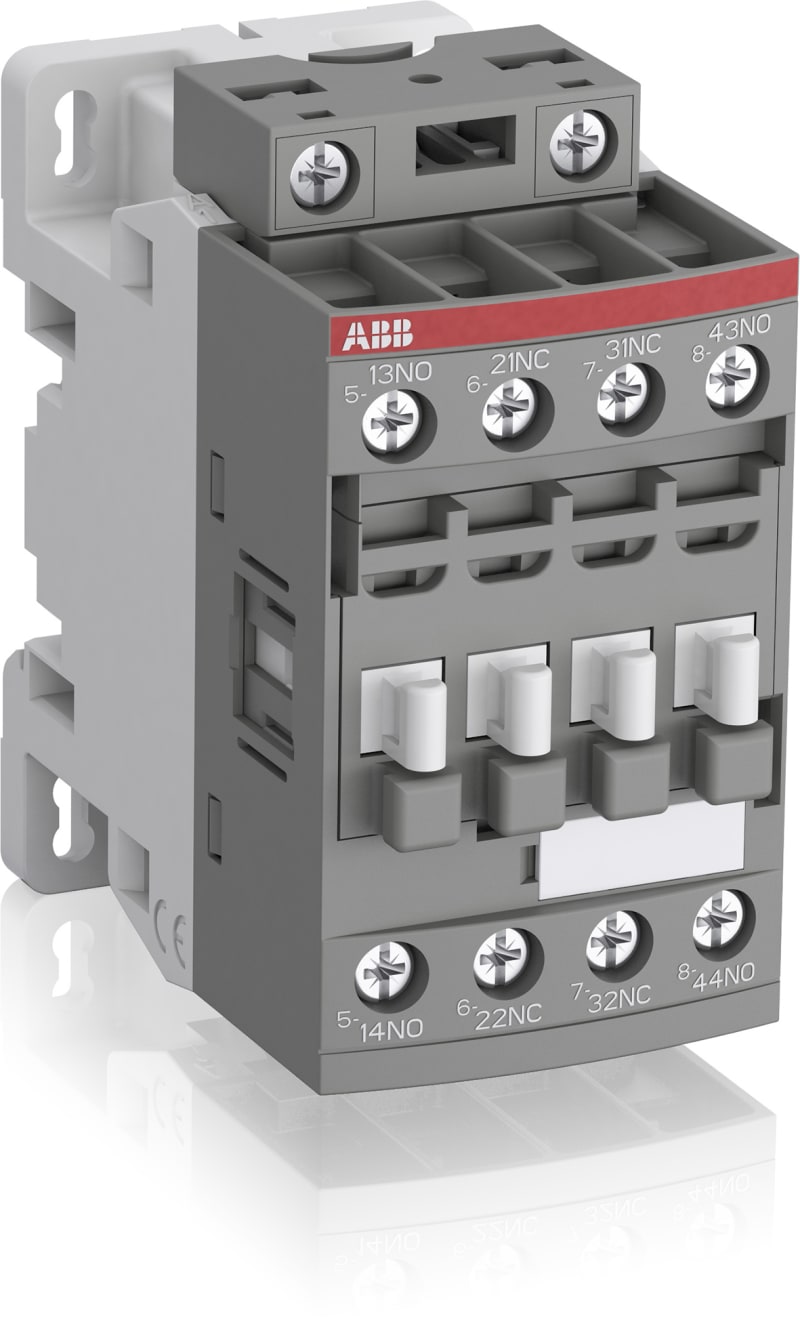

48-130V AC/DC NF22E-12

ABB NF22E-12 — The NF22E-12 is a 690 V IEC or 600 UL 4-pole contactor relay with screw terminals, used for switching auxiliary and control circuits.Thanks to the AF technology, the contactor relay has a wide control voltage range (48-130 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. NF contactor relays have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.These contactor relays include mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1 and are side-marked with the Mechanically Linked symbol.

Manufacturer part number (MPN)

NF22E-12

EAN / GTIN

3471523100121

Sales unit

pcs

Package quantity

54 pcs

Configuration Only

No

Country of Origin

Switzerland

Criticality

No

Lead Time

57 day

Note

No

Product Availability Class

On Request, Both availability and price will be quoted case by case. Check the replacement/alternative part

Product Sales Status

Active

Storage Location

4001

Product Net Width

45 mm

Product Net Depth / Length

77 mm

Product Net Height

86 mm

Number of Auxiliary Contacts NO

2

Number of Auxiliary Contacts NC

2

Number of Poles

4P

Standards

IEC/EN 60947-1, IEC/EN 60947-5-1, UL 60335-2-40 LZGH2 A2L, UL 508, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 14-13

Rated Operational Voltage

Auxiliary Circuit 690 V

Rated Frequency (f)

Auxiliary Circuit 50 / 60 Hz; Control Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (I th )

acc. to IEC 60947-5-1, Θ = 40 °C 16 A

Rated Operational Current AC-15 (I e )

(500 V) 2 A; (690 V) 2 A; (24 / 127 V) 6 A; (220 / 240 V) 4 A; (400 / 440 V) 3 A

Rated Operational Current DC-13 (I e )

(24 V) 6 A / 144 W; (48 V) 2.8 A / 134 W; (72 V) 1 A / 72 W; (110 V) 0.55 A / 60 W; (125 V) 0.55 A / 69 W; (220 V) 0.27 A / 60 W; (250 V) 0.27 A / 68 W; (400 V) 0.15 A / 60 W; (500 V) 0.13 A / 65 W; (600 V) 0.1 A / 60 W

Rated Short-time Withstand Current Low Voltage (I cw )

for 0.1 s 140 A; for 1 s 100 A

Rated Insulation Voltage (U i )

acc. to IEC 60947-5-1 690 V; acc. to UL/CSA 600 V

Rated Impulse Withstand Voltage (U imp )

6 kV

Maximum Electrical Switching Frequency

(AC-15) 1200 cycles per hour; (DC-13) 900 cycles per hour

Maximum Mechanical Switching Frequency

6000 cycles per hour

Rated Control Circuit Voltage (U c )

50 Hz 48 ... 130 V; 60 Hz 48 ... 130 V; DC Operation 48 ... 130 V

Power Loss

at 6 A per Pole 0.1 W

Operate Time

Between Coil De-energization and NC Contact Closing 13 ... 98 ms; Between Coil De-energization and NO Contact Opening 11 ... 95 ms; Between Coil Energization and NC Contact Opening 38 ... 90 ms; Between Coil Energization and NO Contact Closing 40 ... 95 ms

Mounting on DIN Rail

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting by Screws (not supplied)

2 x M4 Screws Placed Diagonally

Connecting Capacity Auxiliary Circuit

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²; Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²; Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²; Rigid Solid 1/2x 1 ... 2.5 mm²; Rigid Stranded 1/2x 1 ... 2.5 mm²

Connecting Capacity Control Circuit

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²; Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²; Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²; Rigid Solid 1/2x 1 ... 2.5 mm²; Rigid Stranded 1/2x 1 ... 2.5 mm²

Wire Stripping Length

Auxiliary Circuit 10 mm; Control Circuit 10 mm

Degree of Protection

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20; acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20

Tightening Torque

Auxiliary Circuit 1.2 N·m; Control Circuit 1.2 N·m

Terminal Type

Screw Terminals

Connecting Capacity Auxiliary Circuit UL/CSA

Rigid Solid 1/2x 18-14 AWG; Rigid Stranded 1/2x 18-14 AWG

Tightening Torque UL/CSA

Auxiliary Circuit 11 in·lb; Control Circuit 11 in·lb

Ambient Air Temperature

Close to Contactor for Storage -60 ... +80 °C; Near Contactor for Operation in Free Air -40 ... 70 °C

Climatic Withstand

Category B according to IEC 60947-1 Annex Q

Maximum Operating Altitude Permissible

Without Derating 3000 m

Resistance to Shock acc. to IEC 60068-2-27

Closed, Shock Direction: B1 25 g; Open, Shock Direction: B1 5 g; Shock Direction: A 30 g; Shock Direction: B2 15 g; Shock Direction: C1 25 g; Shock Direction: C2 25 g

Resistance to Vibrations

4g Closed Position & 2g Open position 5 ... 300 Hz

Pollution Degree

3

ABB EcoSolutions

Yes

ABB Site Meeting Group Waste To Landfill Target

No non-hazardous waste is sent to a landfill

EcoSolutions Profile

1SBC100156C0308

End Of Life Disassembling Instructions

1SBC101080M6801

Environmental Product Declaration - EPD

1SBD250584E3000

Improved Energy Efficiency for Customers

Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line

Recyclability Rate of the Product acc. to EN45555

Design for Closing Resource Loops - Standard EN45555 - 92.7 %

A2L Certificate – UL

9AKK108469A4900; 9AKK108469A4902

ABS Certificate

ABS_26-0348269-PDA_FR; ABS_26-0348269-PDA-DUP_CN

BV Certificate

BV_2634H24899C1

CB Certificate

CB_SE-117902

CCC Certificate

CCC_2024010303656666

Declaration of Conformity - CCC

CQC2011010303465426

Declaration of Conformity - CE

1SBD250005U1000

Declaration of Conformity - UKCA

1SBD250036U1000

DNV Certificate

DNV_TAE00001BV-5

LR Certificate

LRS_LR2003684TA-02

RINA Certificate

RINA_ELE142224XG

RMRS Certificate

RMRS_1802702280

UL Certificate

UL_20180227_E252354_2_1

UL Listing Card

UL_E252354

Object Classification Code

K

ETIM 7

EC000196 - Contactor relay

eClass

V11.0 : 27371001

UNSPSC

39121529

IDEA Granular Category Code (IGCC)

4763 >> Power contactor, DC switching

E-Number (Finland)

3706400

E-Number (Sweden)

3211447

HS Code

8536.49
