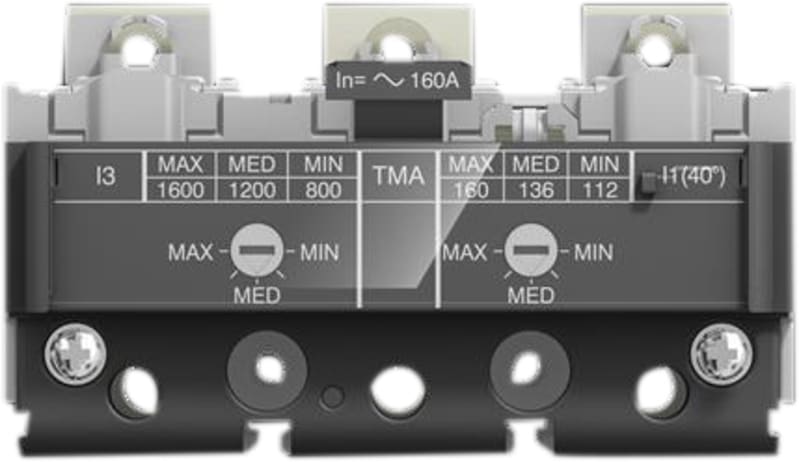

ABB 1SDA076538R1 Magnetic Release Three-POLE IN AC-DC MA Iu 160 I3=960...2240 A XT2
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 1SDA076538R1 Magnetic Release Three-POLE IN AC-DC MA Iu 160 I3=960...2240 A XT2 is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Environmental Information: 9AKK108467A6707; Product Main Type: Accessories for Tmax XT; Product Type: Accessory; Suitable For: XT2; Configuration Type: Loose or configurable.
Technical Specifications
- Manufacturer part number (MPN)
- 1SDA076538R1
- EAN / GTIN
- 8015644812737
- Sales unit
- pcs
- Number of poles
- 3P
- Environmental Information
- 9AKK108467A6707
- Circuit Breaker Type to be Associated
- Motor Protection
- Product Main Type
- Accessories for Tmax XT
- Product Type
- Accessory
- Suitable For
- XT2
- Configuration Type
- Loose or configurable
- Current Type
- AC/DC
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 16.15 W
- Rated Current (I n )
- 160 A
- Release
- MA
- Release Type
- M
- Standards
- IEC60947-2
- Data Sheet, Technical Information
- 1SDC210100D0206; 1SDC210099D0206
- Declaration of Conformity - CE
- Refer to the EU Declaration of the relative Circuit Breaker
- Instructions and Manuals
- 1SDH000721R0505
- ETIM 9
- EC001023 - Shunt release (for power circuit breaker)
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- eClass
- V11.1 : 27370418
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 8015644812737
- SAP 1200637634
- Code 83053599
