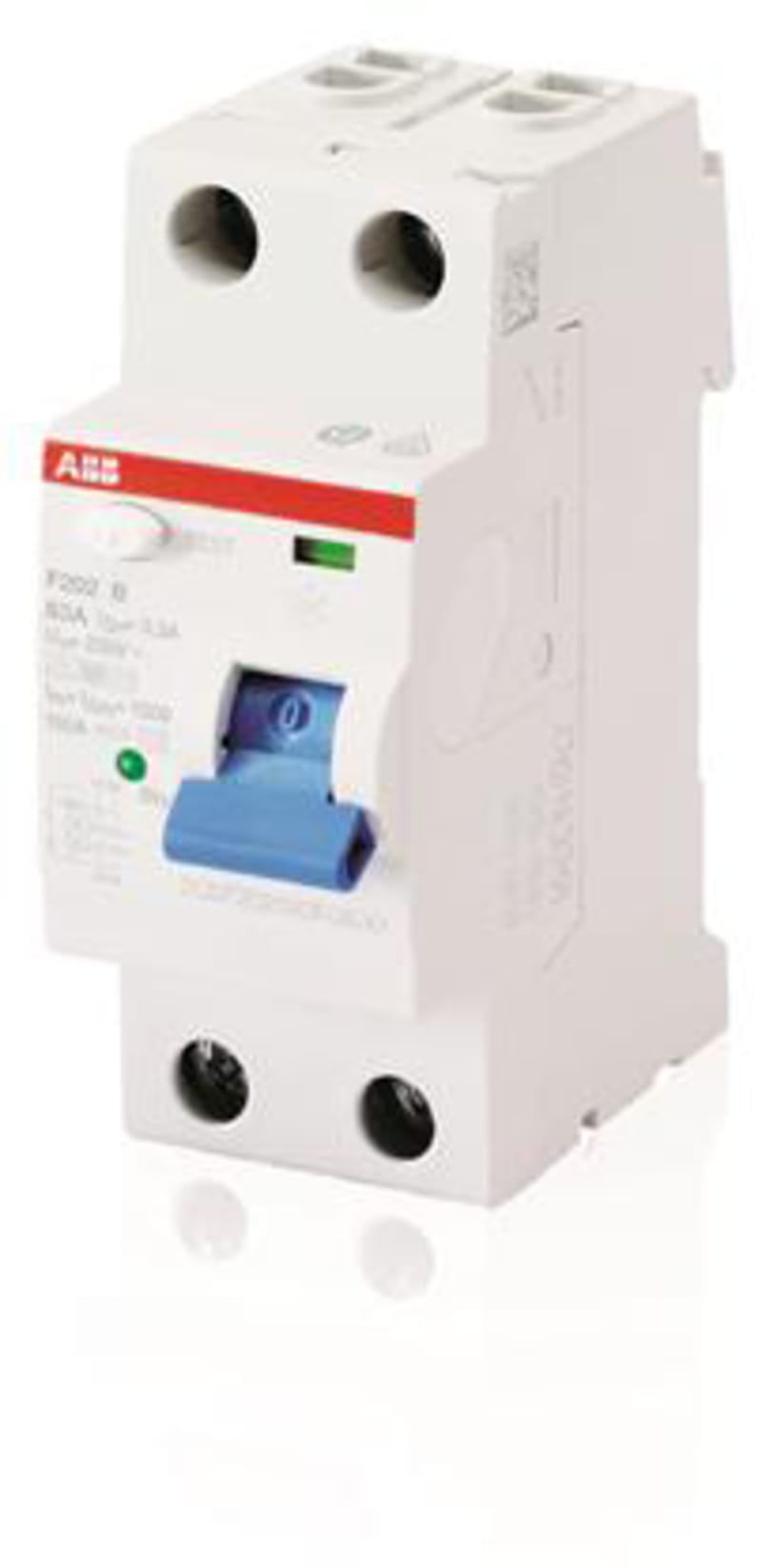

Residual Current Circuit Breaker F204 B S-63A/0,5

ABB 2CSF204892R4630 — The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product is particularly suitable for the protection against smooth d.c. earth fault currents.

Manufacturer part number (MPN)

2CSF204892R4630

EAN / GTIN

8012542347538

HS code

8536.90

Sales unit

pcs

Carbon Footprint (Full Lifecycle)

111.89318 kg CO₂ eq

EcoSolutions Profile

9AKK108469A3795

Recyclability Rate of the Product acc. to EN45555

Design for Closing Resource Loops - Standard EN45555 - 77.05 %

ABB Site Meeting Group Waste To Landfill Target

No non-hazardous waste is sent to a landfill; UL 2799 Zero Waste To Landfill Validation available

Sustainable Material Content in Packaging (wt. %)

Recycled Cardboard - 29.08 %; Recycled Cardboard - 61.23 %; Recycled Cardboard - 2.66 %; Recycled Paper - 0 %; Recycled Paper - 0 %

Extended Product Lifetime

Product Durability

Offered with Takeback Services

Take Back for Recycling

End Of Life Disassembling Instructions

9AKK108470A1744

Environmental Product Declaration - EPD

9AKK108468A5757

Type of Residual Current

Type B

Test Voltage (Out)

110 ... 253 V

Dielectric Test Voltage

2500 kV

Maximum Surge Current

5 kA

Leakage Current Type

B

Power Supply Connection

Arbitrary

Electrical Endurance

10000 cycle

Mechanical Endurance

20000 cycle

Number of Poles

4P

Number of Modular Spacings per DIN Rail

4

Operating Characteristic

Selective

Position of Neutral Terminals

Right

Tightening Torque

2.8 N·m

Accessory Type

Auxiliary contact; Signal contact/auxiliary contact; Shunt trip; Undervoltage release; Overvoltage release; Motor operating device; Auto reclosing unit

Housing Type

Insulation group I - II, RAL 7035

Screw Terminal Type

Failsafe Bi-directional Cylinder-lift Terminal

Actuator Material

Insulation Group II, Blue, Sealable

Options Provided

None

Accessories Available

Yes

Cable Size

25 mm²

Connecting Capacity

Busbar 10 mm²; Rigid 25 ... 25 mm²; Flexible 25 ... 25 mm²

Rated Cross-Section

4 - Multi-Wired 0...25 mm²; 1 - Solid-Core 25...25 mm²

Wire Stripping Length

12 mm

Terminal Type

Screw Terminals

Actuator Type

Toggle

Rated Voltage (U r )

230/400 V

Rated Operational Voltage

230 … 400 V AC

Rated Insulation Voltage (U i )

500 V

Rated Impulse Withstand Voltage (U imp )

4 kV

Input Voltage Type

AC

Rated Current (I n )

63 A

Rated Residual Current

500 mA

Rated Conditional Short-Circuit Current (I nc )

(Typ gG/gLfuse, 500 V) 100 A; Selective MCB S750-E 63A or S750DR-E/K 100 A

Frequency ( f )

50/60 Hz

Rated Frequency (f)

50/60 Hz

Power Loss

at Rated Operating Conditions per Pole 4.8 W; Total 17.9 W

RAL Number

RAL 7035 - Light Grey

Number of Modules

4

Ambient Air Temperature

Operation -25...+50 °C; Storage -40…+70 °C

Degree of Protection

Terminals IP20; Housing IP40

Pollution Degree

3

Environmental Conditions

28 cycle; with 55 °C / 90-96 %; and 25 °C / 95-100 %

Resistance to Vibrations

20 Cycles with Load 0.8 In: 1g or 0.1mm 5...150...5 Hz

Resistance to Shock acc. to IEC 60068-2-27

25g 2 shocks 13 ms

Environmental Information

Refer to RoHS

Width in Number of Modular Spacings

4

Product Net Width

70 mm

Product Net Height

85 mm

Product Net Depth / Length

69 mm

Built-In Depth ( t 2 )

69 mm

Dimension Diagram

9AKK106354A0759

EPLAN Data

9AAF619163_EPLAN

Declaration of Conformity - CE

9AKK106713A5610

Instructions and Manuals

9AKK107992A0195

Mounting Type

DIN-Rail

Mounting Position

Any

ETIM 9

EC000003 - Residual current circuit breaker (RCCB)

UNSPSC

39121601

eClass

V11.0 : 27142201

IDEA Granular Category Code (IGCC)

4875 >> Residual current circuit breaker (RCCB)

Object Classification Code

F

Standards

IEC/EN 61008-1, IEC/EN 61008-2-1, IEC/EN 62423

HS Code

8536.90

• EAN 8012542347538
