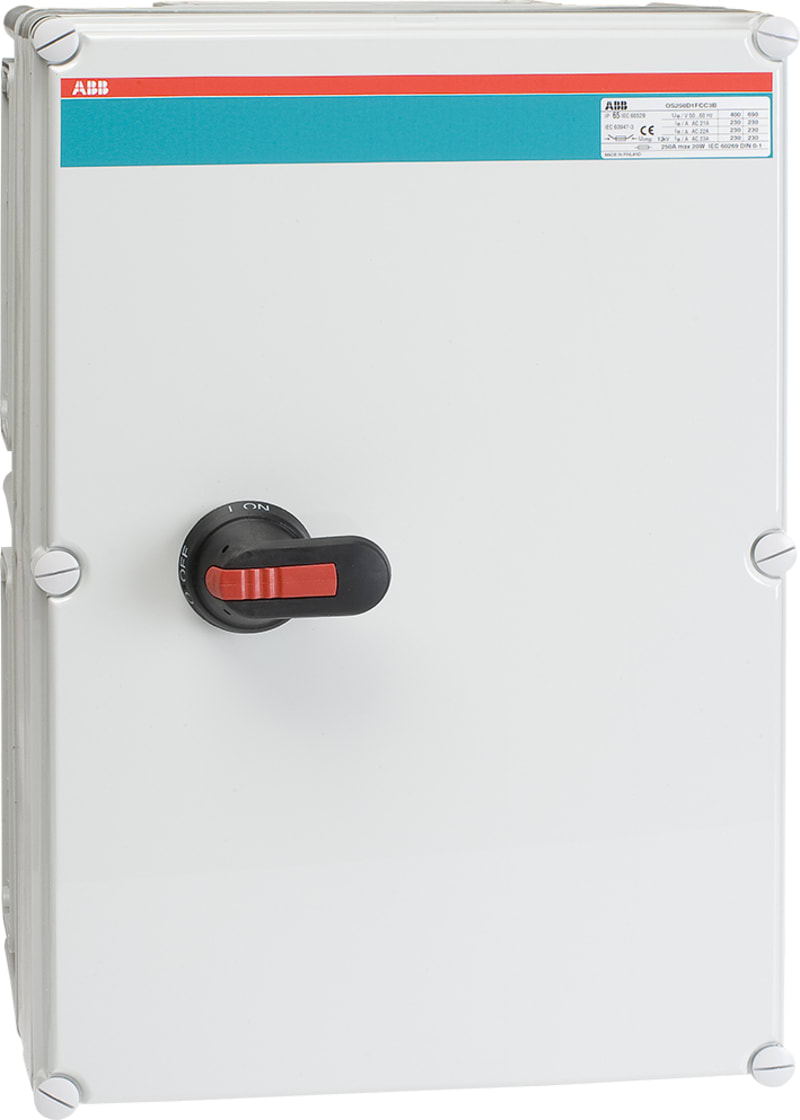

Safety Switch OT200 (OT200KFCC4T)

ABB OT200KFCC4T — Safety switch, 4-p. 415V AC23 200A, 110kW. Mounted auxiliary contact: 2NO1NC. Plastic enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosure in the OT series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries knock out types for II-flanges. Cables can be inserted from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be defeated. PE terminals included.

Manufacturer part number (MPN)

OT200KFCC4T

EAN / GTIN

6417019118338

Sales unit

pcs

Degree of Protection

acc. to IEC 60529 IP65

Pollution Degree

3

Product Net Width

380 mm

Product Net Height

560 mm

Product Net Depth / Length

180 mm

Cable Entry Position

Top/Bottom

Cable Outlets Per Side

II-flange / II-flange

Color

RAL7035

Connecting Capacity Main Circuit

Hole Diameter 8 mm; Screw Clamp / PE Terminal 2pc 10 ... 70 mm²

Conventional Thermal Current (I the )

Fully Enclosed 200 A

Enclosure Material

Plastic

Handle Color

Black

Handle Type

Pistol

Impact Resistance Rating

Housing IK08

Maximum Mounted Auxiliary Contacts

2 NO, 2 NC

Mounted Auxiliary Contacts

2 NO, 1 NC

Neutral Type

Switchable Neutral

Number of Auxiliary Contacts NC

1

Number of Auxiliary Contacts NO

2

Number of Poles

4P

Position of Line Terminals

Top In - Bottom Out

Position of PE Terminals

Top In - Bottom Out

Power Loss

at Rated Operating Conditions per Pole 4 W; Total 12 W

Rated Conditional Short-Circuit Current (I nc )

40.5 kA

Rated Insulation Voltage (U i )

750 V

Rated Operational Current AC-21A (I e )

(400 V) 200 A; (500 V) 200 A; (690 V) 200 A

Rated Operational Current AC-22A (I e )

(380 ... 415 V) 200 A; (500 V) 200 A; (690 V) 200 A

Rated Operational Current AC-23A (I e )

(380 ... 415 V) 200 A; (500 V) 200 A; (690 V) 200 A

Rated Operational Power AC-23A (P e )

(380 ... 415 V) 110 kW; (500 V) 132 kW; (690 V) 160 kW

Rated Operational Voltage

Main Circuit 1000 V

Rated Short-Circuit Making Capacity (I cm )

(1000 V AC) 30 kA

Rated Short-time Withstand Current Low Voltage (I cw )

for 1 s 8 kA; for 0.2 s 8 kA

Recommended Screw Driver

Main Circuit M8

Standards

IEC 60947-1, -3

Terminal Type

Bolt

Tightening Torque

Main Circuit 22 N·m

Declaration of Conformity - CE

1SCC340025D2704

Object Classification Code

Q

ETIM 9

EC000216 - Switch disconnector (low voltage)

ETIM 10

EC000216 - Switch disconnector (AC)

UNSPSC

39122205

IDEA Granular Category Code (IGCC)

5166 >> Safety switch

eClass

V11.1 : 27371403

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm)

E-Number (Norway)

1428977

E-Number (Sweden)

3135025

HS Code

8536.30

• EAN 6417019118338
• SAP 1200330392
• Code 82317265
