ABB SAGA Signalling Set, Blue LED, 1-6, 12-24 V AC/DC
Pricing
Request a quote
We reply within 24 hours
Product Description
The ABB 2TKA00004976 is a SAGA signalling set with a blue LED indicator addressed 1-6, powered from 12-24 V AC or DC. Housed in a signal-white (RAL 9003) enclosure of 71 x 36 x 71 mm at IP20, it provides visual status indication in domestic and light-commercial switching installations. Typical applications include call and status signalling in accessible housing schemes, hotels, and care facilities.
Technical Specifications
- Manufacturer part number (MPN)
- 2TKA00004976
- EAN / GTIN
- 6438199010960
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Instructions and Manuals
- 9AKK107992A5234
- Wiring Diagram
- 9AKK108469A5042; 9AKK108469A7253
- Degree of Protection
- IP20
- Environmental Information
- 9AKK108468A8205
- Number of Batteries
- 0
- Rated Voltage (U r )
- 12 ... 24 V AC
- Input Voltage Type
- AC/DC
- Design Range
- Saga
- RAL Number
- RAL 9003 - Signal White
- Color
- White
- Product Net Width
- 71 mm
- Product Net Height
- 36 mm
- Product Net Depth / Length
- 71 mm
- Dimension Diagram
- 9AKK108470A8358
- End Of Life Disassembling Instructions
- 9AKK108468A8205
- Environmental Product Declaration - EPD
- 9AKK108468A9854
- Declaration of Conformity - CE
- 9AKK10103A2355
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC002247 - Handicapped person element for domestic switching devices
- Model
- Signalling set
- Colour
- White
- Voltage type
- AC/DC
- Nominal voltage AC
- 12–24 V
- With transformer
- No
- Device width
- 71 mm
- Device height
- 36 mm
- Device depth
- 71 mm
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8531.20
Cross References
- EAN 6438199010960
- SAP 1200707785
- Code 83748681
Product Documentation
More from ABB
ABB
Switch FOR DIN-RAIL E211X-16-20
2CCA703110R0001
ABB
Residual Current Circuit Breaker F204 B S-63A/0,5
2CSF204892R4630
ABB
ABB Loose protection XT2, In=40A, 4 pole, EL, Ekip Hi-Touch LSI, Un=690 volt AC
Ekip Hi-Touch LSI In=40A XT2 4p
ABB
ABB SACE Tmax XT2L 160 Moulded-Case Circuit Breaker — Ekip LS/I, In=160 A, 3-Pole
XT2L 160 Ekip LS/I In=160A 3p FF
ABB

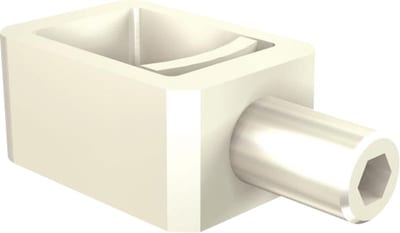

CuAl kl 1X70-185MM2 XT2, 4 pcs
KIT FC CUAL 1X70...185MM2 XT2 4PCS
ABB
ABB 1SDA104958R1 Undervoltage Release Wired 220...240V AC-220...250V DC FOR C.BREAKER Fixed-PLUG-IN XT5-XT6
ABB

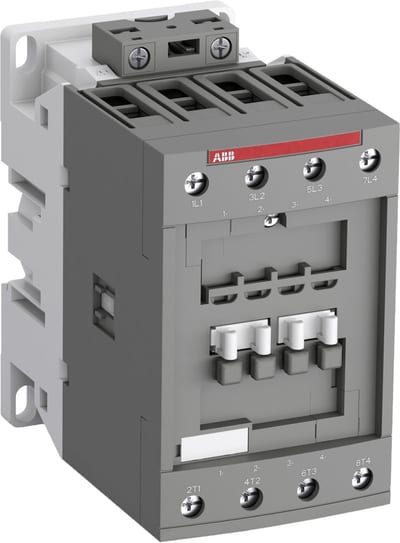

Contactor AF40-40-00-13 (AF40-40-00-13 100-250V50/60HZ-DC)
ABB
ABB APO iso-distributors. ADT11 Lid 600X370X80MM polycarbonate, transparentwith lid screws 4TBO851290C0100
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 2TKA00004976?
- 2TKA00004976 can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is 2TKA00004976.
- What is the HS code for 2TKA00004976?
- The customs tariff (HS) code for 2TKA00004976 is 8531.20.
- Who manufactures 2TKA00004976?
- 2TKA00004976 is a ABB product in the Electrical Components range.
- Is a datasheet available for 2TKA00004976?
- Yes — the 2TKA00004976 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 2TKA00004976?
- The minimum order quantity is 1.
- Is 2TKA00004976 available?
- Yes — 2TKA00004976 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
