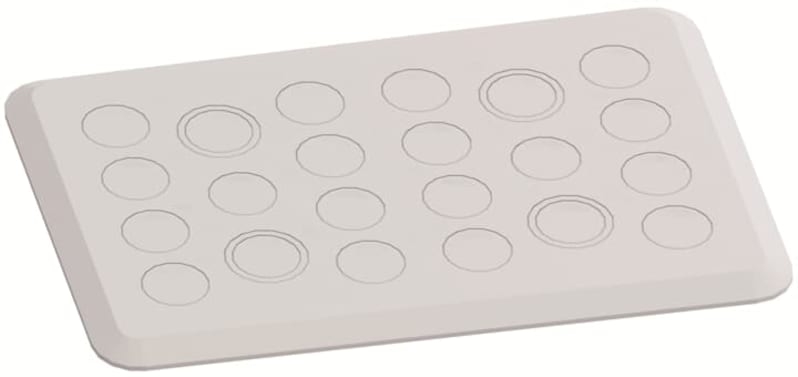

Flange TZ103 FOR M-Nipples IP55
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB TZ103 — Plastic flange with integrated gasket and two cable sleeves for M-screw joints, mounting without tools using locking gear; for 4 x M20 / M25, 22 x M20, suitable for TwinLine wall and standing cabinets.
Technical Specifications
- Manufacturer part number (MPN)
- TZ103
- EAN / GTIN
- 4011617104544
- Sales unit
- pcs
- IP rating
- IP55
- Model Number
- Other
- Number of Connection Holes
- 0
- Enclosure Type
- Flange
- Product Type
- Straight
- Thread Type
- Metric
- Accessories Available
- No
- Accessory Group
- Flange
- Number of Batteries
- 0
- Surface Finishing
- Untreated
- Material
- Plastic
- Product Net Width
- 223 mm
- Product Net Height
- 147 mm
- Product Net Depth / Length
- 20 mm
- Thickness
- 3 mm
- EPLAN Data
- 9AAC184273_EPLAN
- Declaration of Conformity - CE
- 2CPC100021X0201
- Instructions and Manuals
- 2CPC133967M5601
- ETIM 9
- EC000211 - Gland plate for enclosure/cabinet
- eClass
- V11.0 : 27142421
- Object Classification Code
- U
- Width
- 223 mm
- Height
- 147 mm
- Depth
- 20 mm
- Surface protection
- Untreated
- Pre-stamping
- Yes
- Type
- Straight
- Suitable for nominal thread metric/PG
- 20–25
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011617104544
- SAP 1200639050
- Code 83056827
Product Documentation
