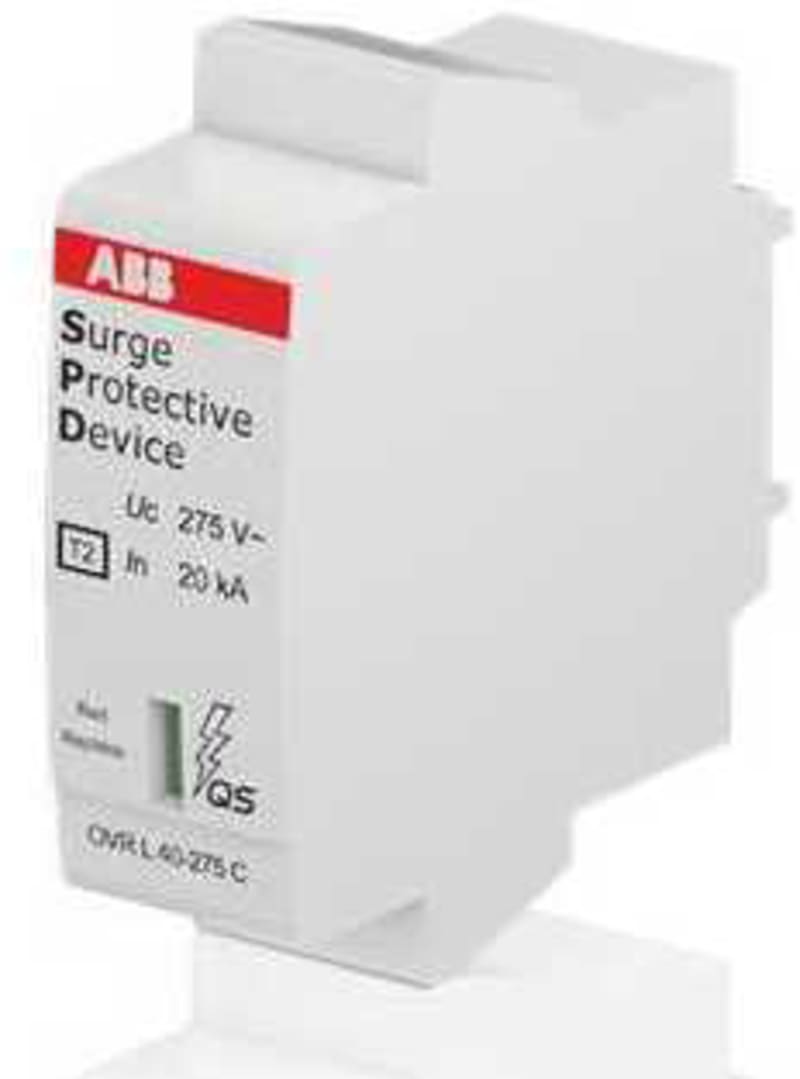

ABB 2CTB803876R1000 OVR T2 40-275 C QS Surge Protective Device
Part number2CTB803876R1000EAN / GTIN3660308520890HS code8535.40
Switchgear & Protection
Surge Protectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 2CTB803876R1000 OVR T2 40-275 C QS Surge Protective Device is listed under Switchgear & Protection / Surge Protectors. Sales unit: pcs; EcoSolutions Profile: 9AKK108472A3406; Impulse Current: I (imp, 10 / 350 µs, L-N) 2 kA; Short Circuit Withstand Icc: 100 kA; Arrester Class: II; Transmission Standard: Optic.
Technical Specifications
- Manufacturer part number (MPN)
- 2CTB803876R1000
- EAN / GTIN
- 3660308520890
- Sales unit
- pcs
- Carbon Footprint (Full Lifecycle)
- 8.897472 kg CO₂ eq
- EcoSolutions Profile
- 9AKK108472A3406
- Type of Low Voltage Distribution System
- TT; TN-C; TN-S
- Suitable For
- To protect the systems against the transient overvoltages (lightning)
- Nominal AC Voltage of the System (U o )
- 230 / 400 V
- Maximum Continuous Operating Voltage (U c )
- (L-PE) 275 V
- Temporary Overvoltage Test Value (U T )
- 337 V
- Rated Service Short-Circuit Breaking Capacity (I cs )
- 100 kA
- Discharge Current
- Nominal (8 / 20 µs) 20 kA; I (max, 8 / 20 µs) 40 kA
- Impulse Current
- I (imp, 10 / 350 µs, L-N) 2 kA
- Short Circuit Withstand Icc
- 100 kA
- Arrester Class
- II
- Number of Protected Poles
- 1
- Number of Poles
- 1P
- Number of Conductors
- 1
- Transmission Standard
- Optic
- Version
- Plug-in
- Product Type
- QS
- Options Provided
- Replacement Cartridge
- Preventive Maintenance Feature
- No
- Status Indicator
- Yes
- Fuse Size
- 4 modular spacing
- Cross-Section ( A cross )
- Maximum Conductor Solid-Stranded 25 mm²; Maximum Conductor Flexible 16 mm²
- Rated Voltage (U r )
- 230 V AC
- Voltage Protection Level ( Up)
- 1.25 kV; (L-N) 1.25 kV; (N-PE) 1.25 kV
- Degree of Protection
- IP20
- Maximum Operating Altitude Permissible
- Without Derating 5000
- Width in Number of Modular Spacings
- 1
- Product Net Width
- 17.6 mm
- Product Net Height
- 57 mm
- Product Net Depth / Length
- 55.6 mm
- CB Certificate
- 2CTC432024G1701
- CQC Certificate
- 9AKK107680A1974
- Declaration of Conformity - CE
- 9AKK108466A4410
- Instructions and Manuals
- 2CTC432097M1701
- Mounting Type
- DIN-Rail
- ETIM 9
- EC000941 - Surge protection device for power supply systems
- UNSPSC
- 39121610
- eClass
- V11.0 : 27130805
- Object Classification Code
- 141DCC
- Standards
- IEC 61643-11 / EN 61643-11
- System configuration
- TN-S
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN
- Yes
- System configuration TN-C
- No
- System configuration TT
- No
- System configuration other
- No
- Nominal discharge surge current (8/20)
- 20 kA
- Max. discharge surge current (8/20)
- 20 kA
- Short-circuit-proof
- Yes
- Nominal voltage AC
- 230 V
- Max. continuous voltage AC
- 275 V
- Max. continuous voltage DC
- 350 V
- Voltage protection level L-N
- 1.25 kV
- Voltage protection level N-PE
- 1.25 kV
- Max. overcurrent protection device, series connection (fuse)
- 125 A
- Short-circuit breaking capacity (Isccr)
- 100 kA
- Integrated short-circuit protection
- No
- Integrated backup fuse
- No
- Leakage-current free
- No
- Construction size
- 4 modular spacing
- Max. conductor cross section solid (solid, stranded)
- 25 mm²
- Max. conductor cross section flexible (fine-strand)
- 16 mm²
- With remote signalling contact
- No
- Signalling at the device
- Optical
- Category type 2
- Yes
- Country of origin
- Bulgaria
Standards & Compliance
- HS Code
- 8535.40
Cross References
- EAN 3660308520890
- SAP 1000702023
- Code 8419483
Product Documentation
