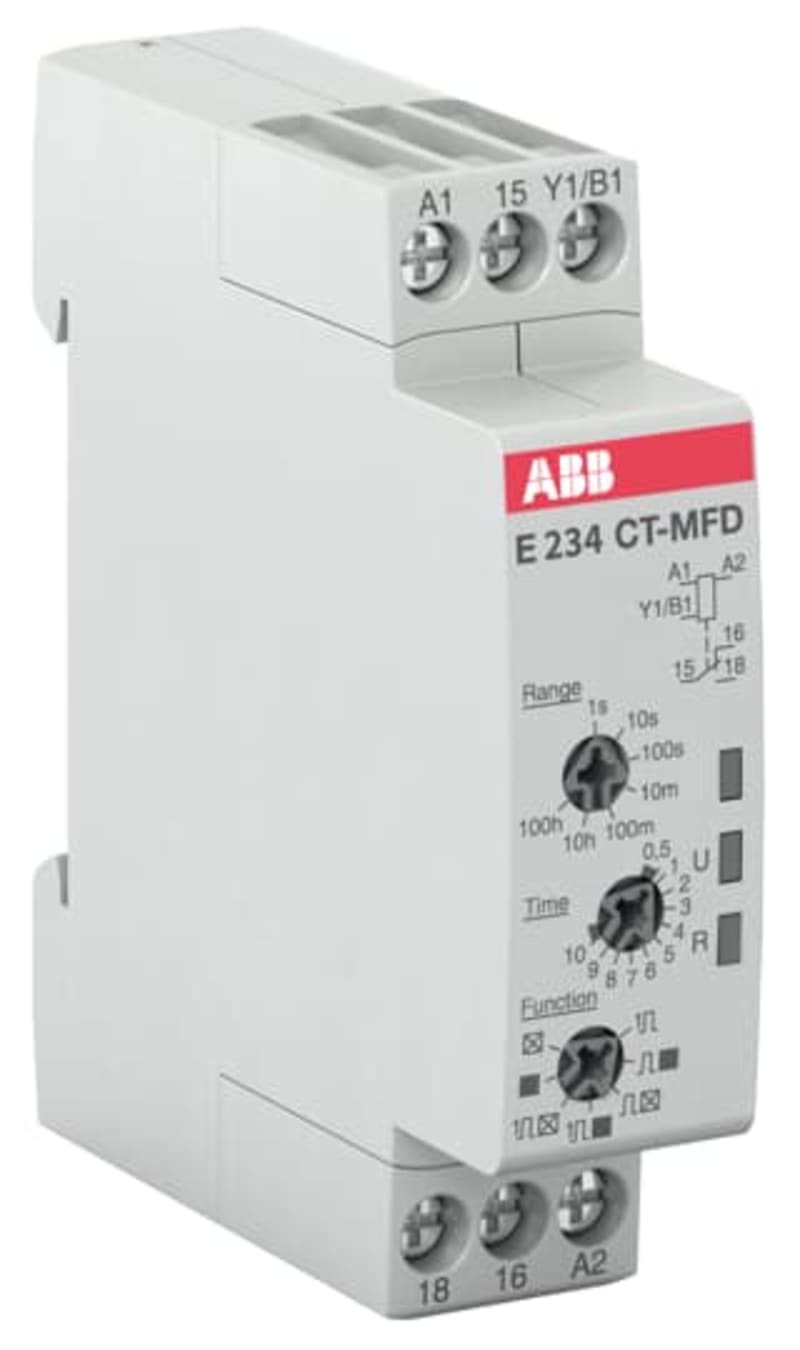

TIME Relay CT-MFD.12

ABB 1SVR500020R0000 — The CT-MFD.12 is a multifunction electronic time relay from the CT-D timer range. It provides 7 timing functions with 7 time ranges from 0.05 s to 100 h. This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 1 c/o (SPDT) output rated at 250 V / 6 A. A control input works with voltage-related (non-floating) triggering.

Manufacturer part number (MPN)

1SVR500020R0000

EAN / GTIN

4013614350634

HS code

8536.90

Sales unit

pcs

Country of Origin

Bulgaria

Lead Time

56 day

Product Sales Status

Inactive

Product Net Width

17.5 mm

Product Net Height

70 mm

Product Net Depth / Length

63 mm

Timer Relay Type

ON-Delay; OFF-Delay; Impulse ON; Impulse OFF; Flasher Starting with ON; Flasher Starting with OFF; Pulse Former

Time Range

0.05 s ... 100 h

Rated Control Supply Voltage (U s )

24 ... 240 V AC; 24 ... 48 V DC

Rated Operational Voltage

Auxiliary Circuit 250 V

Rated Frequency (f)

50 / 60 Hz; DC

Output

1 C/O (SPDT) Contact

Terminal Type

Screw Terminals

Rated Operational Current AC-12 (I e )

(230 V) 6 A

Rated Operational Current AC-15 (I e )

(230 V) 3 A

Rated Operational Current DC-12 (I e )

(24 V) 6 A

Rated Operational Current DC-13 (I e )

(24 V) 2 A

Rated Impulse Withstand Voltage (U imp )

Input Circuit 4 kV

Rated Insulation Voltage (U i )

Input Circuit / Output Circuit 300 V

Degree of Protection

Housing IP50; Terminals IP20

Overvoltage Category

III

Pollution Degree

3

Short-Circuit Protective Devices

Output Circuit NC - F Type Fuses 6 A; Output Circuit NO - F Type Fuses 10 A

Connecting Capacity

Flexible 1x 0.5 ... 2.5 mm²; Flexible 2x 0.5 ... 1.5 mm²; Rigid 1x 0.5 ... 4 mm²; Rigid 2x 0.5 ... 1.5 mm²

Tightening Torque

0.5 ... 0.8 N·m

Wire Stripping Length

7 mm

Recommended Screw Driver

0.8 x 4; Pozidriv 1

Mounting Position

1 ... 6

Mounting on DIN Rail

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Standards

CAN/CSA C22.2 No.14; IEC/EN 63000; IEC/EN 61812-1; UL 508

Maximum Operating Voltage UL/CSA

Output Circuit 300 V AC

Contact Rating UL/CSA

C300

Connecting Capacity UL/CSA

Flexible 1x 18-14 AWG; Flexible 2x 18-16 AWG; Rigid 1x 20-12 AWG; Rigid 2x 20-16 AWG

Tightening Torque UL/CSA

4.43 ... 7.08 in·lb

Pilot Duty UL/CSA

C300

Flammability According to UL94

V-2

Ambient Air Temperature

Operation -20 ... +60 °C; Storage -40 ... +85 °C

Maximum Operating Altitude Permissible

Without Derating 2000 m

CCC Certificate

CCC_2019010303150608

cULus Certificate

cULus_20031209-E140448

Declaration of Conformity - CCC

2020980303000209

Declaration of Conformity - CE

1SVD981010-00

Declaration of Conformity - UKCA

1SVD981010-10

Object Classification Code

K

ETIM 7

EC001439 - Timer relay

eClass

V11.0 : 27371605

UNSPSC

39122329

E-Number (Finland)

2712639

E-Number (Norway)

4364060

E-Number (Sweden)

4033001

HS Code

8536.90

• EAN 4013614350634
• SAP 1000222659
• Code 8115379
