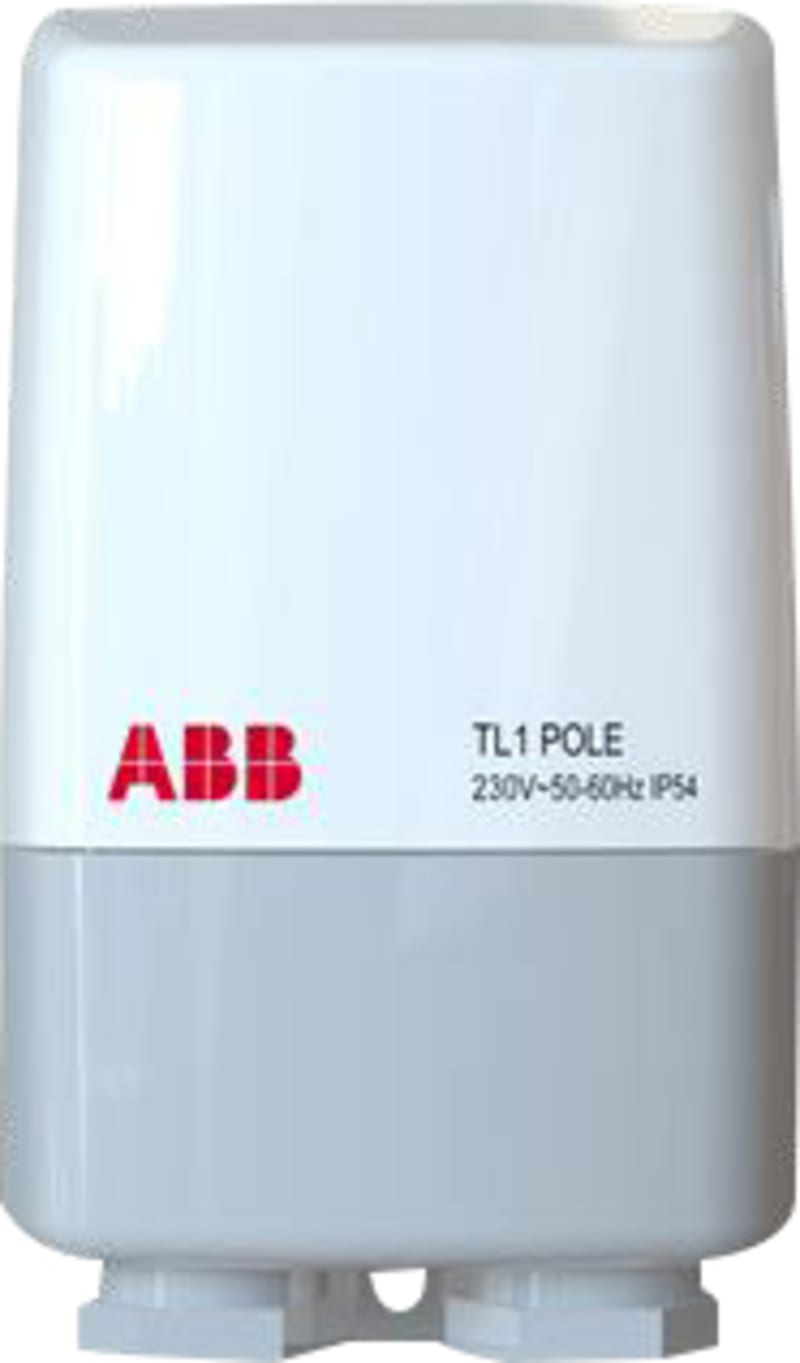

ABB 2CSM229911R1341 TL1 POLE Twiligt switches for pole mounting
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 2CSM229911R1341 TL1 POLE Twiligt switches for pole mounting is listed under Electrical Components. HS code: 8536.90; Sales unit: pcs; Function: Twilight; Power Supply: 110 ... 230 V AC; Tightening Torque: 1.2 N·m; Delay Time ( &rope; ): On 22.5 ... 27.5 s; Off 31.5 ... 38.5 s.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSM229911R1341
- EAN / GTIN
- 8012542299110
- HS code
- 8536.90
- Sales unit
- pcs
- Function
- Twilight
- Power Supply
- 110 ... 230 V AC
- Number of Channels
- 1
- Tightening Torque
- 1.2 N·m
- Delay Time ( &rope; )
- On 22.5 ... 27.5 s; Off 31.5 ... 38.5 s
- Illuminance
- 2 … 200 lx
- Contact Type
- Normally Open (NO)
- Lamp Type
- LED
- Meter Type
- Analog
- Screw Type
- PZ1
- Lamp Color
- Red / Green
- Number of Batteries
- 0
- Cable Length
- 100 m
- Connecting Capacity
- Solid 6 mm²
- Terminal Type
- Screw Terminals
- Supply Voltage
- 110 ... 230 V AC
- Rated Frequency (f)
- 50 ... 60 Hz
- Maximum Switching Power
- 1000 W; 300 W; 300 W; 100 W
- Power Consumption (@P cons )
- 0.25 W; 0.8 W
- Power Loss
- Total 0.8 W
- Color
- White
- Ambient Air Temperature
- Operation -40 ... 70 °C; Storage -50 ... 80 °C
- Degree of Protection
- Housing IP20
- Product Net Width
- 35 mm
- Product Net Height
- 117 mm
- Product Net Depth / Length
- 70 mm
- Declaration of Conformity - CE
- 2CSC441016D2703
- Instructions and Manuals
- 9AKK107991A3020
- Wiring Diagram
- 9AKK107992A8258
- Mounting Type
- Wall Mounting
- ETIM 9
- EC000189 - Twilight switch
- UNSPSC
- 39122214
- eClass
- V11.0 : 27144011
- IDEA Granular Category Code (IGCC)
- 5208 >> Controller switch
- Object Classification Code
- K
- Standards
- EN 60669-1EN 60662-2-1EN 60730-1
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8012542299110
- SAP 1200452154
- Code 82520730
Product Documentation
