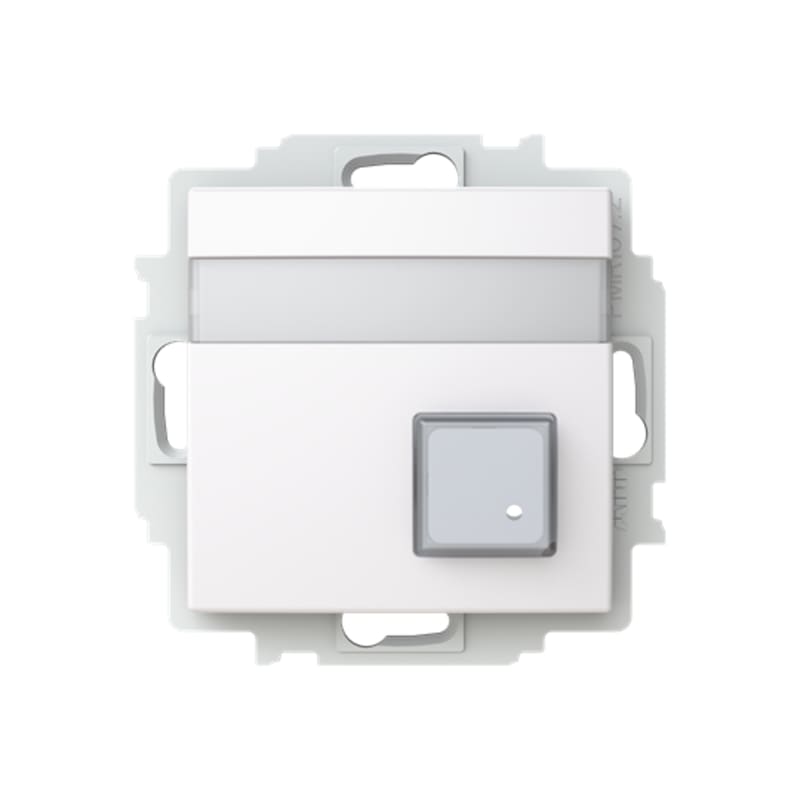

SAGA Signal PUSH-Button with Summer FIP1011
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2TKA00004977 — A device including a push button as well as a buzzer. The LED of the push button and the buzzer operates in parallel. The buzzer can be cancelled with the push button. When cancelled the LED remains on till the alarm goes off. Good marking possibilities on the push button and the name plate. Operating voltage 9,5 - 28 VAC / 9,5 - 35 V DC. Current consumption: 45 mA AC / 25 mA DC. Load capacity of the switch: 30 VAC / 35 VDC, 100 mA AC/DC, 3 VA / 3 W.
Technical Specifications
- Manufacturer part number (MPN)
- 2TKA00004977
- EAN / GTIN
- 6438199010977
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Instructions and Manuals
- 9AKK107492A2967
- Degree of Protection
- IP20
- Environmental Information
- 9AKK108468A8205
- Number of Batteries
- 0
- Rated Voltage (U r )
- 9.5 ... 28 V AC; 9.5 ... 35 V DC
- Input Voltage Type
- AC/DC
- Design Range
- Saga
- RAL Number
- RAL 9003 - Signal White
- Color
- White
- Product Net Width
- 71 mm
- Product Net Height
- 40 mm
- Product Net Depth / Length
- 71 mm
- Dimension Diagram
- 9AKK108470A8361
- End Of Life Disassembling Instructions
- 9AKK108468A8205
- Environmental Product Declaration - EPD
- 9AKK108468A7929
- Declaration of Conformity - CE
- 9AKK10103A2355
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC002247 - Handicapped person element for domestic switching devices
- Model
- Buzzer
- Colour
- White
- Voltage type
- AC/DC
- Nominal voltage AC
- 9.5–28 V
- Nominal voltage DC
- 9.5–35 V
- With transformer
- No
- Device width
- 71 mm
- Device height
- 40 mm
- Device depth
- 71 mm
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8531.20
Cross References
- EAN 6438199010977
- SAP 1200707786
- Code 83748677
Product Documentation
