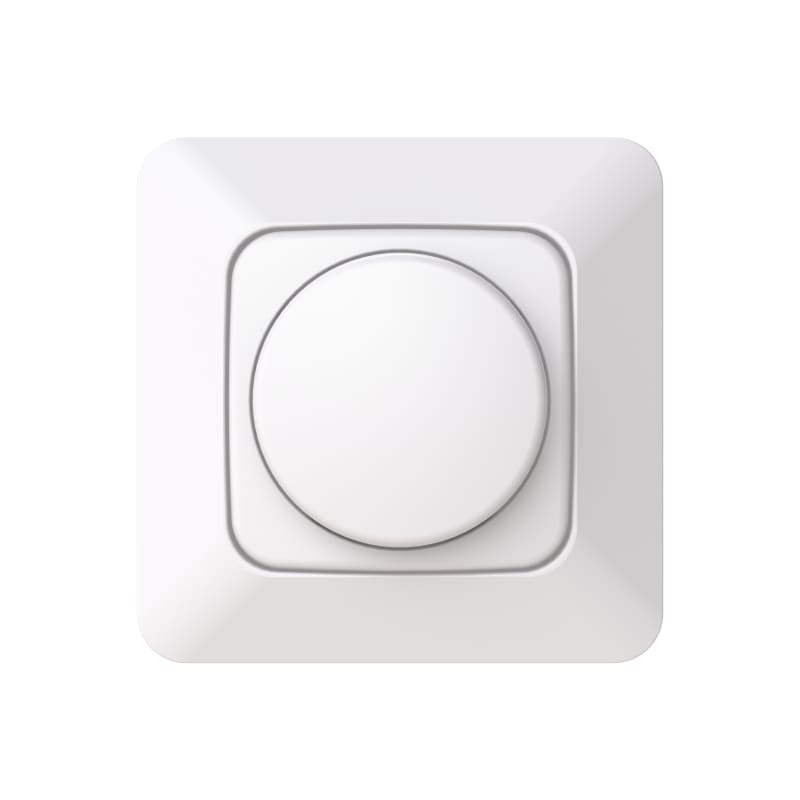

Jussi LED Dimmer VRI 2-200/360W/VA
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 6523 URJGL-214-104 Jussi LED dimmer LED rotary 2-200/360 W/VA, with frame, 6523 URJGL-214-104.
Technical Specifications
- Manufacturer part number (MPN)
- 6523 URJGL-214-104
- EAN / GTIN
- 4011395344088
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with central cover plate
- Method of operation
- Turn/push button
- Colour
- White
- Halogen free
- No
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Frequency
- 50–60 Hz
- Material quality
- Thermoplastic
- Type of load
- Universal and LED Retrofit
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Light value memory
- Yes
- Substation input
- No
- RAL-number (similar)
- 9010
- Serial dimmer
- No
- Applicable with movement sensor
- No
- Applicable with transmission button
- No
- Applicable with infrared button
- No
- Applicable with presence indicator
- No
- Applicable with button
- No
- Applicable with time switch/timer
- No
- Impact strength
- IK00
- Nominal voltage
- 230 V
- Control voltage
- 220–240 V
- Transparent
- No
- Surface finishing
- Glossy
- Suitable for degree of protection (IP)
- IP21
- Core cross section
- 1–2.5 mm²
- Device width
- 85 mm
- Device height
- 85 mm
- Device depth
- 44 mm
- IFTTT support available
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- Yes
- Min. depth of built-in installation box
- 20 mm
- App control via Bluetooth
- No
- Nominal power resistive load
- 2–100 W
- Nominal power inductive load
- 10–360 VA
- Nominal power capacitive load
- 2–100 VA
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Max. switching power LED
- 360 W
- Min. brightness controllable
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011395344088
- SAP 1200779622
- Code 83937673
Product Documentation
More from ABB
ABB

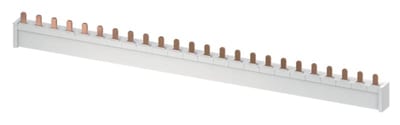

Rail 3-Phase S800-BB250
2CCS800900R0071
ABB

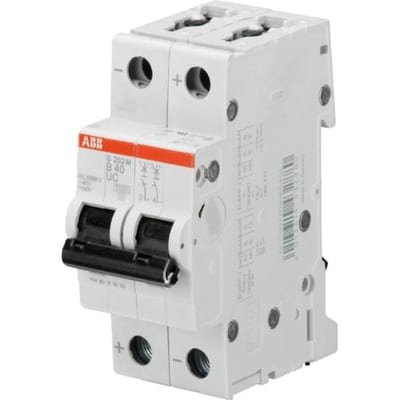

ABB S202M-C10 Miniature Circuit Breaker — 2P, Type C, 10 A, 10 kA
